Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3365/14SF 100CBL RIBN 14COND 0.05 GRAY 10' |
4,270 |
|
Datasheet | 3365 | Bulk | Discontinued at Digi-Key | Flat Cable | 14 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
.jpg)
|
3302/10 100CBL RIBN 10COND 0.05 MULTI 10' |
4,576 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3365/40 100CBL RIBN 40COND 0.05 GRAY 5' |
3,509 |
|
Datasheet | 3365 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/64 100CBL RIBN 64COND 0.05 GRAY 100' |
4,805 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 3.380" (85.85mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3756/26 100CBL RIBN 26COND 0.025 GRAY 5' |
4,497 |
|
Datasheet | 3756 | Bulk | Active | Flat Cable | 26 | 0.025" (0.64mm) | 5.0' (1.52m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 0.650" (16.51mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|
C3625/40 30MCBL RIBN 40COND 0.039 GRAY 3.28' |
3,070 |
|
Datasheet | 3625 | Bulk | Discontinued at Digi-Key | Flat Cable | 40 | 0.039" (1.00mm) | 3.28' (1000.00mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF539/40CBL RIBN 40COND 0.05 GRAY 1' |
2,084 |
|
Datasheet | HF539 | Box | Active | Flat Cable | 40 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

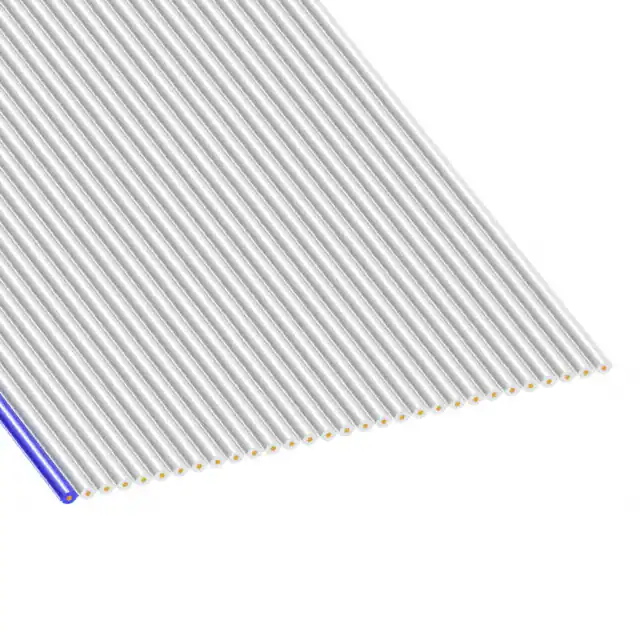

3609/30CBL RIBN 30COND 0.025 WHITE 100' |
2,847 |
|
Datasheet | 3609 | Spool | Active | Flat Cable | 30 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | - | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
HF319/16 (300')CBL RIBN 16COND 0.05 GRAY 1' |
2,980 |
|
Datasheet | HF319 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
90211/36SFCBL RIBN 36COND 0.025 GRAY 100' |
1,362 |
|
Datasheet | 90211 | Spool | Active | Flat Cable, Flat Jacket | 36 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Shielded | Gray | 0.100" (2.54mm) | 1.020" (25.91mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -20°C ~ 105°C | UL E42769 | Splice Free |
