Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF447/20 100'CBL RIBN 20COND 0.025 GRAY 1' |
2,956 |
|
Datasheet | HF447 | Box | Active | Flat Cable | 20 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.500" (12.70mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|

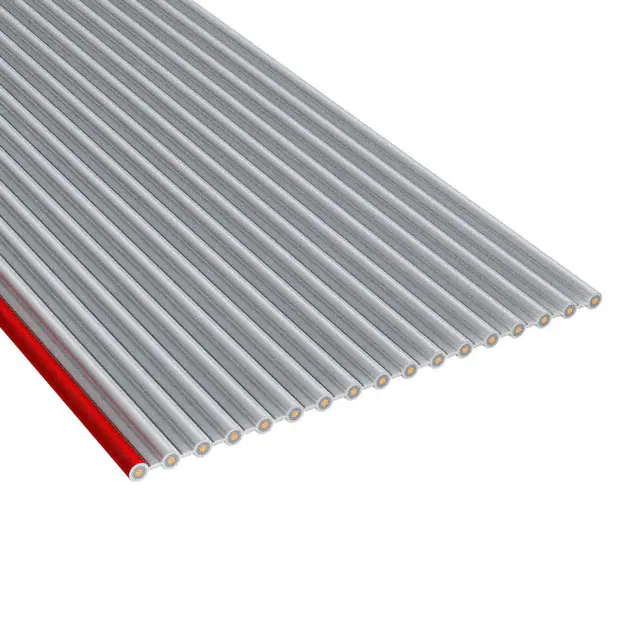

8125/17 100CBL RIBN 17COND 0.1 GRAY 100' |
2,805 |
|
Datasheet | 8125 | Spool | Active | Flat Cable | 17 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.054" (1.37mm) | 1.668" (42.37mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
HF365/18SFCBL RIBN 18COND 0.05 GRAY 1' |
4,156 |
|
Datasheet | HF365 | Box | Active | Flat Cable | 18 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.901" (22.88mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
.jpg)
|
3754/50 100CBL RIBN 50COND 0.025 GRAY 1' |
3,367 |
|
Datasheet | 3754 | Bulk | Active | Flat Cable | 50 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | - |
|
3319/15 100CBL RIBN 15COND 0.05 BLACK 100' |
3,366 |
|
Datasheet | 3319 | Spool | Active | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3896/20 275CBL RIBN 20COND 0.025 BLACK 1' |
2,472 |
|
Datasheet | 3896 | Bulk | Active | Flat Cable, Round Jacket | 20 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Black | - | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | Zippable |
|
8124/08 100CBL RIBN 8COND FLAT 0.1 GRAY 1' |
1,730 |
|
Datasheet | 8124 | Bulk | Active | Flat Cable | 8 | 0.100" (2.54mm) | 1.00' (304.80mm) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.060" (1.52mm) | 0.768" (19.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
.jpg)
|
3302/60 100SFCBL RIBN 60COND 0.05 MULTI 100' |
1,555 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|
3811/20 100CBL RIBN 20COND 0.05 MULTIPLE 1' |
1,583 |
|
Datasheet | 3811 | Bulk | Discontinued at Digi-Key | Flat Cable | 20 | 0.050" (1.27mm) | 1.00' (304.80mm) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
|
HF447/68 300'SFCBL RIBN 68COND 0.025 GRAY 300' |
2,250 |
|
Datasheet | HF447 | Spool | Active | Flat Cable | 68 | 0.025" (0.64mm) | 300.0' (91.44m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 1.700" (43.18mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | Splice Free |
