Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3319/10 100CBL RIBN 10COND 0.05 BLACK 100' |
2,292 |
|
Datasheet | 3319 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3759/60SOCBL RIBN 60COND 0.05 BLACK 300' |
1,714 |
|
Datasheet | 3759 | Spool | Active | Flat Cable, Round Jacket | 60 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 2.950" (74.93mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
|
|
SL90JA-1WN-BS2PCBL RIBN 2 PAIR |
4,694 |
|
- |
- | Spool | Active | - | - | - | 1000' (304.80m) | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HF659/30CBL RIBN 30COND 0.05 GRAY 275' |
1,329 |
|
Datasheet | HF659 | Spool | Active | Flat Cable, Round Jacket | 30 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | - | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Zippable |
|
HF447/14 100'CBL RIBN 14COND 0.025 GRAY 1' |
3,565 |
|
Datasheet | HF447 | Box | Active | Flat Cable | 14 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.350" (8.89mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
3355/34SFCBL RIBN 34COND 0.05 GRAY 100' |
4,838 |
|
Datasheet | 3355 | Spool | Active | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Thermoplastic Elastomer (TPE) | 300 V | - | - | -40°C ~ 105°C | UL Style 20297 | Splice Free, Zippable |
|
C3756/68 100CBL RIBN 68COND 0.025 GRAY 100' |
4,495 |
|
Datasheet | 3756 | Spool | Active | Flat Cable | 68 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 1.700" (43.18mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|
3759/64 300CBL RIBN 64COND 0.05 BLACK 300' |
2,961 |
|
Datasheet | 3759 | Spool | Active | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
|

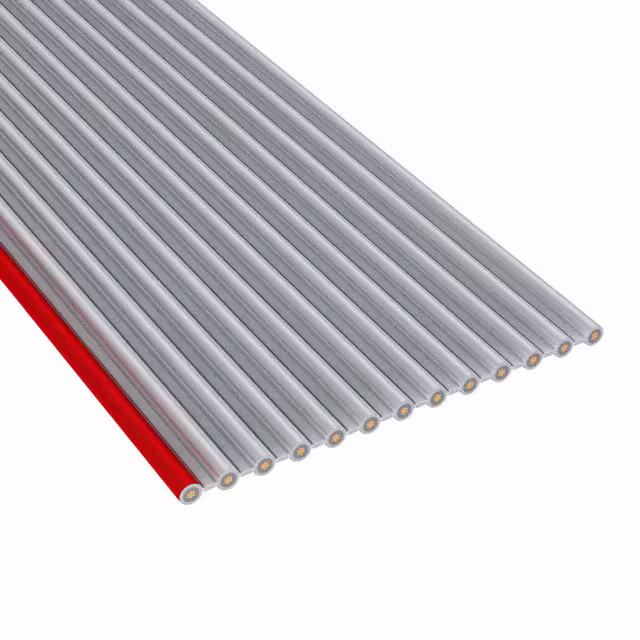

8125/13 100CBL RIBN 13COND 0.1 GRAY 100' |
4,321 |
|
Datasheet | 8125 | Spool | Active | Flat Cable | 13 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.054" (1.37mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
3625/22CBL RIBN 22COND 0.039 GRAY 98.4' |
3,722 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 22 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.866" (22.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
