Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
969M101-20-6-050CBL RIBN 6COND FLAT CLEAR 50' |
650 |
|
Datasheet | - | Bulk | Active | Flat Cable | 6 | - | 50.0' (15.24m) | 20 AWG | - | Unshielded | Clear | 0.120" (3.05mm) | 0.510" (12.95mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
MCZ-1000-1-025CBL RIBN 26COND BLUE YELLOW 25' |
150 |
|
Datasheet | EZ-Flexx™ | Bulk | Active | Flat Cable | 26 (13 Pair Twisted) | - | 25.0' (7.62m) | 22 AWG, 28 AWG | Solid | Shielded | Blue, Yellow | 0.190" (4.83mm) | 0.840" (21.34mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 165°C | - | - |
|
|
969M101-22-2TPS-025CBL RIBN 4COND FLAT CLEAR 25' |
295 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 (2 Pair Twisted) | - | 25.0' (7.62m) | 22 AWG | - | Shielded | Clear | 0.150" (3.81mm) | 0.270" (6.85mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
482W101-10-250CBL RIBN 10COND 0.025 CLEAR 250' |
250 |
|
Datasheet | - | Spool | Active | Flat Cable | 10 | 0.025" (0.64mm) | 250.0' (76.20m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.250" (6.35mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
|

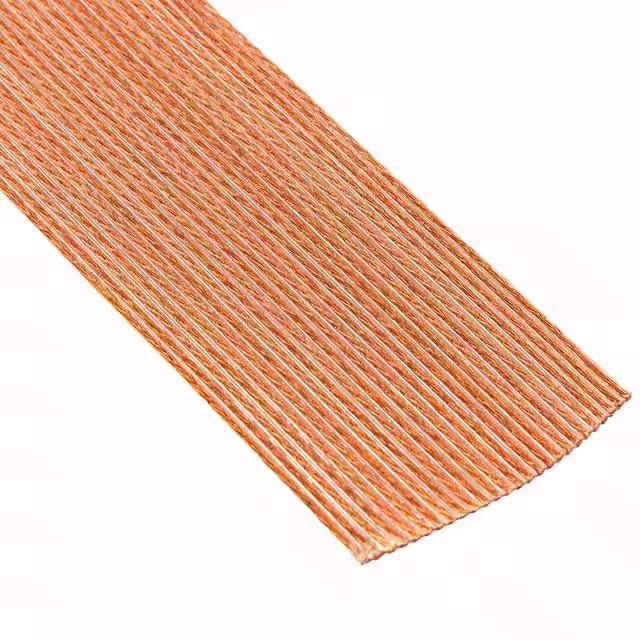

666K101-26CBL RIBN 26COND 0.039 CLEAR 500' |
2,000 |
|
Datasheet | - | Bulk | Active | Flat Cable | 26 | 0.039" (1.00mm) | 500.0' (152.40m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 1.024" (26.01mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|

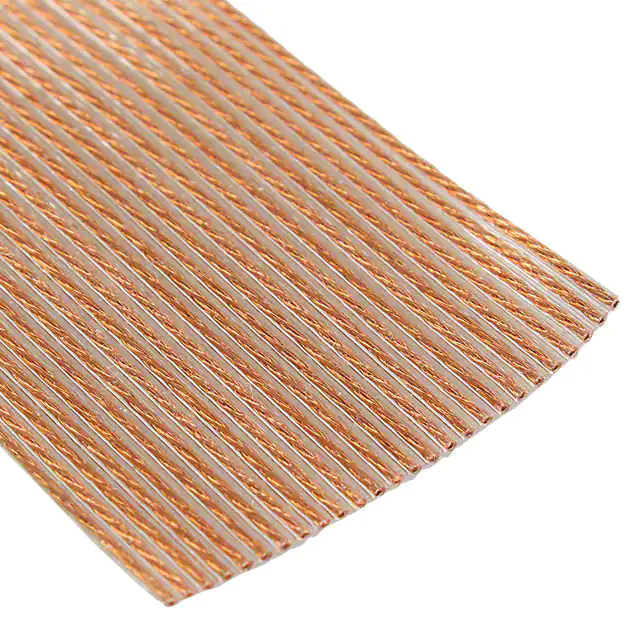

310J101-26CBL RIBN 26COND 0.05 CLEAR 500' |
1,000 |
|
Datasheet | - | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 1.300" (33.02mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
|
482W101-14-250CBL RIBN 14COND 0.025 CLEAR 250' |
250 |
|
Datasheet | - | Spool | Active | Flat Cable | 14 | 0.025" (0.64mm) | 250.0' (76.20m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.350" (8.89mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
|

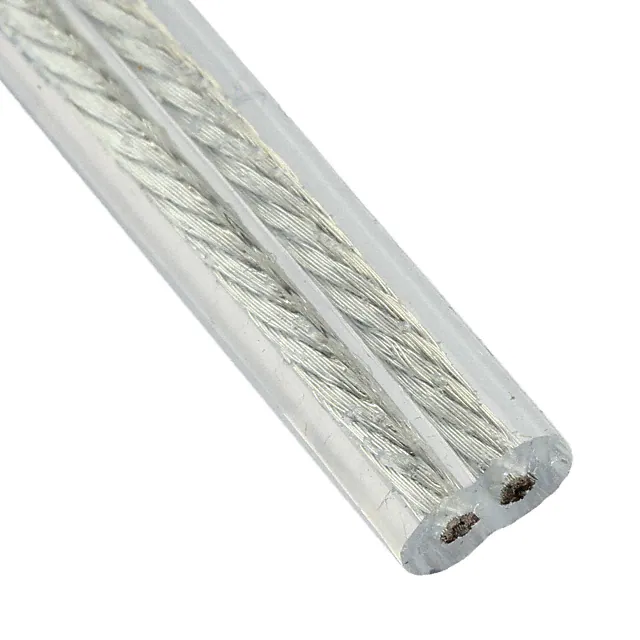

969M101-18-2CBL RIBN 2COND FLAT CLEAR 1000' |
1,000 |
|
Datasheet | - | Bulk | Active | Flat Cable | 2 | - | 1000' (304.80m) | 18 AWG | - | Unshielded | Clear | 0.141" (3.58mm) | 0.240" (6.09mm) | Flexx-Sil™ | 20 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
|
482W101-16-250CBL RIBN 16COND 0.025 CLEAR 250' |
250 |
|
Datasheet | - | Spool | Active | Flat Cable | 16 | 0.025" (0.64mm) | 250.0' (76.20m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.400" (10.16mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
|
482W101-20-250CBL RIBN 20COND 0.025 CLEAR 250' |
250 |
|
Datasheet | - | Spool | Active | Flat Cable | 20 | 0.025" (0.64mm) | 250.0' (76.20m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.500" (12.70mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
