Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
969M101-16-4-MCInerconnect Cable Assemblies |
3,617 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | - | 16 AWG | - | Unshielded | Clear | 0.150" (3.81mm) | 0.480" (12.19mm) | Perfluoroalkoxy (PFA) | 20 kV | - | - | -65°C ~ 165°C | - | - |
|
|
969M101-28-10-050CBL RIBN 10COND FLAT CLEAR 50' |
1,196 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 | - | 50.0' (15.24m) | 28 AWG | - | Unshielded | Clear | 0.080" (2.03mm) | 0.530" (13.46mm) | Flexx-Sil™ | 12 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
969M101-26-10-050CBL RIBN 10COND FLAT CLEAR 50' |
3,651 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 | - | 50.0' (15.24m) | 26 AWG | - | Unshielded | Clear | 0.090" (2.28mm) | 0.570" (14.48mm) | Flexx-Sil™ | 12 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
|
969M101-22-10-050CBL RIBN 10COND FLAT CLEAR 50' |
1,668 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 | - | 50.0' (15.24m) | 22 AWG | - | Unshielded | Clear | 0.110" (2.79mm) | 0.730" (18.54mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
|
969M101-24-12-050CBL RIBN 12COND FLAT CLEAR 50' |
4,387 |
|
Datasheet | - | Bulk | Active | Flat Cable | 12 | - | 50.0' (15.24m) | 24 AWG | - | Unshielded | Clear | 0.090" (2.28mm) | 0.740" (18.79mm) | Flexx-Sil™ | 12 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|

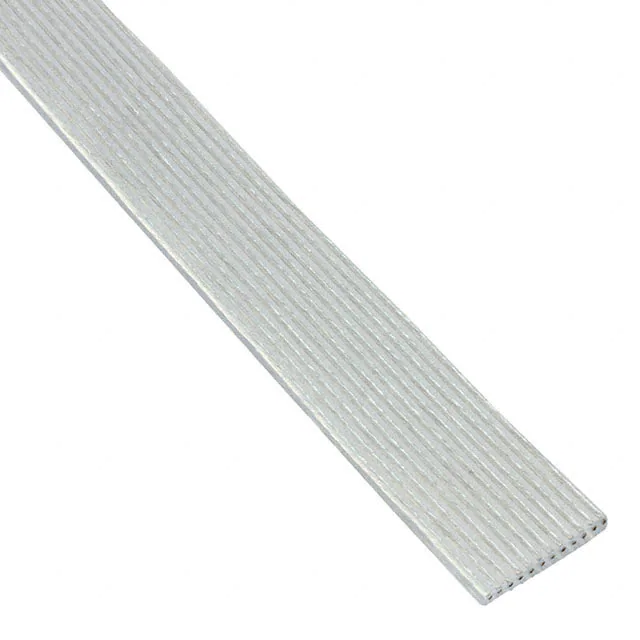

969M101-22-12-050CBL RIBN 12COND FLAT CLEAR 50' |
3,933 |
|
Datasheet | - | Bulk | Active | Flat Cable | 12 | - | 50.0' (15.24m) | 22 AWG | - | Unshielded | Clear | 0.110" (2.79mm) | 0.870" (22.10mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
|
969M101-20-8-050CBL RIBN 8COND FLAT CLEAR 50' |
1,502 |
|
Datasheet | - | Bulk | Active | Flat Cable | 8 | - | 50.0' (15.24m) | 20 AWG | - | Unshielded | Clear | 0.120" (3.05mm) | 0.670" (17.02mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
|
482W101-34Wire & Wire Management |
3,461 |
|
Datasheet | - | Bulk | Active | Flat Cable, Split Conductor | 34 | 0.025" (0.64mm) | - | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.850" (21.59mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
|
310J101-20CBL RIBN 20COND 0.05 CLEAR 1' |
4,528 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Flat Cable | 20 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 1.000" (25.40mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
969M101-16-4CBL RIBN 4COND FLAT CLEAR 1000' |
4,001 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | 1000' (304.80m) | 16 AWG | - | Unshielded | Clear | 0.150" (3.81mm) | 0.480" (12.19mm) | Flexx-Sil™ | 20 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
