Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9L28014 008H100CBL RIBN 14COND 0.05 GRAY 100' |
2,400 |
|
Datasheet | 9L280XX | Box | Active | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|

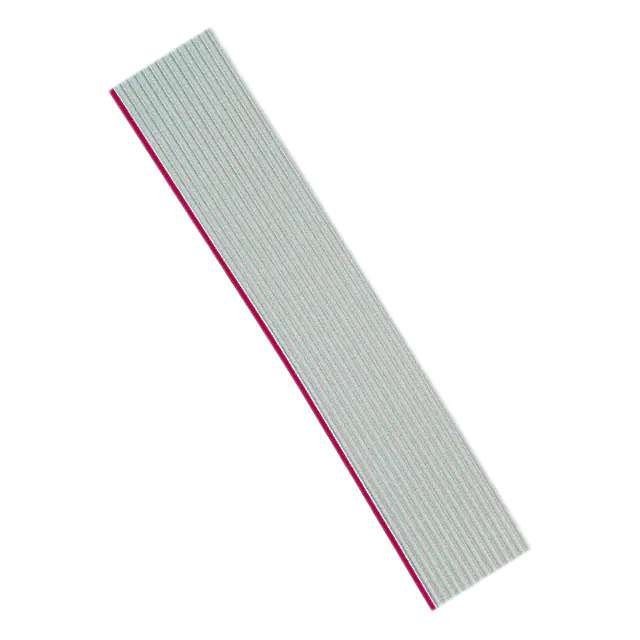

9L28010 008H100CBL RIBN 10COND 0.05 GRAY 100' |
1,638 |
|
Datasheet | Classics | Box | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | - | - |
|

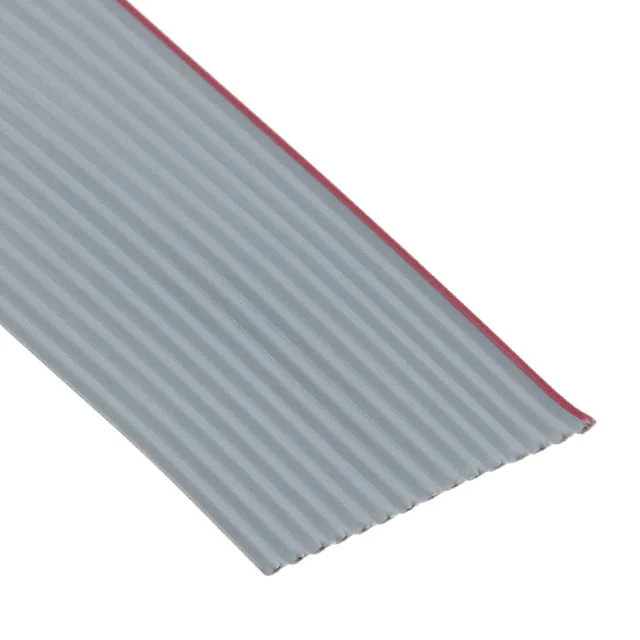

9L28015 008H100CBL RIBN 15COND 0.05 GRAY 100' |
26,000 |
|
Datasheet | Classics | Box | Active | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|

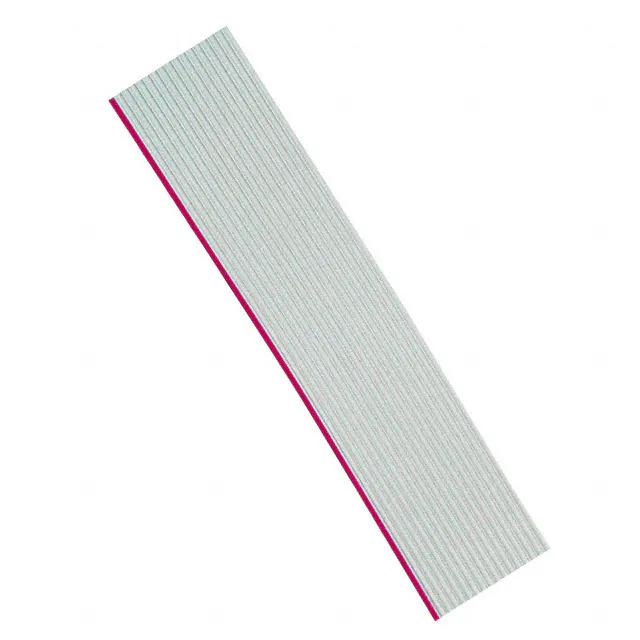

9L28016 008H100CBL RIBN 16COND 0.05 GRAY 100' |
11,600 |
|
Datasheet | Classics | Box | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | - | - |
|
9L26026 008H100CBL RIBN 26COND 0.05 GRAY 100' |
300 |
|
Datasheet | Classics | Box | Active | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|

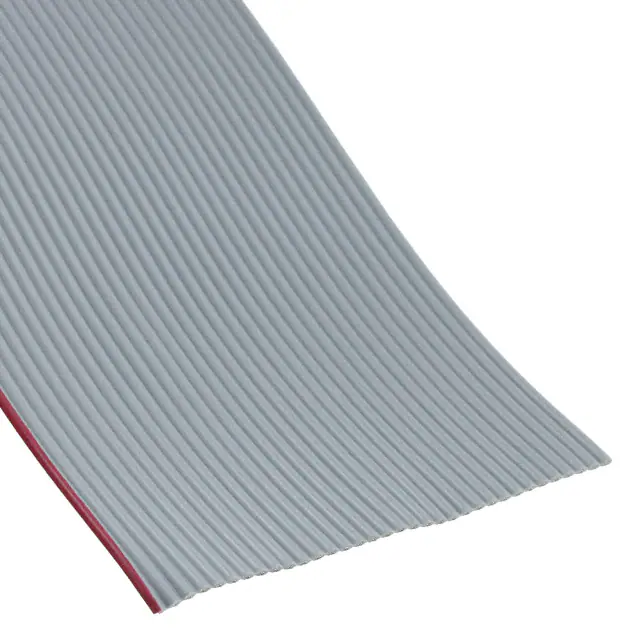

9L28034 008H100CBL RIBN 34COND 0.05 GRAY 100' |
700 |
|
Datasheet | 9L280XX | Box | Active | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|
9L28064 008H100CBL RIBN 64COND 0.05 GRAY 100' |
400 |
|
Datasheet | 9L280XX | Box | Active | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|

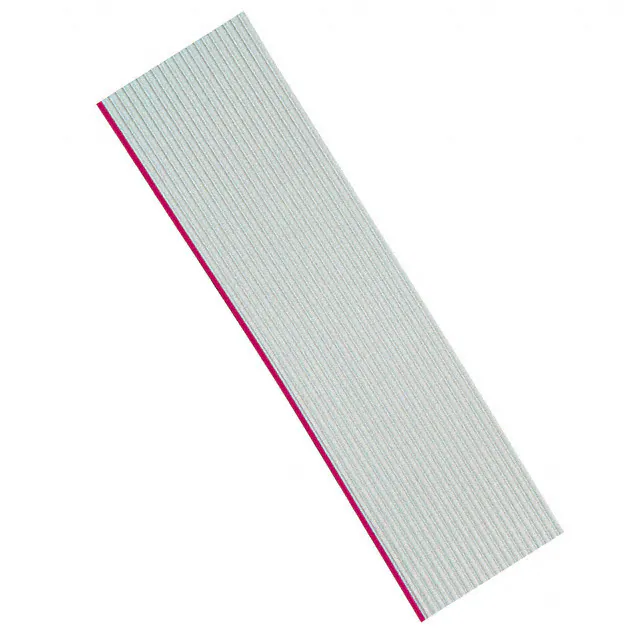

9L28020 008H100CBL RIBN 20COND 0.05 GRAY 100' |
4,266 |
|
Datasheet | 9L280XX | Box | Active | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | - | - |
|
9L28009 008H100CBL RIBN 9COND 0.05 GRAY 100' |
3,800 |
|
Datasheet | 9L280XX | Box | Active | Flat Cable | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|
9L30050 008H100CBL RIBN 50COND 0.025 GRAY 100' |
200 |
|
Datasheet | 9L300XX | Spool | Active | Flat Cable | 50 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.122" (3.10mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -40°C ~ 105°C | UL Style 2678 | - |
