Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3659/50 100CBL RIBN 50COND 0.05 BLACK 25' |
2,021 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 2.450" (62.23mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
.jpg)
|
3302/34 100CBL RIBN 34COND 0.05 MULTI 50' |
4,700 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
1785/50 100SFCBL RIBN 50COND TWIST PAIR 10' |
4,435 |
|
Datasheet | 1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|

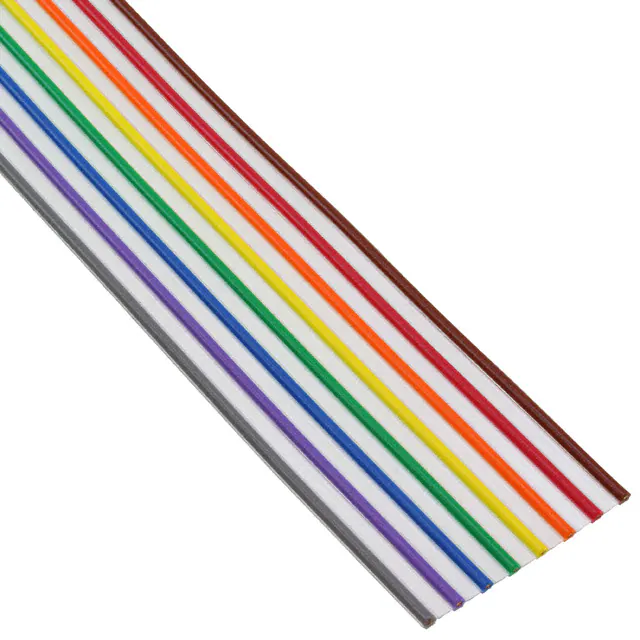

3391/08 100CBL RIBN 8COND 0.156 MULTI 100' |
3,076 |
|
Datasheet | 3391 | Bulk | Obsolete | Flat Cable | 8 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 1.170" (29.72mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Zippable |
.jpg)
|
1700/10SFCBL RIBN 10COND TWIST PAIR 0.05 |
1,076 |
|
Datasheet | 1700 | Spool | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | - | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | Splice Free |
|
3759/25 100SFCBL RIBN 25COND 0.05 BLACK 50' |
3,152 |
|
Datasheet | 3759 | Bulk | Active | Flat Cable, Round Jacket | 25 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|
HF659/37SFCBL RIBN 37COND 0.05 GRAY 25' |
3,534 |
|
Datasheet | HF659 | Box | Active | Flat Cable, Round Jacket | 37 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.800" (45.72mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3517/16 100SFCBL RIBN 16COND 0.05 GRAY 25' |
3,214 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 16 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.930" (23.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
AWG28-37/F/300CBL RIBN 37COND 0.05 MULTI 50' |
4,467 |
|
Datasheet | AWG | Bulk | Discontinued at Digi-Key | Flat Cable | 37 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
HF659/40SFCBL RIBN 40COND 0.05 GRAY 25' |
3,693 |
|
Datasheet | HF659 | Box | Obsolete | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.950" (49.53mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3603/34 100CBL RIBN 34COND 0.05 GRAY 25' |
4,067 |
|
Datasheet | 3603 | Bulk | Discontinued at Digi-Key | Flat Cable, Flat Jacket | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.100" (2.54mm) | 1.780" (45.21mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
AWG28-34/F-1/300CBL RIBN 34COND 0.039 MULTI 50' |
4,255 |
|
Datasheet | AWG | Box | Discontinued at Digi-Key | Flat Cable | 34 | 0.039" (1.00mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.339" (34.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
8125/10 100CBL RIBN 10COND 0.1 GRAY 50' |
4,077 |
|
Datasheet | 8125 | Bulk | Active | Flat Cable | 10 | 0.100" (2.54mm) | 50.0' (15.24m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.054" (1.37mm) | 0.968" (24.59mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
304-28-16-MC-0300FCBL RIBN 16COND 0.05 MULTI 300' |
2,617 |
|
Datasheet | - | Box | Obsolete | Flat Cable | 16 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
WRC5-100CBL RIBN 5COND FLAT CABLE 100' |
3,855 |
|
- |
WRC5 | Box | Active | Flat Cable | 5 | - | 100.0' (30.48m) | - | - | Unshielded | - | - | - | - | - | - | - | - | - | - |
|
HF365/34SFCBL RIBN 34COND 0.05 GRAY 50' |
2,426 |
|
Datasheet | HF365 | Box | Active | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
3319/64 100CBL RIBN 64COND 0.05 BLACK 5' |
3,564 |
|
Datasheet | 3319 | Bulk | Discontinued at Digi-Key | Flat Cable | 64 | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
304-28-40-MC-0100FCBL RIBN 40COND 0.05 MULTI 100' |
1,544 |
|
Datasheet | - | Bulk | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
0082286081CBL RIBN 8COND 0.1 GRAY 100' |
4,029 |
|
- |
7767 | Bulk | Obsolete | Flat Cable | 8 | 0.100" (2.54mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|
|
301-28-26-GR-0300FCBL RIBN 26COND 0.039 GRAY 300' |
2,512 |
|
Datasheet | - | Box | Obsolete | Flat Cable | 26 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.024" (26.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
