Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3302/34 100CBL RIBN 34COND 0.05 MULTIPLE 1' |
4,952 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3625/26SFCBL RIBN 26COND 0.039 GRAY 98.4' |
1,605 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 26 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | Splice Free |
|
|
969M101-20-4-MCInerconnect Cable Assemblies |
4,171 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | - | 20 AWG | - | Unshielded | Clear | 0.120" (3.05mm) | 0.360" (9.14mm) | Perfluoroalkoxy (PFA) | 18 kV | - | - | -65°C ~ 165°C | - | - |
.jpg)
|
3659/64 300SFCBL RIBN 64COND 0.05 BLACK 300' |
3,039 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
|
1000570304CBL RIBN 24COND 0.025 NATU 100' |
1,683 |
|
- |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 24 | 0.025" (0.64mm) | 100.0' (30.48m) | 32 AWG | 7 Strands / 40 AWG | Unshielded | Natural | - | 0.600" (15.24mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | 200°C | - | - |
|
3770/60 100CBL RIBN 60COND 0.05 GRAY 100' |
2,299 |
|
Datasheet | 3770 | Spool | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 3.000" (76.20mm) | Thermoplastic Elastomer (TPE) | 300 V | - | - | -40°C ~ 105°C | UL Style 20297 | Zippable |
|
302-28-14-GR-0250FCBL RIBN 14COND 0.05 GRAY 1' |
1,446 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Flat Cable | 14 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|

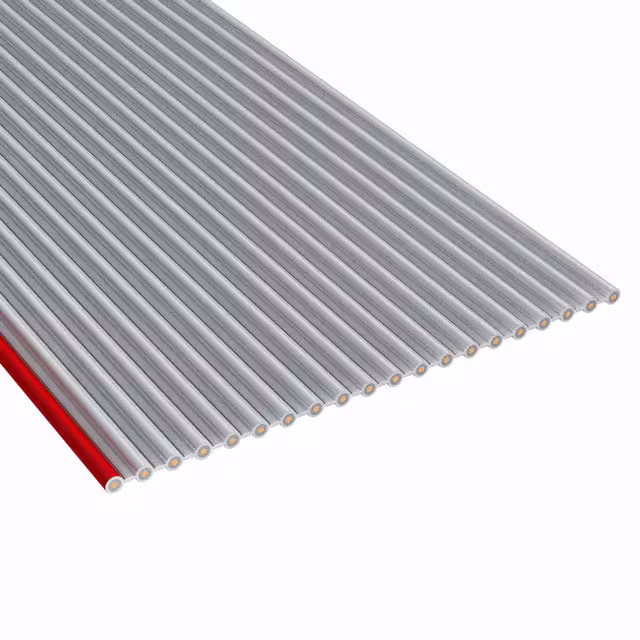

8125/20 100CBL RIBN 20COND 0.1 GRAY 100' |
3,334 |
|
Datasheet | 8125 | Spool | Active | Flat Cable | 20 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.054" (1.37mm) | 1.968" (49.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
969M101-22-4CBL RIBN 4COND FLAT CLEAR 1000' |
3,332 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | 1000' (304.80m) | 22 AWG | - | Unshielded | Clear | 0.110" (2.79mm) | 0.320" (8.13mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
3365/40SF 100CBL RIBN 40COND 0.05 GRAY 1' |
1,659 |
|
Datasheet | 3365 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3319/06 100CBL RIBN 6COND 0.05 BLACK 1' |
1,301 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 6 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.300" (7.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
1000570230CBL RIBN 14COND 0.05 BLUE 150' |
4,525 |
|
- |
Temp-Flex 100057 | Spool | Active | Flat Cable | 14 | 0.050" (1.27mm) | 150.0' (45.72m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Blue | - | 0.700" (17.78mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
.jpg)
|
3659/26SOCBL RIBN 26COND 0.05 BLACK 300' |
1,726 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
969M101-26-4CBL RIBN 4COND FLAT CLEAR 1000' |
2,054 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | 1000' (304.80m) | 26 AWG | - | Unshielded | Clear | 0.090" (2.28mm) | 0.250" (6.35mm) | Flexx-Sil™ | 12 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
969M101-24-4CBL RIBN 4COND FLAT CLEAR 1000' |
4,094 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | 1000' (304.80m) | 24 AWG | - | Unshielded | Clear | 0.090" (2.28mm) | 0.270" (6.85mm) | Flexx-Sil™ | 12 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
969M101-20-4CBL RIBN 4COND FLAT CLEAR 1000' |
1,306 |
|
Datasheet | - | Bulk | Active | Flat Cable | 4 | - | 1000' (304.80m) | 20 AWG | - | Unshielded | Clear | 0.120" (3.05mm) | 0.360" (9.14mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
AWG28-10/G-1/300-RCBL RIBN 10COND 0.039 GRAY 5' |
1,249 |
|
Datasheet | AWG | Bulk | Active | Flat Cable | 10 | 0.039" (1.00mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.394" (10.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
SL8803/04-10DN5-00CBL RIBN 4COND SILVER 0.750' |
1,326 |
|
Datasheet | SL8800 | Bulk | Active | Flat Twin Axial | 4 (2 Pair) | - | 0.750' (228.60mm, 9.00") | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.307" (7.80mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL E42769 | Straight |
|
|
1000570125CBL RIBN 5COND 0.1 GRAY 100' |
1,887 |
|
- |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 5 | 0.100" (2.54mm) | 100.0' (30.48m) | 26 AWG | 19 Strands / 34 AWG | Unshielded | Gray | - | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | UL Style 20424 | - |
|
3759/26 100CBL RIBN 26COND 0.05 BLACK 1' |
1,761 |
|
Datasheet | 3759 | Bulk | Active | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
