Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF759/20SFCBL RIBN 20COND 0.05 GRAY 275' |
4,654 |
|
Datasheet | HF759 | Spool | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
|
HF759/20SFCBL RIBN 20COND FLAT 0.05 GRAY |
4,404 |
|
Datasheet | HF759 | Digi-Spool®, Continuous Spool | Discontinued at Digi-Key | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|

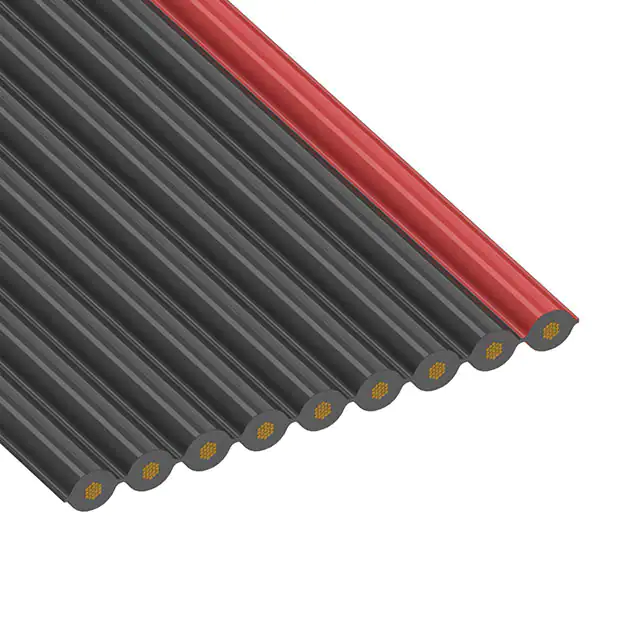

3319/09 100CBL RIBN 9COND 0.05 BLACK 100' |
3,061 |
|
Datasheet | 3319 | Spool | Active | Flat Cable | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
.jpg)
|
3302/50 300CBL RIBN 50COND 0.05 MULTI 300' |
1,090 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 50 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
HF365/44CBL RIBN 44COND 0.05 GRAY 100' |
3,269 |
|
Datasheet | HF365 | Spool | Active | Flat Cable | 44 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.200" (55.88mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
C3365/64 100SFCBL RIBN 64COND 0.05 GRAY 100' |
4,076 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
1000570136CBL RIBN 14COND 0.05 NATU 100' |
1,573 |
|
- |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Natural | - | - | Fluorinated Ethylene-Propylene (FEP) | - | - | - | - | - | - |
.jpg)
|
C1700/40 100CBL RIBN 40COND TWIST PAIR 100' |
2,638 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3770/37 100CBL RIBN 37COND 0.05 GRAY 100' |
3,472 |
|
Datasheet | 3770 | Spool | Active | Flat Cable | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.850" (46.99mm) | Thermoplastic Elastomer (TPE) | 300 V | - | - | -40°C ~ 105°C | UL Style 20297 | Zippable |
|
SL8802/04-10DN5-00CBL RIBN 4COND 0.093 SILVER 500' |
4,445 |
|
Datasheet | SL8800 | Spool | Active | Flat Twin Axial | 4 (2 Pair) | 0.093" (2.37mm) Between Pairs | 500.0' (152.40m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.215" (5.45mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
HF447/12 100'CBL RIBN 12COND 0.025 GRAY 1' |
2,811 |
|
Datasheet | HF447 | Box | Active | Flat Cable | 12 | 0.025" (0.64mm) | 1.00' (304.80mm) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.300" (7.62mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
.jpg)
|
1700/50TGCBL RIBN 50COND TWIST PAIR 300' |
3,721 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
|
|
HF659/24CBL RIBN 24COND 0.05 GRAY 275' |
1,172 |
|
Datasheet | HF659 | Spool | Active | Flat Cable, Round Jacket | 24 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.150" (29.21mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Zippable |
|
3365/34 100CBL RIBN 34COND 0.05 GRAY 1' |
1,699 |
|
Datasheet | 3365 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
1000570317CBL RIBN 2COND 0.065 MULTIPLE |
3,979 |
|
- |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 2 | 0.065" (1.65mm) | - | 22 AWG | - | Unshielded | Multiple | - | - | - | - | - | - | - | - | - |
|
|
1000570424CBL RIBN 5COND 0.039 BLUE 100' |
1,796 |
|
Datasheet | Temp-Flex 100057 | Spool | Active | Flat Cable | 5 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | - | Fluorinated Ethylene-Propylene (FEP) | - | - | - | - | - | - |
|
|
1000570122CBL RIBN 8COND 0.05 GREEN 100' |
4,046 |
|
Datasheet | Temp-Flex 100057 | Spool | Active | Flat Cable | 8 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Green | 0.032" (0.81mm) | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | UL Style 20424 | - |
|
|
1000570218CBL RIBN 8COND 0.039 BLUE 100' |
1,841 |
|
Datasheet | Temp-Flex 100057 | Spool | Active | Flat Cable | 8 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | - | Fluorinated Ethylene-Propylene (FEP) | - | - | - | - | - | - |
|
HF625/12-30MCBL RIBN 12COND 0.039 GRAY 98.4' |
4,067 |
|
Datasheet | HF625 | Spool | Active | Flat Cable | 12 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.472" (11.99mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3811/16 100CBL RIBN 16COND 0.05 MULTIPLE 1' |
3,560 |
|
Datasheet | 3811 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 1.00' (304.80mm) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
