Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

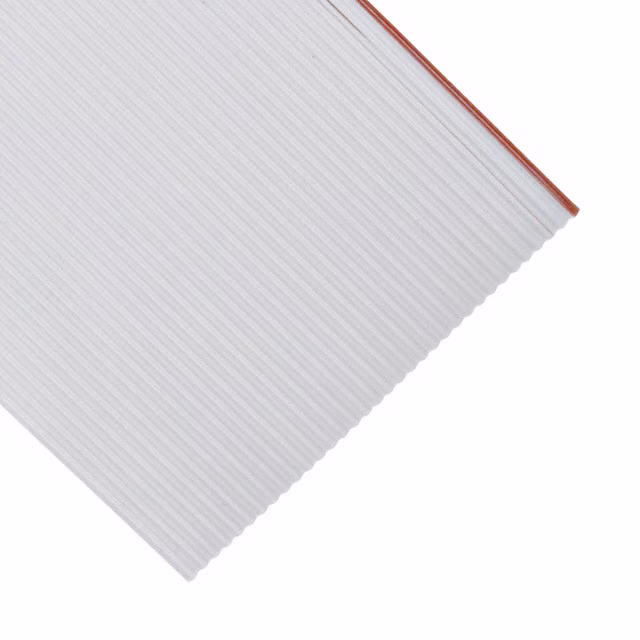

C3365/34 300SFCBL RIBN 34COND 0.05 GRAY 300' |
3,697 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 34 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3365/09 100CBL RIBN 9COND FLAT 0.05 GRAY 1' |
2,661 |
|
Datasheet | 3365 | Bulk | Active | Flat Cable | 9 | 0.050" (1.27mm) | 1.00' (304.80mm) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3625/8 100MCBL RIBN 8COND 0.039 GRAY 328.1' |
1,211 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 8 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.315" (8.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
.jpg)
|
1700/16BPSFCBL RIBN 16COND TWIST PAIR 100' |
1,075 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 16 (8 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
|
3365A/26CBL RIBN 26COND 0.05 BLACK 100' |
4,743 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3365/30SFCBL RIBN 30COND 0.05 GRAY 100' |
3,491 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 30 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.500" (38.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3355/16-100CABLE RIBBON |
2,225 |
|
- |
- | Spool | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C3365/40 300CBL RIBN 40COND 0.05 GRAY 300' |
3,653 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3801/24BSCBL RIBN 24COND 0.05 GRAY 300' |
2,589 |
|
Datasheet | 3801 | Spool | Active | Flat Cable | 24 | 0.050" (1.27mm) | 300.0' (91.44m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3365/16CBL RIBN 16COND FLAT 0.05 GRAY |
4,988 |
|
Datasheet | 3365 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 16 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
1000570083CBL RIBN 2COND 0.05 MULTI 100' |
4,174 |
|
- |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 2 | 0.050" (1.27mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Multiple | - | - | Fluorinated Ethylene-Propylene (FEP) | - | - | - | - | - | - |
|
3539/10 100CBL RIBN 10COND 0.05 GRAY 100' |
4,906 |
|
Datasheet | 3539 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3756/26 300CBL RIBN 26COND 0.025 GRAY 300' |
3,008 |
|
Datasheet | 3756 | Spool | Active | Flat Cable | 26 | 0.025" (0.64mm) | 300.0' (91.44m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 0.650" (16.51mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|
C3365/36 100CBL RIBN 36COND 0.05 GRAY 100' |
3,323 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 36 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.800" (45.72mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
C3539/10 300CBL RIBN 10COND 0.05 GRAY 300' |
2,590 |
|
Datasheet | 3539 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF447/12 300'SFCBL RIBN 12COND 0.025 GRAY 300' |
1,981 |
|
Datasheet | HF447 | Spool | Active | Flat Cable | 12 | 0.025" (0.64mm) | 300.0' (91.44m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.300" (7.62mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | Splice Free |
|
|
3811/18 100CBL RIBN 18COND 0.05 MULTI 100' |
1,137 |
|
Datasheet | 3811 | Spool | Active | Flat Cable | 18 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.900" (22.86mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
.jpg)
|
C1700/20TB 100CBL RIBN 20COND TWIST PAIR 100' |
2,741 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 20 (10 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3365/34SFCBL RIBN 34COND 0.05 GRAY 500' |
1,295 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 34 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | Splice Free |
|
C3365/37 100CBL RIBN 37COND 0.05 GRAY 100' |
1,251 |
|
Datasheet | 3365 | Spool | Active | Flat Cable | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
