Flat Flex Ribbon Jumpers, Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Length - Exposed Ends | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
686612225001CABLE FFC/FPC 12POS 1MM 19.7" |
1,121 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC, Pre-Folded | 12 | 0.039" (1.00mm) | 19.7" (500.0mm) | 0.197" (5.00mm) | Top on Both Sides, Backers on Both Sides |
|

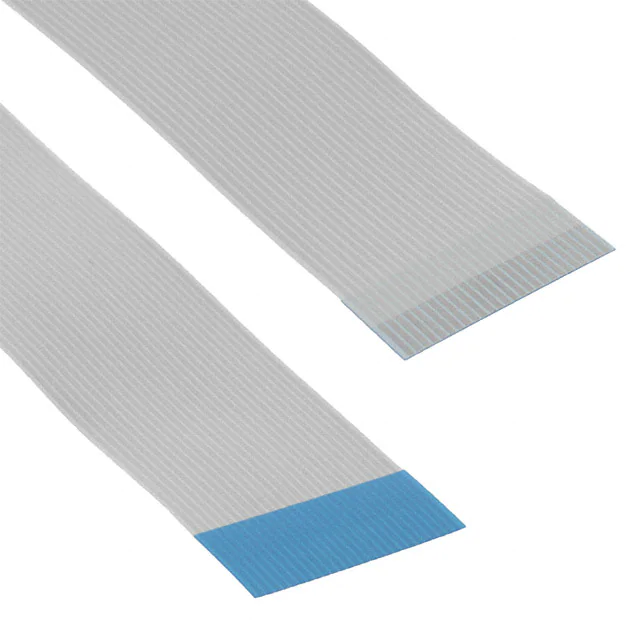

686726200001CABLE FFC/FPC 26POS 1MM 7.87" |
4,793 |
|
Datasheet | WR-FFC | Bulk | Active | FFC, FPC | 26 | 0.039" (1.00mm) | 7.874" (200.00mm) | 0.197" (5.00mm) | Top on One Side, Bottom on Other, Backers on Both Sides |
|
686622152001CABLE FFC/FPC 22POS 1MM 5.98" |
2,711 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC | 22 | 0.039" (1.00mm) | 5.984" (152.00mm) | 0.197" (5.00mm) | Top on Both Sides, Backers on Both Sides |
|
686618100001CABLE FFC/FPC 18POS 1MM 3.94" |
2,420 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC | 18 | 0.039" (1.00mm) | 3.940" (100.08mm) | 0.197" (5.00mm) | Top on Both Sides, Backers on Both Sides |
|
686722050001CABLE FFC/FPC 22POS 1MM 1.97" |
1,406 |
|
Datasheet | WR-FFC | Bulk | Active | FFC, FPC | 22 | 0.039" (1.00mm) | 1.970" (50.04mm) | 0.197" (5.00mm) | Top on One Side, Bottom on Other, Backers on Both Sides |
|
686605152001CABLE FFC/FPC 5POS 1MM 5.98" |
4,965 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC | 5 | 0.039" (1.00mm) | 5.984" (152.00mm) | 0.197" (5.00mm) | Top on Both Sides, Backers on Both Sides |
|
|

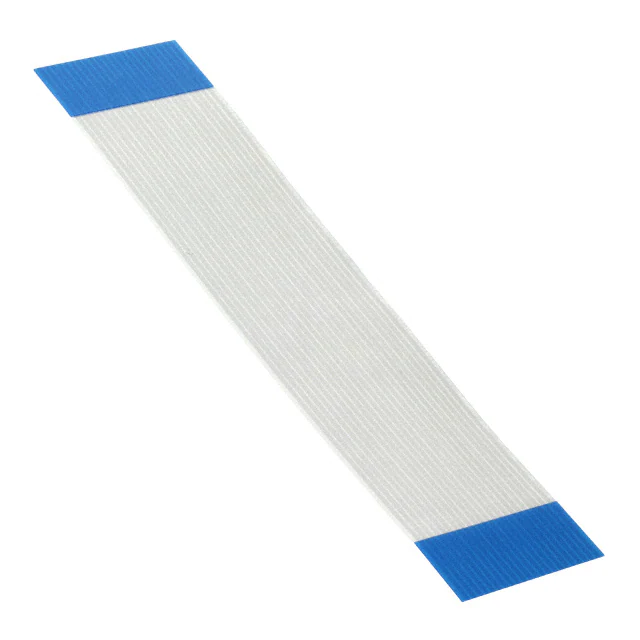

686622100001CABLE FFC/FPC 22POS 1MM 3.94" |
1,963 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC | 22 | 0.039" (1.00mm) | 3.940" (100.08mm) | 0.197" (5.00mm) | Top on Both Sides, Backers on Both Sides |
|
686628152001CABLE FFC/FPC 28POS 1MM 5.98" |
1,923 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC | 28 | 0.039" (1.00mm) | 5.984" (152.00mm) | 0.197" (5.00mm) | Top on Both Sides, Backers on Both Sides |
|

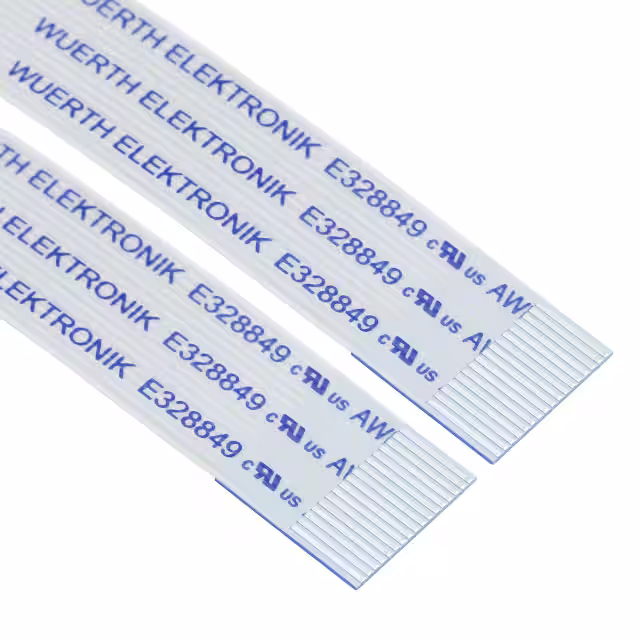

687617100002CABLE FFC/FPC 17POS 0.5MM 3.94" |
2,727 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC | 17 | 0.020" (0.50mm) | 3.940" (100.08mm) | 0.157" (4.00mm) | Top on Both Sides, Backers on Both Sides |
|
686720141001CABLE FFC/FPC 20POS 1MM 13.8" |
4,172 |
|
Datasheet | WR-FFC | Bag | Active | FFC, FPC, Pre-Folded | 20 | 0.039" (1.00mm) | 13.8" (350.5mm) | 0.197" (5.00mm) | Top on One Side, Bottom on Other, Backers on Both Sides |
