Flat Flex Cables (FFC, FPC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Conductors | Pitch | Cable Length | Cable Width | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Conductor Material | Conductor Plating | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR1635-03CABLE FLAT FLEX 3COND 0.100" |
4,610 |
|
Datasheet | PSR1635 | Spool | Active | 3 | 0.100" (2.54mm) | 500' (152.4m) | 0.40" (10.16mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1636-05CABLE FLAT FLEX 5COND 0.050" |
1,495 |
|
Datasheet | PSR1636 | Spool | Active | 5 | 0.050" (1.27mm) | 500' (152.4m) | 0.30" (7.57mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

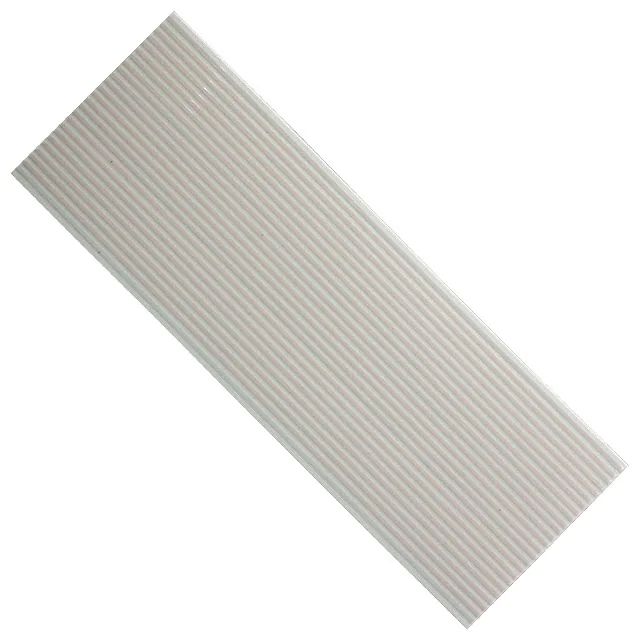

PSR1636-25CABLE FLAT FLEX 25COND 0.050" |
2,950 |
|
Datasheet | PSR1636 | Spool | Active | 25 | 0.050" (1.27mm) | 500' (152.4m) | 1.30" (33.02mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-07CABLE FLAT FLEX 7COND 0.100" |
4,021 |
|
Datasheet | PSR1635 | Spool | Active | 7 | 0.100" (2.54mm) | 500' (152.4m) | 0.80" (20.32mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

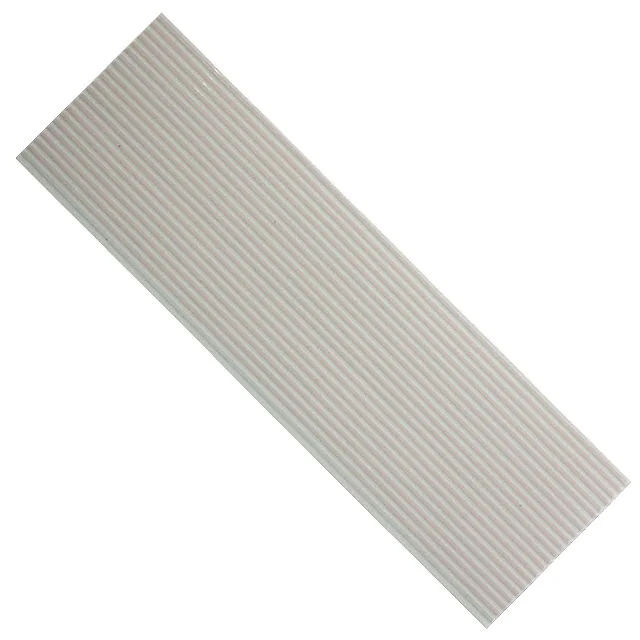

PSR1636-22CABLE FLAT FLEX 22COND 0.050" |
2,296 |
|
Datasheet | PSR1636 | Spool | Active | 22 | 0.050" (1.27mm) | 500' (152.4m) | 1.15" (29.21mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-06CABLE FLAT FLEX 6COND 0.100" |
3,695 |
|
Datasheet | PSR1635 | Bulk | Active | 6 | 0.100" (2.54mm) | 5' (1.52m) | 0.70" (17.78mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-05CABLE FLAT FLEX 5COND 0.100" |
4,100 |
|
Datasheet | PSR1635 | Bulk | Active | 5 | 0.100" (2.54mm) | 5' (1.52m) | 0.60" (15.10mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-12CABLE FLAT FLEX 12COND 0.100" |
2,856 |
|
Datasheet | PSR1635 | Bulk | Active | 12 | 0.100" (2.54mm) | 5' (1.52m) | 1.30" (33.02mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-02CABLE FLAT FLEX 2COND 0.100" |
1,221 |
|
Datasheet | PSR1635 | Bulk | Active | 2 | 0.100" (2.54mm) | 10' (3.05m) | 0.30" (7.57mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-10CABLE FLAT FLEX 10COND 0.100" |
1,319 |
|
Datasheet | PSR1635 | Bulk | Active | 10 | 0.100" (2.54mm) | 10' (3.05m) | 1.10" (27.94mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
