Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9509TFIXED IND 15UH 1.1A 82 MOHM SMD |
2,020 |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.1 A | 1.1A | Shielded | 82mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL8101NLTFIXED IND 7UH 1.4A 70 MOHM SMD |
3,000 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
PL8101TFIXED IND 7UH 1.4A 70 MOHM SMD |
4,169 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|

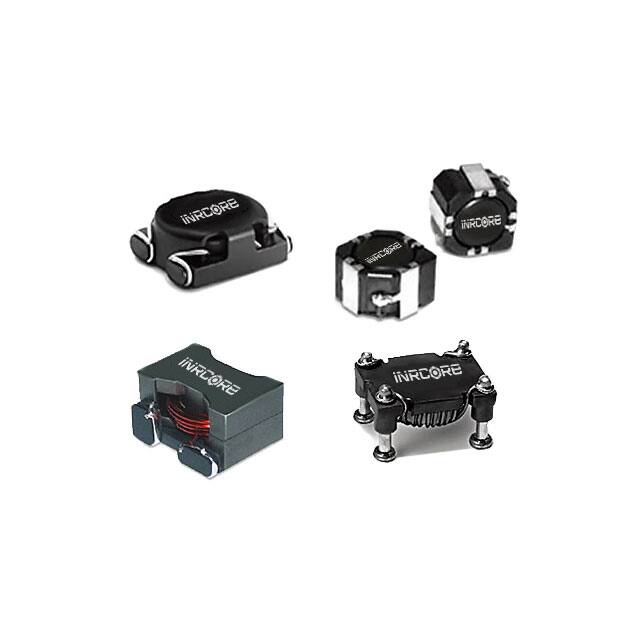

PL8100TFIXED IND 1.1UH 3.4A 11 MOHM SMD |
3,342 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.1 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
|
PL8100NLTFIXED IND 1.1UH 3.4A 11 MOHM SMD |
3,305 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.1 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
PL9413TFIXED IND 33UH 1.4A 126 MOHM SMD |
2,560 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.4 A | 1.4A | Shielded | 126mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
|
PL8102NLTFIXED IND 22.7UH 1A 125 MOHM SMD |
4,769 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22.7 µH | - | 1 A | - | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
PL8102TFIXED IND 22.7UH 1A 125 MOHM SMD |
2,258 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22.7 µH | - | 1 A | - | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
PL9503TFIXED IND 4UH 2.1A 27 MOHM SMD |
4,322 |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | ±30% | 2.1 A | 2.1A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL9515TFIXED IND 47UH 600MA 230MOHM SMD |
1,022 |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 600 mA | 600mA | Shielded | 230mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
