Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
194BFIXED IND 4H 90MA 108 OHM CHASS |
1,668 |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 4 H | ±15% | 90 mA | - | Unshielded | 108Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|

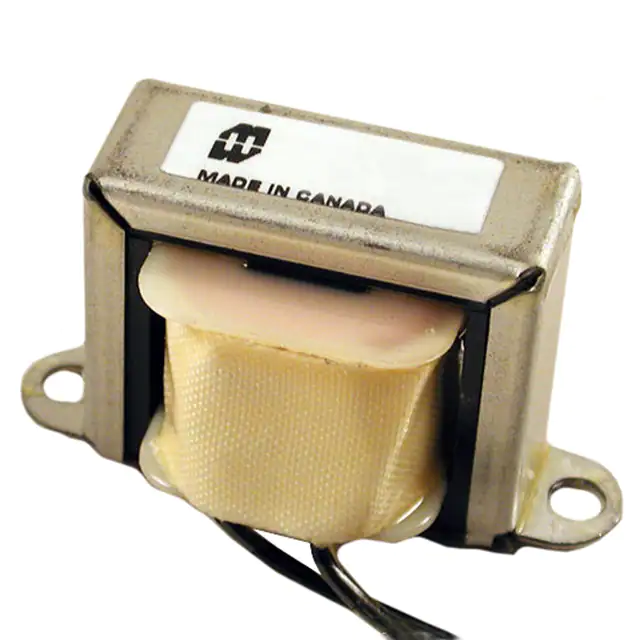

157DFIXED IND 1MH 10A 38 MOHM CHASS |
2,171 |
|
Datasheet | 157 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 10 A | - | Unshielded | 38mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
159ZEFIXED IND 28MH 3A 430 MOHM CHASS |
4,079 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 28 mH | ±15% | 3 A | - | Unshielded | 430mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
1539M31FIXED IND 5MH 2.2A 714 MOHM TH |
1,850 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 mH | ±10% | 2.2 A | - | Unshielded | 714mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
159ZGFIXED IND 15MH 4A 250 MOHM CHASS |
3,163 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 15 mH | ±15% | 4 A | - | Unshielded | 250mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
158MFIXED IND 10H 100MA 262 OHM CHAS |
3,870 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 10 H | ±15% | 100 mA | - | Unshielded | 262Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
|
158QFIXED IND 5H 150MA 105 OHM CHASS |
4,570 |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 5 H | ±15% | 150 mA | - | Unshielded | 105Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
|
159ZCFIXED IND 60MH 2A 700 MOHM CHASS |
3,776 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 60 mH | ±15% | 2 A | - | Unshielded | 700mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
159SFIXED IND 4H 225MA 65 OHM CHASS |
2,045 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 4 H | ±15% | 225 mA | - | Unshielded | 65Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
|
159VFIXED IND 1.5H 500MA 27 OHM CHAS |
3,093 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 500 mA | - | Unshielded | 27Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
