Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WMC08D22KCAP FILM 2200PF 10% 80VDC AXIAL |
2,223 |
|
Datasheet | Axial | 2200 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.406" L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
WMC08D68KCAP FILM 6800PF 10% 80VDC AXIAL |
5,673 |
|
Datasheet | Axial | 6800 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.406" L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
185MKP275KHCAP FILM 1.8UF 10% 310VAC RADIAL |
8,785 |
|
Datasheet | Radial | 1.8 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.472" W (31.00mm x 12.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
PVC10222CAP FILM 2200PF 10% 1KVDC RADIAL |
6,460 |
|
Datasheet | Radial | 2200 pF | ±10% | 200V | 1000V (1kV) | Polyester | - | -55°C ~ 125°C | Through Hole | 0.350" Dia x 0.701" L (8.90mm x 17.80mm) | - | PC Pins | 0.500" (12.70mm) | General Purpose | - | - |
|
|
DME6P27KCAP FILM 0.27UF 10% 630VDC RAD |
9,116 |
|
Datasheet | Radial | 0.27 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
150154K400GCCAP FILM 0.15UF 10% 400VDC AXIAL |
4,045 |
|
Datasheet | Axial | 0.15 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.354" Dia x 0.807" L (9.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|

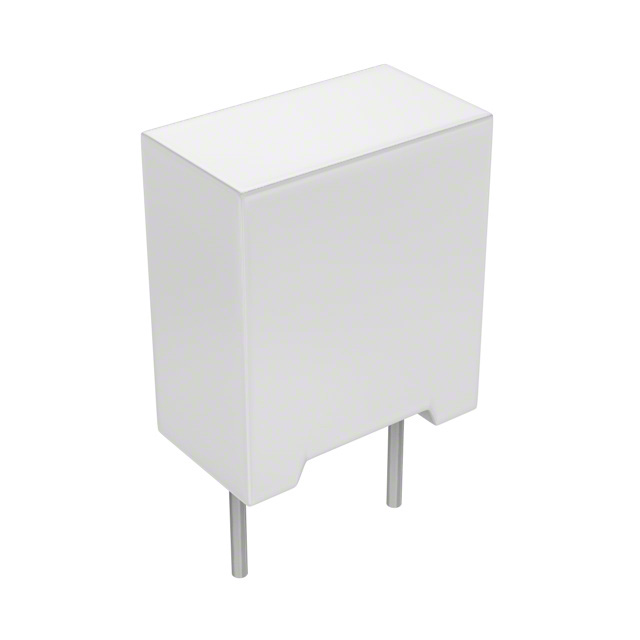

184153J630RDA-FCAP FILM 0.015UF 5% 630VDC RAD |
8,117 |
|
Datasheet | Radial | 0.015 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184153J630RDB-FCAP FILM 0.015UF 5% 630VDC RAD |
2,450 |
|
Datasheet | Radial | 0.015 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184153K630RDA-FCAP FILM 0.015UF 10% 630VDC RAD |
9,899 |
|
Datasheet | Radial | 0.015 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184153K630RDB-FCAP FILM 0.015UF 10% 630VDC RAD |
8,144 |
|
Datasheet | Radial | 0.015 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
