Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

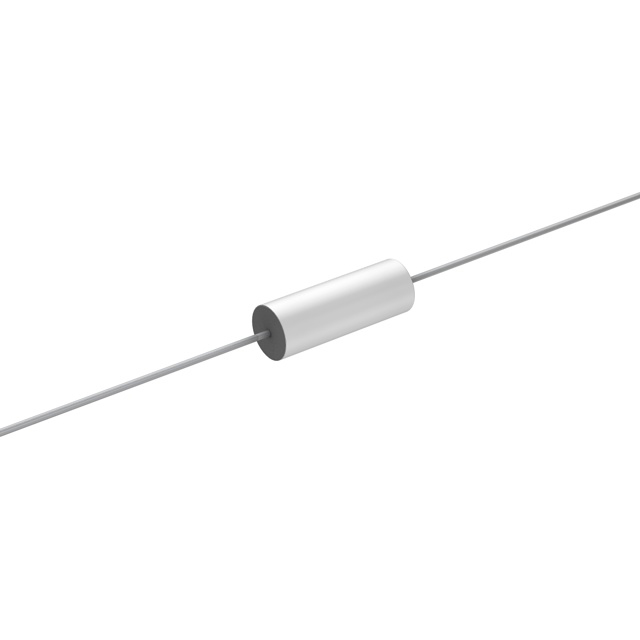

WMF1D47K-FCAP FILM 4700PF 10% 100VDC AXIAL |
488 |
|
Datasheet | Axial | 4700 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.197" Dia x 0.563" L (5.00mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
715P47396LA3CAP FILM 0.047UF 10% 600VDC RAD |
997 |
|
Datasheet | Radial | 0.047 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 1.031" (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P47356LD3CAP FILM 0.047UF 5% 600VDC RAD |
344 |
|
Datasheet | Radial | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P68256JD3CAP FILM 6800PF 5% 600VDC RADIAL |
248 |
|
Datasheet | Radial | 6800 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382" Dia x 0.701" L (9.70mm x 17.80mm) | 0.673" (17.10mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
942C20S1K-FCAP FILM 10000PF 10% 2KVDC AXIAL |
2,044 |
|
Datasheet | Axial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 50 mOhms | -55°C ~ 105°C | Through Hole | 0.472" Dia x 1.339" L (12.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
225P10391WD3CAP FILM 10000PF 10% 100VDC RAD |
290 |
|
Datasheet | Radial | 10000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.252" W (17.80mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
|
225P10291WD3CAP FILM 1000PF 10% 100VDC RAD |
8,239 |
|
Datasheet | Radial | 1000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
225P47491XD3CAP FILM 0.47UF 10% 100VDC RAD |
374 |
|
Datasheet | Radial | 0.47 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.598" W (20.30mm x 15.20mm) | 0.709" (18.00mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
105PHC400KCAP FILM 1UF 10% 400VDC AXIAL |
219 |
|
Datasheet | Axial | 1 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Through Hole | 0.512" Dia x 1.339" L (13.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
106MMR250KCAP FILM 10UF 10% 250VDC RADIAL |
1,562 |
|
Datasheet | Radial | 10 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.650" W (31.00mm x 16.50mm) | 1.043" (26.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
