Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Current | DC Resistance (DCR) (Max) | Operating Temperature | Insertion Loss | Temperature Coefficient | Ratings | Mounting Type | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

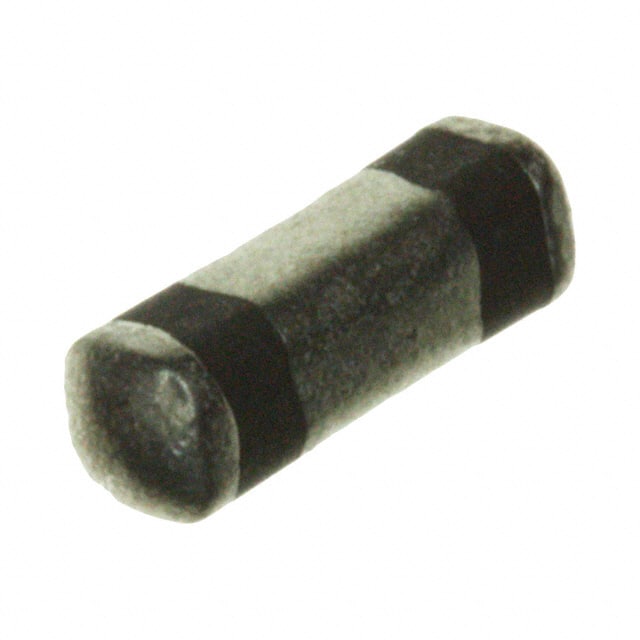

4702-005MLFCAP FEEDTHRU 4000PF 100V PILL |
6,422 |
|
Datasheet | 4702 | Pill, Square | Tape & Reel (TR) | Active | 4000 pF | -20%, +80% | 100V | 20 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | - | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.42mm) | - |
|
4400-680LFCAP FEEDTHRU 200V AXIAL |
716 |
|
Datasheet | 4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | - | - | - | - | 0.156" Dia x 0.370" L (3.96mm x 9.40mm) | - | 4-40 |
|
4400-034LFCAP FEEDTHRU 100V AXIAL |
3,162 |
|
Datasheet | 4400 | Axial, Bushing | Bulk | Active | - | - | 100V | 10 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|
4403-040LFCAP FEEDTHRU 50V AXIAL |
578 |
|
Datasheet | 4403 | Axial, Bushing | Tray | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 42dB @ 100MHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|
2499-003-X5S0-102MLFCAP FEEDTHRU 1000PF 500V AXIAL |
351 |
|
Datasheet | 2499 | Axial, Bushing | Bulk | Active | 1000 pF | ±20% | 500V | 20 A | - | -55°C ~ 85°C | - | X5S | - | - | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
|
4300-004LFCAP FEEDTHRU 100V AXIAL |
419 |
|
Datasheet | 4300 | Axial | Bulk | Active | - | - | 100V | 5 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4400-093LFCAP FEEDTHRU 50V AXIAL |
700 |
|
Datasheet | 4400 | Axial, Bushing | Bulk | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|
4601-000LFCAP FEEDTHRU 70V AXIAL |
1,669 |
|
Datasheet | 4601 | Axial, Bushing - 2 Solder Eyelets | Tray | Active | - | - | 70V | 15 A | - | - | 70dB @ 1GHz | X7W | - | - | 0.385" Dia x 0.362" L (9.78mm x 9.20mm) | - | 1/4"-28 |
|
4403-035LFCAP FEEDTHRU 50V AXIAL |
116 |
|
Datasheet | 4403 | Axial, Bushing | Tray | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|
2499-003-X5S0-152MLFCAP FEEDTHRU 1500PF 500V AXIAL |
3,796 |
|
Datasheet | 2499 | Axial, Bushing | Bulk | Active | 1500 pF | ±20% | 500V | 20 A | - | -55°C ~ 85°C | - | X5S | - | - | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
