Fan Cords
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 2nd Connector | Length | Fits Terminal Size | Number of Conductors | Cord Type | Wire Gauge | Approval Agency Marking | Voltage Rating | Current Rating (Amps) | Operating Temperature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
489-016-L10CORD 120X25 92X25 80X25 80X38MM |
3,052 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 2 | VSF0.75mm² | - | CSA, UL | - | - | - | - |
|
489-037-L10FAN CORD 120X38MM 1M |
1,721 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 3 | VSF1.25mm² | - | CSA, UL | - | - | - | - |
|

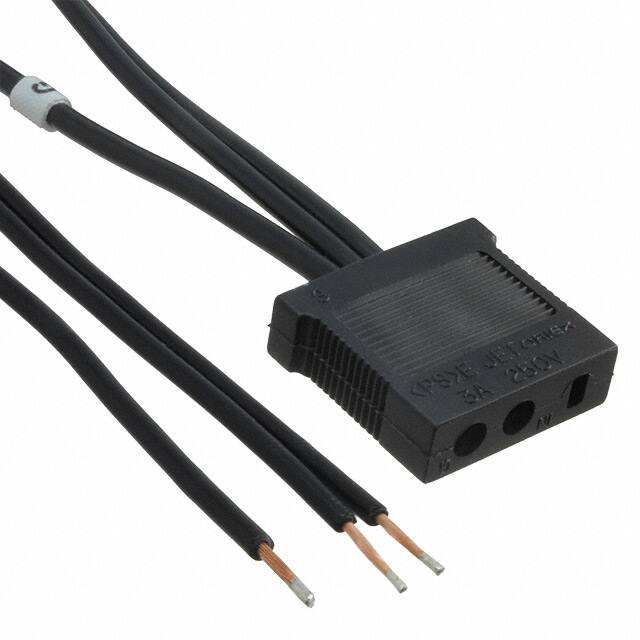

489-006-L10FAN CORD 120X38MM 1M |
1,139 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 2 | - | - | CSA, UL | - | - | - | - |
|
489-007-L21FAN CORD 120X38MM 2.1M (UL/CSA) |
2,354 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 82.7" (2.10m) | - | 3 | UL Style 1015 | 18 AWG | CSA, UL | - | - | - | - |
|
|
489-084-L10FAN CORD 172X51 160X51MM 1M |
3,586 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 39.4" (1.00m) | - | 2 | SPT-1 | 18 AWG | CSA, UL | - | - | - | - |
|
|
489-016-L21CORD 120X25 92X25 80X25 80X38MM |
1,849 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 82.7" (2.10m) | - | 2 | VSF0.75mm² | - | CSA, UL | - | - | - | - |
|
|
489-084-L21FAN CORD 172X51 160X51MM 2.1M |
2,866 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 82.7" (2.10m) | - | 2 | SPT-1 | 18 AWG | CSA, UL | - | - | - | - |
|
|
489-006-L21FAN CORD 120X38MM 2.1M |
2,139 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 82.7" (2.10m) | - | 2 | VSF1.25mm² | - | CSA, UL | - | - | - | - |
|
|
489-037-L35FAN CORD 120X38MM 3.5M |
2,100 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 137.8" (3.50m) | - | 3 | VSF1.25mm² | - | CSA, UL | - | - | - | - |
|
|
489-008-L21FAN CORD 80X42MM 2.1M |
3,261 |
|
Datasheet | - | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 82.7" (2.10m) | - | 2 | VSF0.75mm² | - | CSA, UL | - | - | - | - |
