DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3414NHUFAN AXIAL 92X25.4MM 24VDC WIRE |
3,979 |
|
Datasheet | 3400NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 55.3 CFM (1.55m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.3 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.234 lb (106.14 g) |
|
5118NFAN AXIAL 135X38MM 48VDC WIRE |
4,437 |
|
Datasheet | 5100N | Bulk | Active | 48VDC | Square - 135mm L x 135mm H | 38.00mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 9.5 W | 2900 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE | 1.4 lbs (635.0 g) |
|
4182NXHFAN AXIAL 119X38MM 12VDC TERM |
3,640 |
|
Datasheet | 4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 139.5 CFM (3.91m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | 2 Terminals | - | -22 ~ 131°F (-30 ~ 55°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
W2G107-AD03-13FAN AXIAL 119X38MM 24VDC TERM |
1,295 |
|
Datasheet | W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 3.3 W | - | 2 Terminals | - | - | CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
DV5218NFAN AXIAL 127X38MM 48VDC WIRE |
2,159 |
|
Datasheet | DV5200 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | - | 56.0dB(A) | 19 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.915 lb (415.04 g) |
|

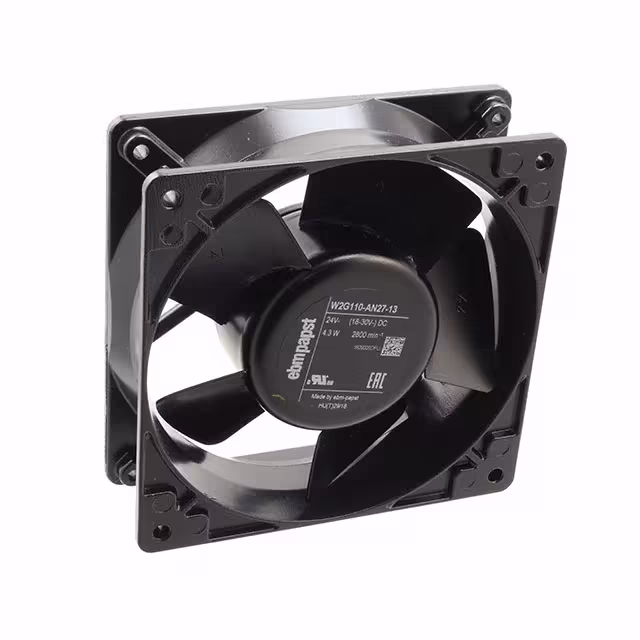

W2G110-AN27-13FAN AXIAL 119X38MM 24VDC TERM |
3,358 |
|
Datasheet | W2G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Thermal Overload Protector (TOP) | - | 4.3 W | 2800 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | EAC, UL | - |
|
7214N/17FAN AXIAL 150X55MM 24VDC WIRE |
3,638 |
|
Datasheet | 7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 55.00mm | 212.0 CFM (5.94m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | 3 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, EAC, UL, VDE | - |
|
RG160-28/12N/12FAN BLOWER CF 220X56MM 12VDC |
4,032 |
|
Datasheet | RG160N | Bulk | Active | 12VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | 66.0dB(A) | 21 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|
6424/12HFAN AXIAL 171.5X50.8MM 24VDC |
2,655 |
|
Datasheet | 6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 283.0 CFM (7.92m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 63.0dB(A) | 26 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | - |
|

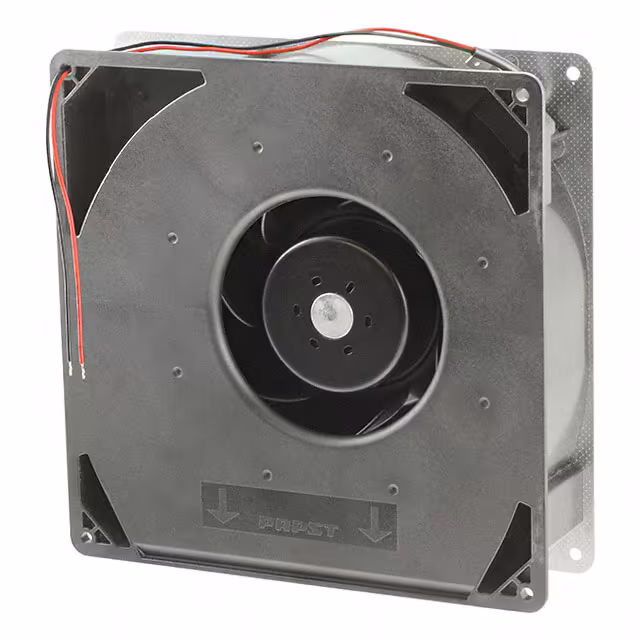

RG160-28/18NUFAN BLOWER CF 220X56MM 48VDC |
3,014 |
|
Datasheet | RG160NU | Bulk | Active | 48VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | - | - | 20 W | 2850 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 3 lbs (1.4 kg) |
