DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4412FFAN AXIAL 119X25.4MM 12VDC WIRE |
1,574 |
|
Datasheet | 4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 5.3 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
3312NNFAN AXIAL 92X32MM 12VDC WIRE |
4,697 |
|
Datasheet | 3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
|
4314SFAN AXIAL 119X32MM 24VDC WIRE |
4,724 |
|
Datasheet | 4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
412J/2HFAN AXIAL 40X25.4MM 12VDC WIRE |
4,159 |
|
- |
400J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 12.9 CFM (0.361m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3 W | 11700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.111 lb (50.35 g) |
|
|
3314N/2NFAN AXIAL 92X32MM 24VDC WIRE |
3,073 |
|
Datasheet | 3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 1.8 W | 2650 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
4312NH3FAN AXIAL 119X32MM 12VDC WIRE |
1,531 |
|
Datasheet | 4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 167.0 CFM (4.68m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 12 W | 4050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
628HHFAN AXIAL 60X25.4MM 48VDC WIRE |
4,348 |
|
Datasheet | 620 | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 4.2 W | 8200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.187 lb (84.82 g) |
|

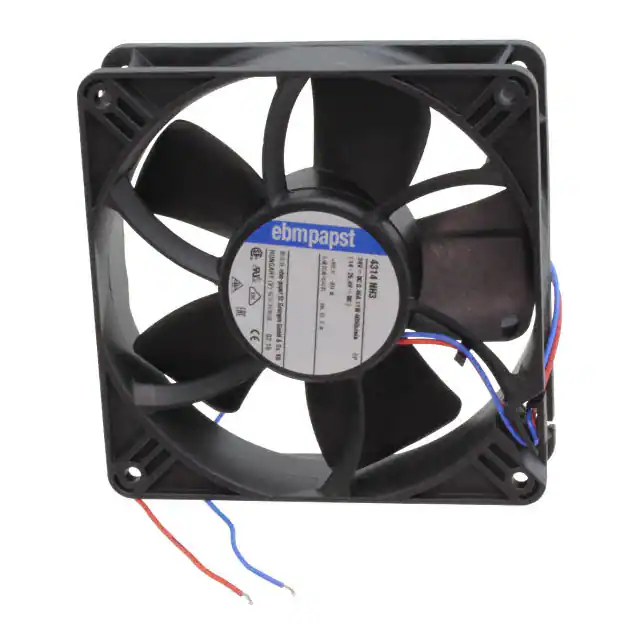

4314NH3FAN AXIAL 119X32MM 24VDC WIRE |
1,156 |
|
Datasheet | 4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 167.0 CFM (4.68m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 11 W | 4050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
3314NNUFAN AXIAL 92X32MM 24VDC WIRE |
3,403 |
|
Datasheet | 3300NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 46.9 CFM (1.31m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
4112NH3FAN AXIAL 119X38MM 12VDC WIRE |
4,390 |
|
Datasheet | 4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 21.6 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | 0.86 lb (390.09 g) |
