DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4394FAN AXIAL 119X32MM 24VDC TERM |
2,416 |
|
Datasheet | 4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
4414/2HFAN AXIAL 119X38MM 24VDC WIRE |
1,609 |
|
Datasheet | 4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 0.642 in H2O (160.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 8.6 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.604 lb (273.97 g) |
|
|
4412/2HHPFAN AXIAL 119X38MM 12VDC WIRE |
3,637 |
|
Datasheet | 4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 167.9 CFM (4.70m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 13 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
4188NXMFAN AXIAL 119X38MM 48VDC TERM |
3,891 |
|
Datasheet | 4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 94.0 CFM (2.63m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.5 W | 2800 RPM | 2 Terminals | - | -22 ~ 167°F (-30 ~ 75°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
4118NH3FAN AXIAL 119X38MM 48VDC WIRE |
4,332 |
|
Datasheet | 4100N | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 20 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | 0.86 lb (390.09 g) |
|
|
8315100164FAN AXIAL 80X38MM 12VDC WIRE |
1,071 |
|
Datasheet | AxiForce | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 103.0 CFM (2.88m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 26 W | 13200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

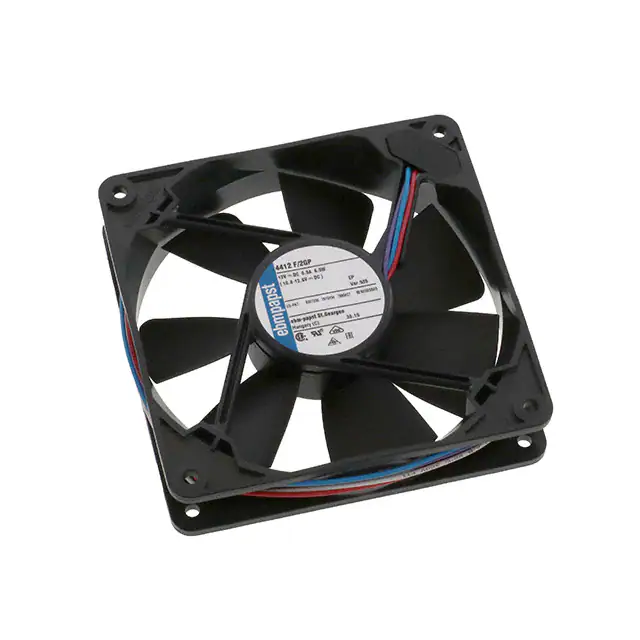

4412F/2GP-535FAN AXIAL 119X25.4MM 12VDC |
2,522 |
|
Datasheet | 4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 5.3 W | 2900 RPM | - | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
618JHFAN AXIAL 60X32MM 48VDC WIRE |
4,360 |
|
Datasheet | 600J | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 32.00mm | 41.2 CFM (1.15m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 7.7 W | 11700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.222 lb (100.7 g) |
|
4114NHHFAN AXIAL 119X38MM 24VDC WIRE |
3,028 |
|
Datasheet | 4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 12.4 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | - |
|
DV5214/2NFAN AXIAL 127X38MM 24VDC WIRE |
2,673 |
|
Datasheet | DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 159.0 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 20.4 W | 5000 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | - | - |
