DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4118NHHFAN AXIAL 119X38MM 48VDC WIRE |
2,931 |
|
Datasheet | 4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 12 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | - |
|

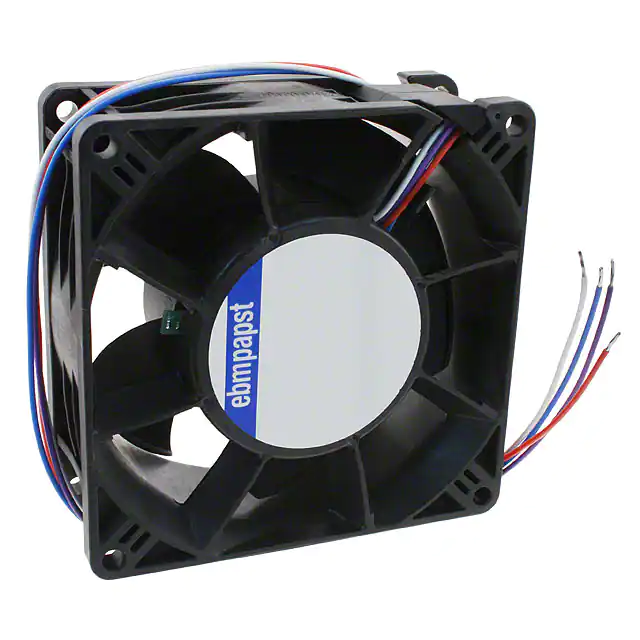

3218J/2H4PFAN AXIAL 92X38MM 48VDC WIRE |
173 |
|
Datasheet | 3200J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 50 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL, VDE | 0.62 lb (281.23 g) |
|
5114N/2FAN AXIAL 135X38MM 24VDC WIRE |
4,539 |
|
Datasheet | 5100N | Bulk | Active | 24VDC | Square - 135mm L x 135mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 9.5 W | 2900 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 162°F (-25 ~ 72°C) | - | 1.4 lbs (650.0 g) |
|

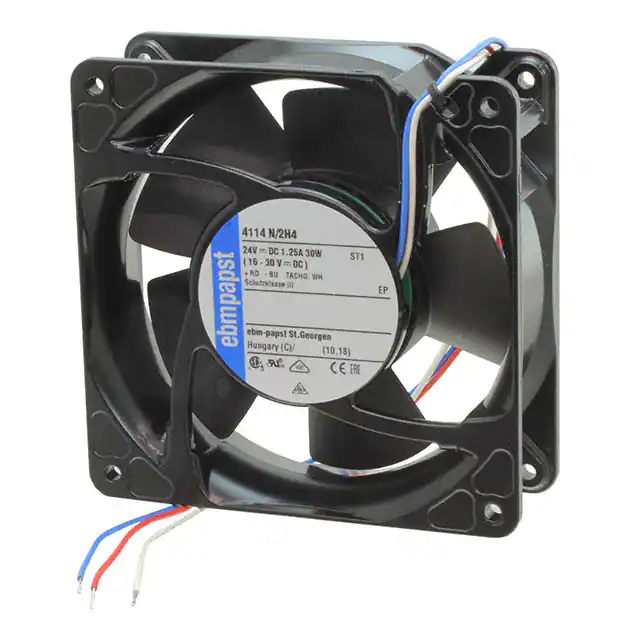

4114N/2H4FAN AXIAL 119X38MM 24VDC WIRE |
1,974 |
|
Datasheet | 4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 209.0 CFM (5.85m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 73.0dB(A) | 30 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
QG030-148/14RFAN BLOWER CF 201X47.5MM 24VDC |
146 |
|
Datasheet | QG030 | Box | Active | 24VDC | Rectangular - 201mm L x 50mm H | 47.50mm | 44.0 CFM (1.23m³/min) | - | Ball | Blower, Cross Flow | - | 49.0dB(A) | 6.2 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.56 lb (254.01 g) |
|

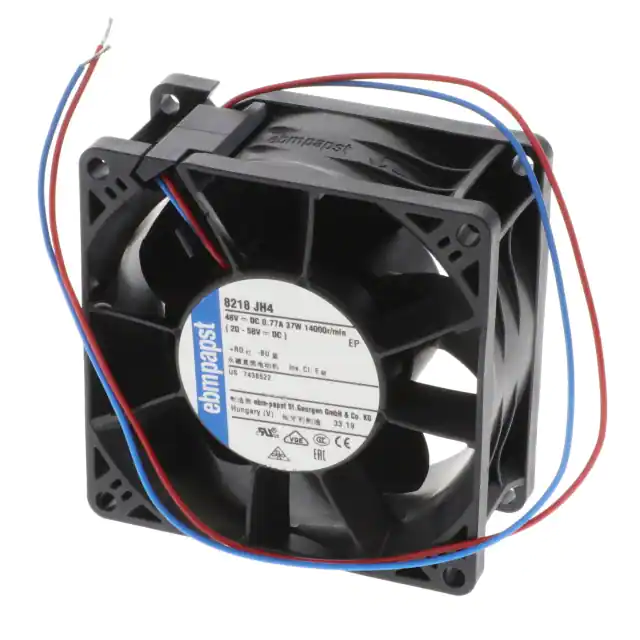

8218JH4FAN AXIAL 80X38MM 48VDC WIRE |
4,614 |
|
Datasheet | 8200J, S-Force | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 71.0dB(A) | 36 W | 14000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
RER160-28/12NFAN IMP MTRZD 176X54MM 12VDC |
2,254 |
|
Datasheet | RER160N | Box | Active | 12VDC | Round - 176mm Dia | 54.00mm | 132.4 CFM (3.71m³/min) | - | Ball | Motorized Impellers | - | 58.0dB(A) | 19 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 1.3 lbs (589.7 g) |
|

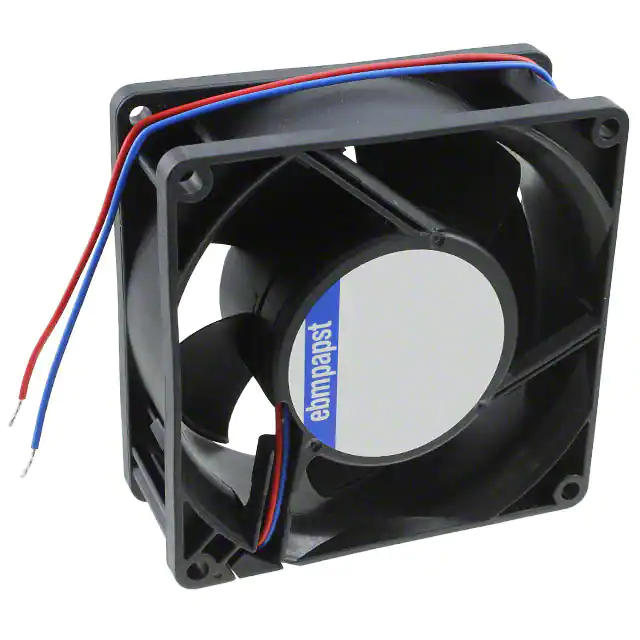

3212JH4FAN AXIAL 92X38MM 12VDC WIRE |
256 |
|
Datasheet | 3200J | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 50 W | 13000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.617 lb (279.87 g) |
|
3214JH4FAN AXIAL 92X38MM 24VDC WIRE |
695 |
|
Datasheet | 3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 50 W | 13000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.617 lb (279.87 g) |
|
6448HFAN AXIAL 172X50.8MM 48VDC WIRE |
1,899 |
|
Datasheet | 6400 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 282.5 CFM (7.91m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 26 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | 1.7 lbs (771.1 g) |
