DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB0405LAFAN AXIAL 40X10MM BALL 5VDC WIRE |
4,466 |
|
Datasheet | EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.5dB(A) | 350 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0405MAFAN AXIAL 40X10MM BALL 5VDC WIRE |
1,410 |
|
Datasheet | EFB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.9 CFM (0.165m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 500 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
|
EFB0412LAFAN AXIAL 40X10MM 12VDC WIRE |
4,653 |
|
Datasheet | EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.5dB(A) | 600 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0412VHAFAN AXIAL 40X10MM 12VDC WIRE |
2,034 |
|
Datasheet | EFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.5 CFM (0.266m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.5dB(A) | 1.8 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|

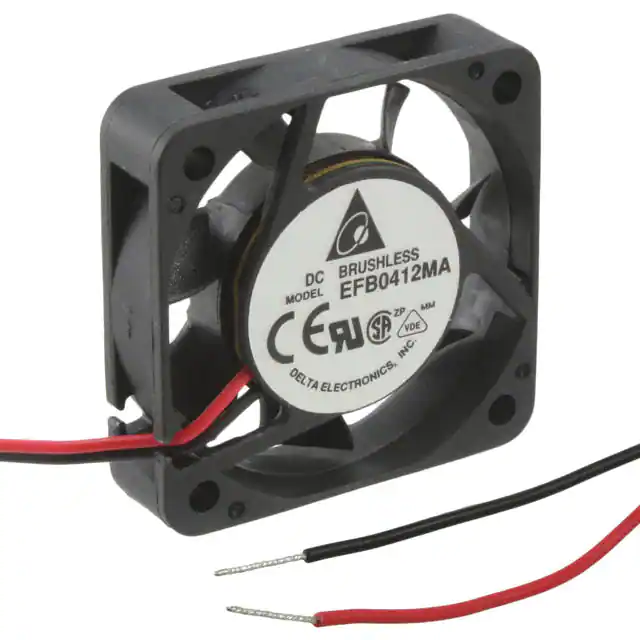

EFB0412MAFAN AXIAL 40X10MM 12VDC WIRE |
3,366 |
|
Datasheet | EFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.9 CFM (0.165m³/min) | 0.088 in H2O (21.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 720 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|

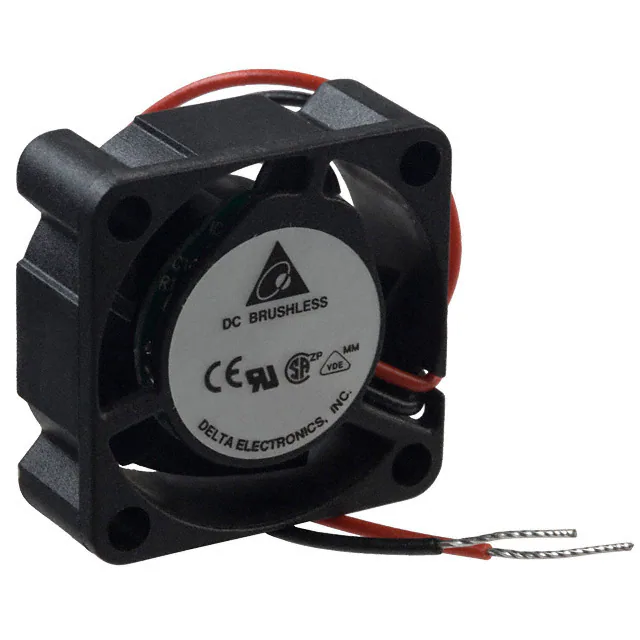

AFB02512HHAFAN AXIAL 25X10MM 12VDC WIRE |
1,122 |
|
Datasheet | AFB | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 960 mW | 13000 RPM | 2 Wire Leads | - | - | - | 0.024 lb (10.89 g) |
|

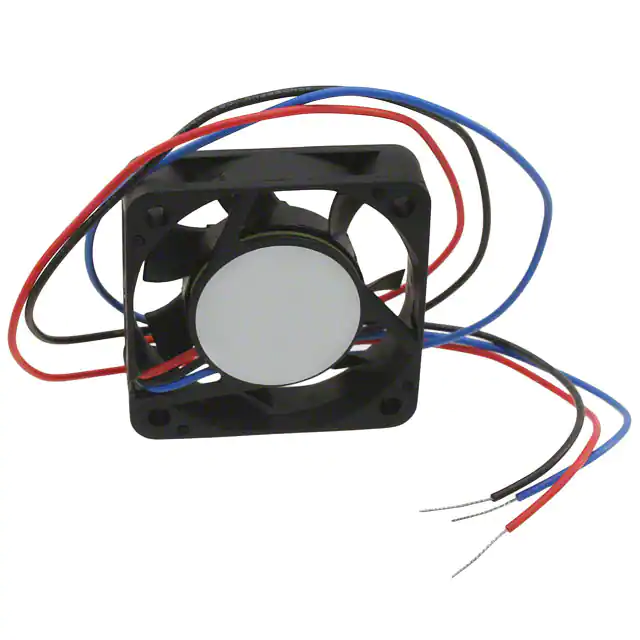

EFB0405HHA-F00FAN AXIAL 40X10MM BALL 5VDC WIRE |
3,804 |
|
Datasheet | EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.174 in H2O (43.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 950 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
EFB0412HA-R00FAN AXIAL 40X10MM 12VDC WIRE |
2,056 |
|
Datasheet | EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.5dB(A) | 960 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.032 lb (14.51 g) |
|
|
AFB0412LA-AFAN AXIAL 40X10MM 12VDC WIRE |
2,462 |
|
Datasheet | AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 240 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|

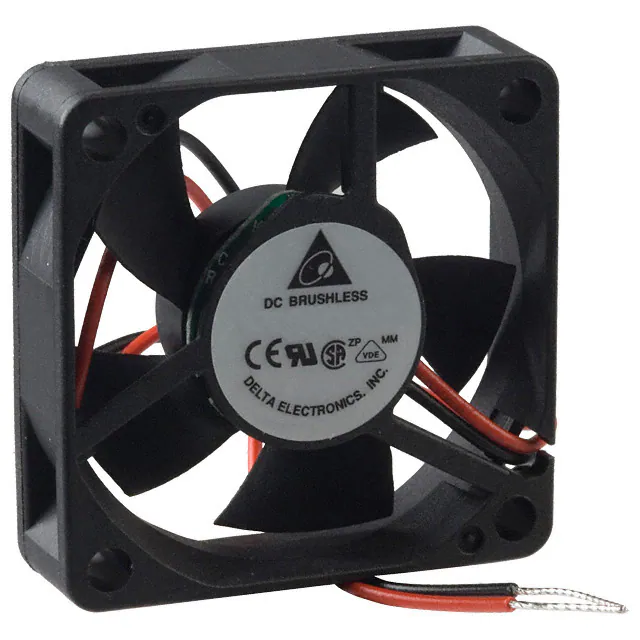

AFB03512HAFAN AXIAL 35X10MM 12VDC WIRE |
2,204 |
|
Datasheet | AFB | - | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | 1.08 W | - | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
