DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0612LCFAN AXIAL 60X13MM 12VDC WIRE |
106 |
|
Datasheet | AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 15.4 CFM (0.431m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 960 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
AFB0612EH-AR00FAN AXIAL 60X25.4MM 12VDC WIRE |
180 |
|
Datasheet | AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0624HH-AR00FAN AXIAL 60X25.4MM 24VDC WIRE |
176 |
|
Datasheet | AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 2.64 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
EUB0912HF-03P1AXIAL 92X42MM 12VDC IP51 |
560 |
|
Datasheet | EUB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | 0.227 in H2O (56.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.5dB(A) | 1.44 W | 3350 RPM | 4 Wire Leads | IP51 - Dust Protected | -40°C ~ 40°C | CE, cURus, TUV | - |
|
EFB0612HA-F00FAN AXIAL 60X10MM 12VDC WIRE |
633 |
|
Datasheet | EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 18.0 CFM (0.504m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.44 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|

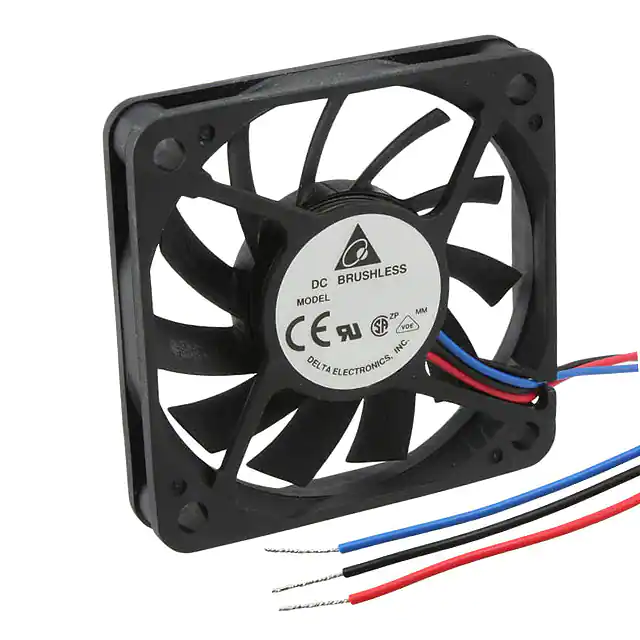

EFB0612LA-R00FAN AXIAL 60X10MM 12VDC WIRE |
315 |
|
Datasheet | EFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 13.4 CFM (0.375m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.5dB(A) | 840 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
BFB0524HH-F00FAN BLOWER 51.3X15MM 24VDC WIRE |
177 |
|
Datasheet | BFB | Bulk | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 15.00mm | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | Blower | Speed Sensor (Tach) | 45.0dB(A) | 2.64 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
AFB0712LBFAN AXIAL 70X15MM 12VDC WIRE |
178 |
|
Datasheet | AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.5dB(A) | 960 mW | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
EFB0424VHD-CP0AXIAL 40X20 24VDC PWM |
325 |
|
Datasheet | EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.368 in H2O (91.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.3dB(A) | 1.44 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB0505MA-CFAN BLOWER 50X10.3MM 5VDC WIRE |
284 |
|
Datasheet | BFB | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.30mm | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | Blower | Locked Rotor Protection | 28.0dB(A) | 500 mW | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.05 lb (22.68 g) |
