DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB0948VHEFAN DC AXIAL 48V 92X38 3800RPM |
1,123 |
|
- |
* | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0824VH-R00FAN AXIAL 80X25.4MM 24VDC WIRE |
3,376 |
|
Datasheet | AFB | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.36 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

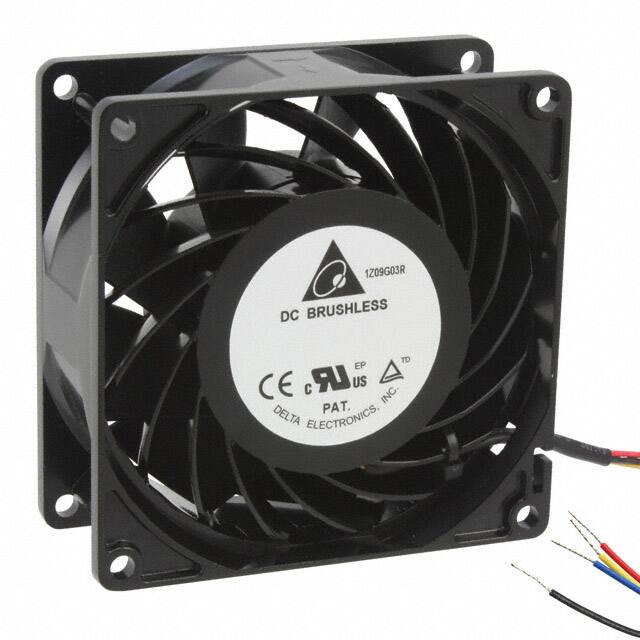

THA0948BEFAN AXIAL 92X38MM 48VDC WIRE |
4,714 |
|
Datasheet | THA | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 189.7 CFM (5.31m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 67.2 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.1 lbs (500.0 g) |
|

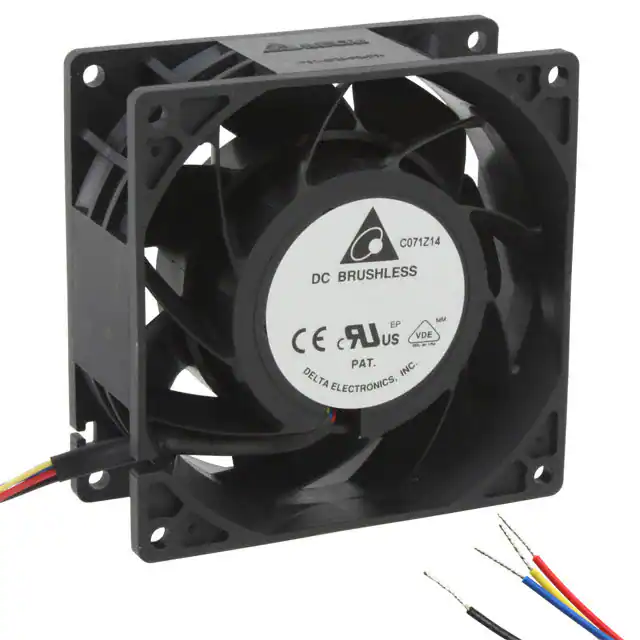

TFA0948AEFAN AXIAL 92X38MM 48VDC WIRE |
4,441 |
|
Datasheet | TFA | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 67.1 CFM (1.88m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.8dB(A) | 5.76 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|

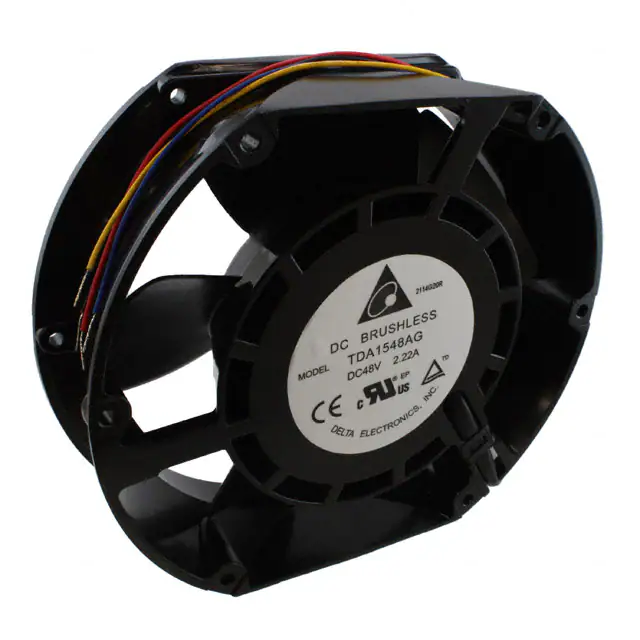

TDA1548AGFAN AXIAL 172X50.8MM 48VDC WIRE |
3,064 |
|
Datasheet | TDA | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 402.1 CFM (11.26m³/min) | 2.854 in H2O (710.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.3dB(A) | 88.8 W | 5400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.7 lbs (771.1 g) |
|
TDA1748AGFAN AXIAL 172X50.8MM 48VDC WIRE |
4,999 |
|
Datasheet | TDA | Box | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 413.0 CFM (11.56m³/min) | 2.820 in H2O (702.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 88.8 W | 5400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lb (800.0 g) |
|
THB2048CTFAN AXIAL 208X70MM 48VDC WIRE |
2,802 |
|
Datasheet | THB | Box | Obsolete | 48VDC | Round - 208mm Dia | 70.00mm | 827.4 CFM (23.17m³/min) | 2.690 in H2O (670.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.6dB(A) | 230.4 W | 5800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 3.5 lbs (1.6 kg) |
|
PFC1248DE-F00FAN AXIAL 120X38MM 48VDC WIRE |
1,008 |
|
Datasheet | PFC | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|

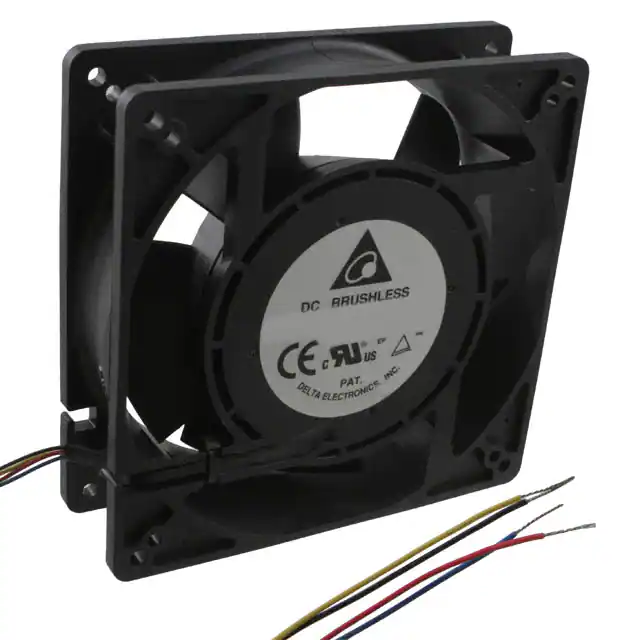

TDA1348AE-EPFAN AXIAL 127X38MM 48VDC WIRE |
3,937 |
|
Datasheet | TDA | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | 1.456 in H2O (362.7 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -27.4 ~ 158°F (-33 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
AFB0405MB-R00FAN AXIAL 40X15MM BALL 5VDC WIRE |
1,998 |
|
Datasheet | AFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.5dB(A) | 850 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
