DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0912EHEFAN AXIAL 92X38MM 12VDC WIRE |
1,076 |
|
Datasheet | PFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.16 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0812UHE-T500FAN AXIAL 80X38MM 12VDC WIRE |
3,116 |
|
Datasheet | PFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.6 W | 7500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
AFB1248EHE-CF00FAN AXIAL 120X38MM 48VDC WIRE |
4,862 |
|
Datasheet | AFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 23 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
PFB0848UHEFAN AXIAL 80X38MM 48VDC WIRE |
1,022 |
|
Datasheet | PFB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 20.16 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
|
BFB1224EH-AFAN BLOWER 120X32MM 24VDC WIRE |
3,136 |
|
Datasheet | BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 54.9 CFM (1.54m³/min) | 3.485 in H2O (868.1 Pa) | Ball | Blower | Locked Rotor Protection | 62.0dB(A) | 26.88 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
|
FFB1348EHE-R00FAN AXIAL 127X38MM 48VDC WIRE |
2,917 |
|
- |
FFB | Bulk | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.5dB(A) | 32.16 W | 3850 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
FFB1312EHEFAN AXIAL 127X38MM 12VDC WIRE |
4,179 |
|
Datasheet | FFB | Tray | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.5dB(A) | 32.88 W | 3850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|

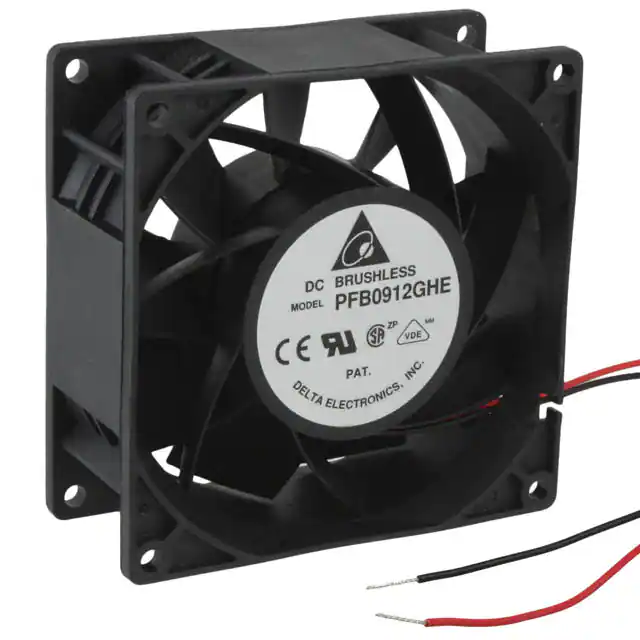

PFB0912GHEFAN AXIAL 92X38MM 12VDC WIRE |
4,628 |
|
Datasheet | PFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 129.3 CFM (3.62m³/min) | 1.015 in H2O (252.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.5dB(A) | 14.64 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
FFB1312VHE-F00FAN AXIAL 127X38MM 12VDC WIRE |
2,224 |
|
Datasheet | FFB | Tray | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | 0.504 in H2O (125.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 15.84 W | 3050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
FFB1312EHE-F00FAN AXIAL 127X38MM 12VDC WIRE |
3,055 |
|
Datasheet | FFB | Bulk | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.5dB(A) | 32.88 W | 3850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
