DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1012MFAN BLOWER 97.2X33MM 12VDC WIRE |
3,661 |
|
Datasheet | BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.748 in H2O (186.3 Pa) | Ball | Blower | Locked Rotor Protection | 49.0dB(A) | 6.84 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
BFB1012HFAN BLOWER 97.2X33MM 12VDC WIRE |
2,644 |
|
Datasheet | BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Protection | 52.0dB(A) | 9.6 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
BFB1012LFAN BLOWER 97.2X33MM 12VDC WIRE |
1,235 |
|
Datasheet | BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 19.1 CFM (0.535m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Blower | Locked Rotor Protection | 45.0dB(A) | 3.84 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
GFB0412SHS-AF00FAN AXIAL DUAL 40X56MM 12VDC |
1,161 |
|
Datasheet | GFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 23.3 CFM (0.652m³/min) | 1.748 in H2O (435.4 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 12.24 W | 16200 Front, 7800 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
AFB0912SHFAN 12VDC 102.59CFM 92MM X 4MM |
3,815 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
QFR0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2,749 |
|
Datasheet | QFR | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 13.8 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|

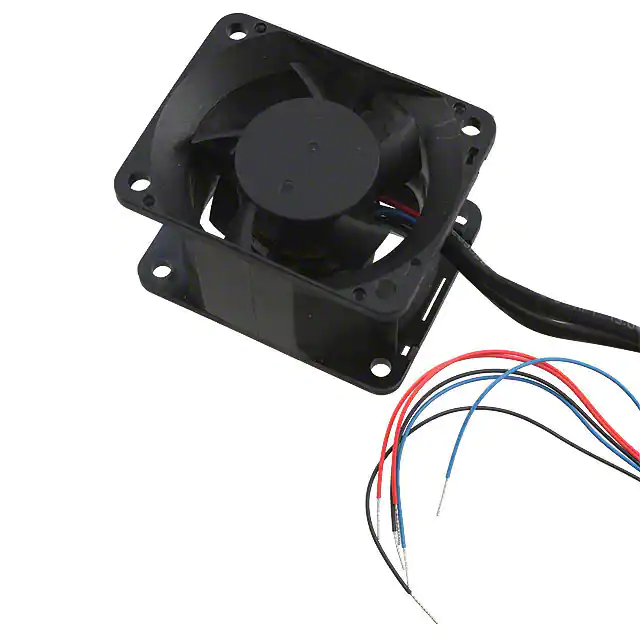

GFB0412VHF-F00FAN AXIAL DUAL 40X32MM 12VDC |
1,929 |
|
Datasheet | GFB | Bulk | Obsolete | 12VDC | Rectangular - 40mm L x 50mm H | 32.00mm | 19.7 CFM (0.552m³/min) | 0.554 in H2O (138.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 51.5dB(A) | 4.32 W | 9500 Front, 9100 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.101 lb (45.81 g) |
|
BFB1012H-F00FAN BLOWER 97.2X33MM 12VDC WIRE |
3,613 |
|
Datasheet | BFB | Box | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 9.6 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
BFB1012M-F00FAN BLOWER 97.2X33MM 12VDC WIRE |
1,877 |
|
Datasheet | BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.748 in H2O (186.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 6.84 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|

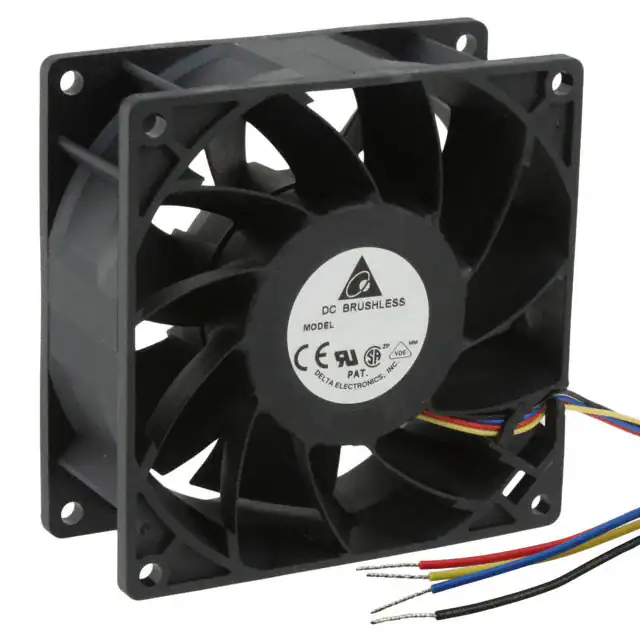

FFC0912DE-SP13FAN AXIAL 92X38MM 12VDC WIRE |
4,195 |
|
Datasheet | FFC | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.681 in H2O (169.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 10.56 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.408 lb (185.07 g) |
