DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

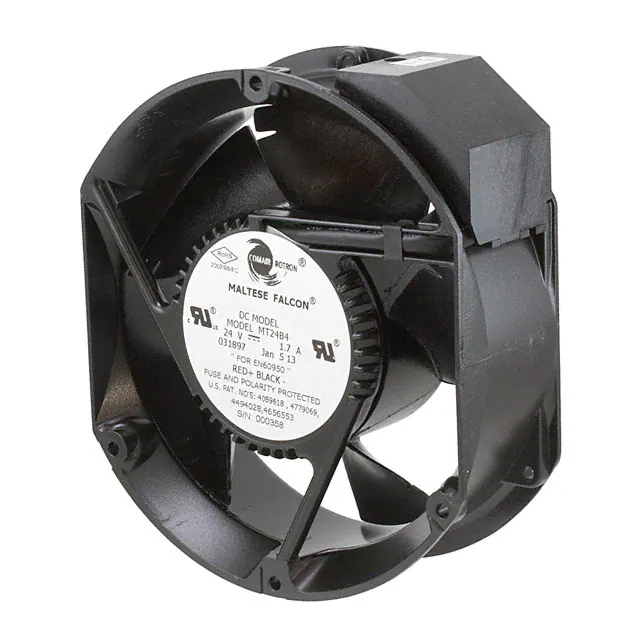

19031897AFAN AXIAL 171.5X55MM 24V MT24B4 |
680 |
|
Datasheet | Maltese | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 57.1dB(A) | 35.5 W | 3450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 1.8 lbs (816.5 g) |
|

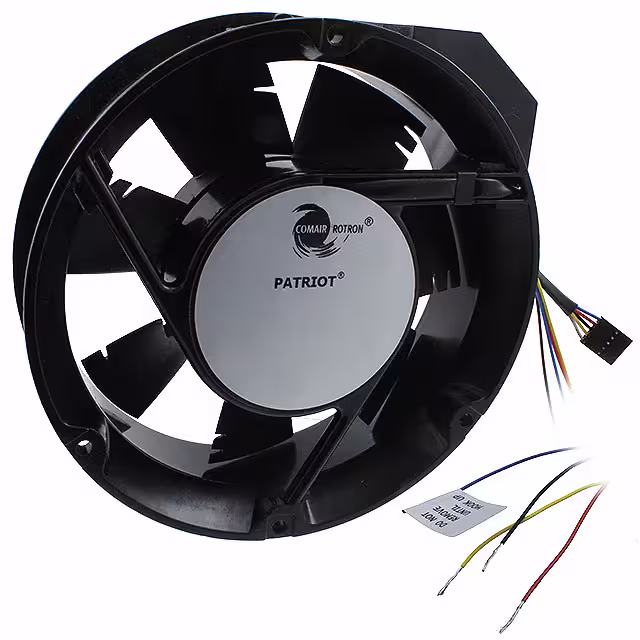

19039695AFAN AXIAL 171.4X50.8MM PQD24Z3A2 |
4,286 |
|
Datasheet | Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 35 W | 4450 RPM | 5 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | CE, UL | - |
|
17001179AFAN AXIAL 24VDC GLD24U3E2X-E3 |
116 |
|
Datasheet | - | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 240.0 CFM (6.72m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 39.1 W | 5200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

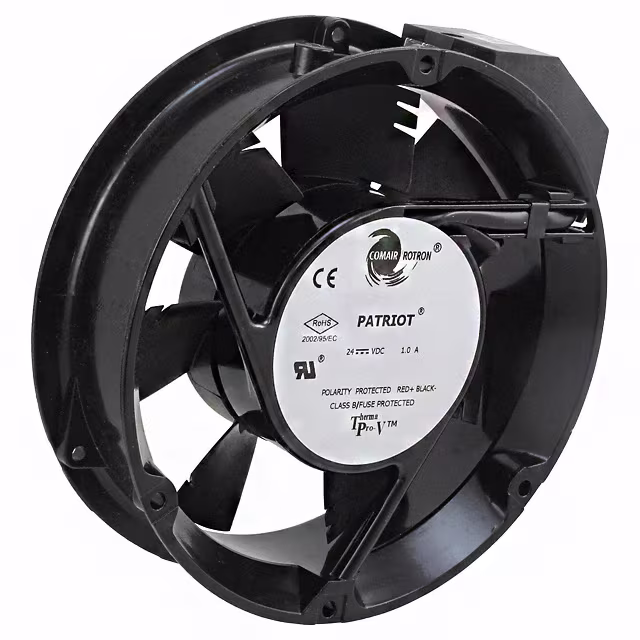

19039299AFAN AXIAL 172.7X50.8MM PQ24S4HX |
250 |
|
Datasheet | Patriot | Bulk | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Temperature Dependent Speed Control | 51.2dB(A) | 20.3 W | 3500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
|
19031328AFAN AXIAL 171.5X50.8MM JQ48B7 |
128 |
|
Datasheet | Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 54.3dB(A) | 20.1 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|
17001197AFAN AXIAL 24VDC PQD24U3E2X-E3 |
2,059 |
|
Datasheet | Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 332.0 CFM (9.30m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

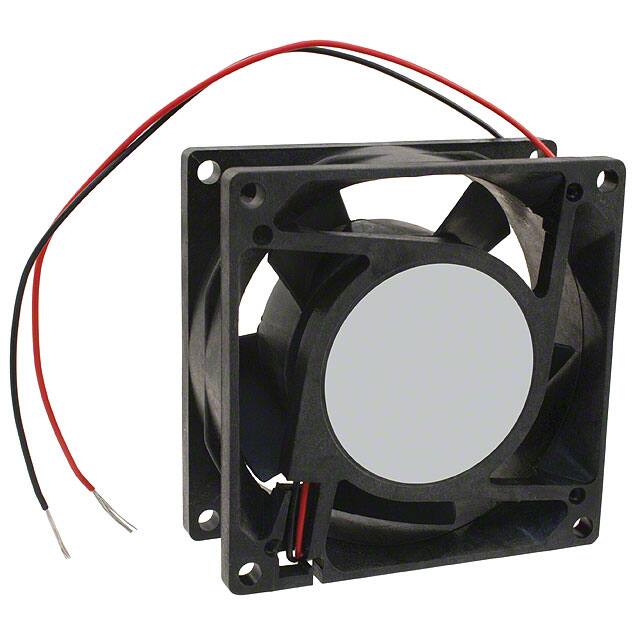

19030613AFAN AXIAL 80X32MM 12VDC ST12K3 |
167 |
|
Datasheet | Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 40.0 CFM (1.12m³/min) | 0.325 in H2O (80.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 44.2dB(A) | 4.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.397 lb (180.08 g) |
|
19028933AFAN AXIAL 79.8X41.8MM 12V SD12B1 |
107 |
|
Datasheet | Sprite | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|
19031706AFAN AXIAL 79.8X41.8MM 24V SD24K5 |
266 |
|
Datasheet | Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 50.0 CFM (1.40m³/min) | 0.256 in H2O (63.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 55.4dB(A) | 7.7 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|

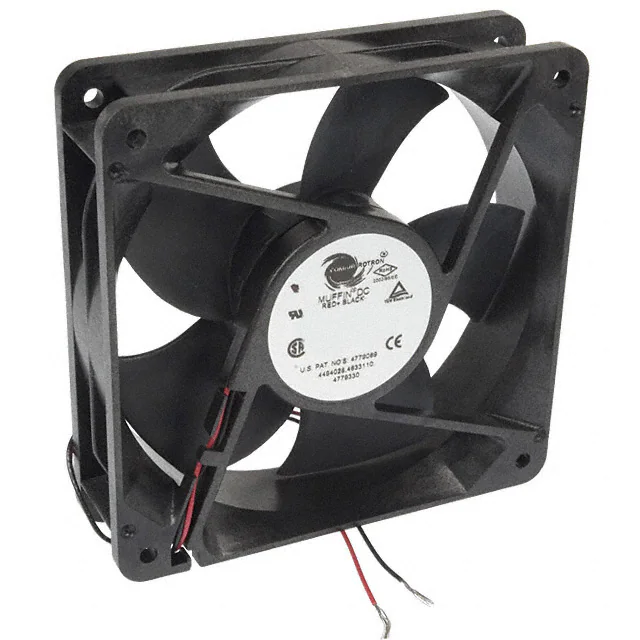

19032489AFAN AXIAL 120X32MM 12VDC MC12B3 |
266 |
|
Datasheet | Muffin | Box | Active | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.8dB(A) | 7.9 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.529 lb (239.95 g) |
