DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

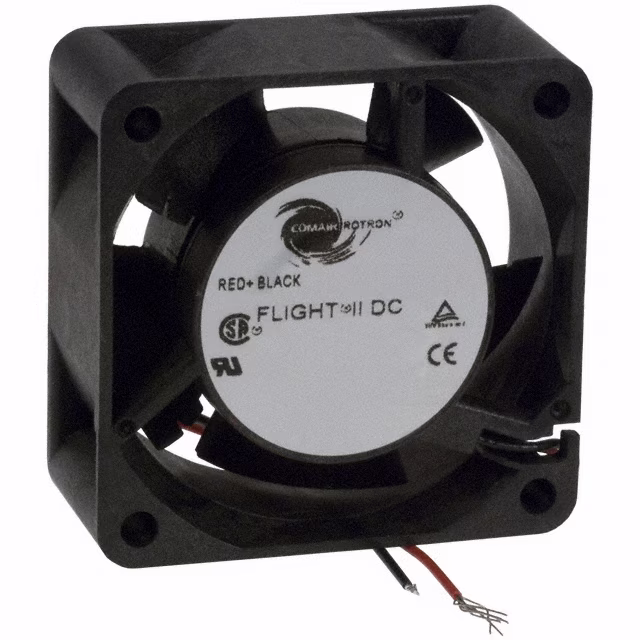

19031963AFAN AXIAL 60X25MM BALL 5V FS05B3 |
2,988 |
|
Datasheet | Flight II 60 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 33.9dB(A) | 2 W | 5000 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|
19031595AFAN AXIAL 92X25.4MM 12VDC FN12K3 |
1,810 |
|
Datasheet | Flight II 90 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 48.6dB(A) | 5 W | 3982 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
|
19031406AFAN AXIAL 92X25.4MM 24VDC FN24K3 |
2,768 |
|
Datasheet | Flight II 90 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 48.6dB(A) | 5.5 W | 3750 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
19032126AFAN 12VDC SPRINT ST12G3 |
1,842 |
|
Datasheet | Sprint | - | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 24.0 CFM (0.672m³/min) | 0.128 in H2O (31.9 Pa) | Sleeve | Tubeaxial | - | 35.5dB(A) | 1.4 W | 2490 RPM | 2 Wire Leads | - | - | - | 0.397 lb (180.08 g) |
|
|
19032568AFAN AXIAL 80X32MM 12VDC ST12B3X |
1,242 |
|
Datasheet | Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | - |
|
19031159AFAN AXIAL 60X25MM 24VDC FS24H3 |
1,096 |
|
Datasheet | Flight II 60 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.0 CFM (0.336m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | - | 28.5dB(A) | 1.1 W | 3448 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|

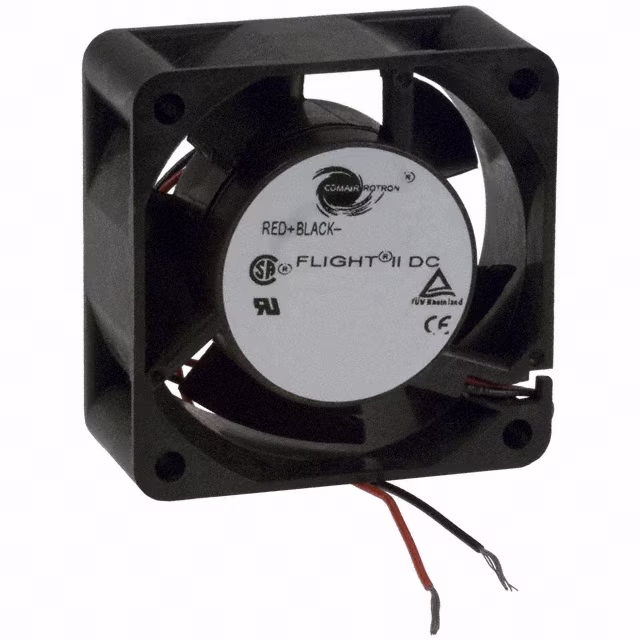

19032859AFAN AXIAL 60X25MM 48VDC FS48K3 |
3,443 |
|
Datasheet | Flight II 60 | - | Obsolete | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | - | - | 4 W | 5930 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.244 lb (110.68 g) |
|
19028934AFAN AXIAL 79.8X41.8MM 24V SD24B1 |
3,628 |
|
Datasheet | Sprite | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|
19030577AFAN AXIAL 120X32MM 24VDC MC24H3 |
4,959 |
|
Datasheet | Muffin | - | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 80.0 CFM (2.24m³/min) | 0.269 in H2O (67.0 Pa) | Ball | Tubeaxial | - | 41.9dB(A) | 4.8 W | 3000 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
|
19032579AFAN WHIFFET 24VDC WT24B3QDNX |
3,791 |
|
Datasheet | - | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
