DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD1206PTS3.13.GNFAN AXIAL 60X25MM 12VDC WIRE |
1,982 |
|
Datasheet | KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 1.1 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD1206PTS3.GNFAN AXIAL 60X25MM 12VDC WIRE |
2,883 |
|
Datasheet | KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|

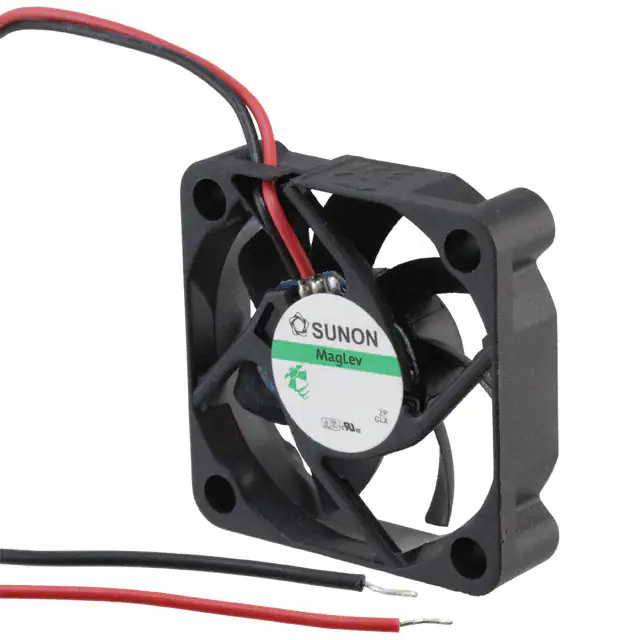

HA40101V4-000U-999FAN AXIAL 40X10MM 12VDC WIRE |
2,729 |
|
Datasheet | MagLev® HA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.060 in H2O (14.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 18.2dB(A) | 800 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.032 lb (14.51 g) |
|
|
MF45101V2-1000U-A99Thermal Products |
2,423 |
|
Datasheet | MF | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.1dB(A) | 570 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF45101V1-1000U-A99Thermal Products |
2,927 |
|
Datasheet | MF | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.5dB(A) | 1.2 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD1205PHS1.GNFAN AXIAL 50X15MM 12VDC WIRE |
2,440 |
|
Datasheet | KD | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | - | 33.0dB(A) | 1.5 W | 5800 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD1205PHS2.GNFAN AXIAL 50X15MM 12VDC WIRE |
3,352 |
|
Datasheet | KD | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 1 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD1205PHS3.GNFAN AXIAL 50X15MM 12VDC WIRE |
4,440 |
|
Datasheet | KD | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 22.0dB(A) | 700 mW | 3700 RPM | 2 Wire Leads | - | - | - | - |
|
|
MF40100V2-1000U-G99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
3,147 |
|
Datasheet | MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.6 dB(A) | 470 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF40101V2-1000U-G9912VDC FAN 40X10MM ALARM |
1,413 |
|
Datasheet | MF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.6dB(A) | 0.48 W | 5800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
