DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LB1424S5D01FAN AXIAL 140X51MM 24VDC WIRE |
4,885 |
|
Datasheet | San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 286.2 CFM (8.01m³/min) | 0.960 in H2O (239.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 33.12 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|

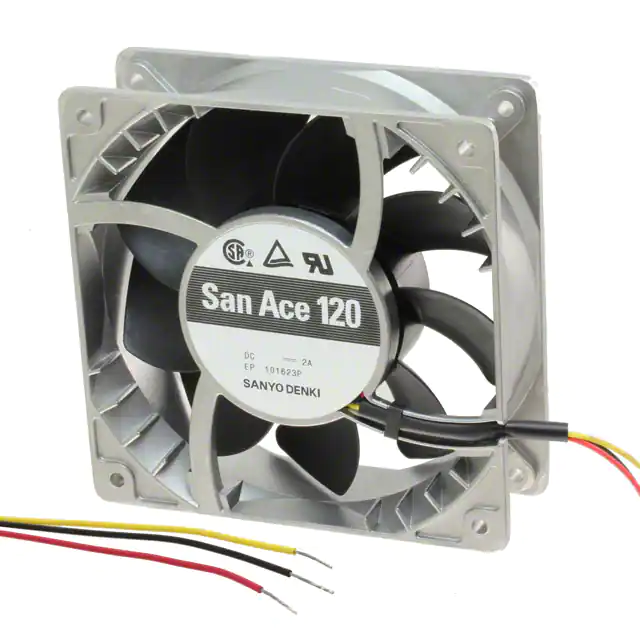

9SG1212G101FAN AXIAL 119X38MM 12VDC WIRE |
3,074 |
|
Datasheet | San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|

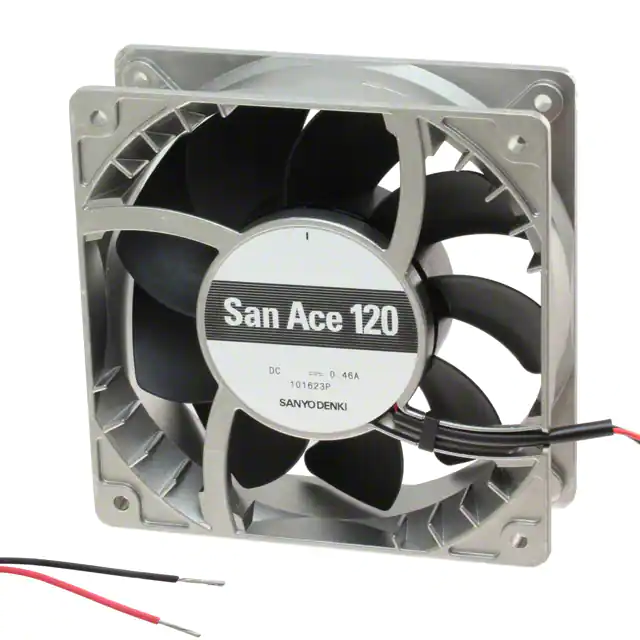

9SG1212G102FAN AXIAL 119X38MM 12VDC WIRE |
3,718 |
|
Datasheet | San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 48 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
9SG1212P1G01FAN AXIAL 119X38MM 12VDC WIRE |
4,367 |
|
Datasheet | San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1224G101FAN AXIAL 119X38MM 24VDC WIRE |
1,684 |
|
Datasheet | San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1224G102FAN AXIAL 119X38MM 24VDC WIRE |
2,316 |
|
Datasheet | San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 48 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1224H102FAN AXIAL 119X38MM 24VDC WIRE |
1,530 |
|
Datasheet | San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 142.0 CFM (3.98m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 11 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
9SG1224P1G01FAN AXIAL 119X38MM 24VDC WIRE |
3,702 |
|
Datasheet | San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1248G101FAN AXIAL 119X38MM 48VDC WIRE |
4,921 |
|
Datasheet | San Ace 120 | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9SG1248P1G01FAN AXIAL 119X38MM 48VDC WIRE |
4,501 |
|
Datasheet | San Ace 120 | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 48 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
