DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WP0924B401FAN AXIAL 92X25MM 24VDC WIRE |
1,318 |
|
Datasheet | San Ace 92W | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 31.8 CFM (0.890m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 1.2 W | 2000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WP0924H401FAN AXIAL 92X25MM 24VDC WIRE |
2,643 |
|
Datasheet | San Ace 92W | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.4 W | 3150 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
9WS1212H101FAN AXIAL 119X38MM 12VDC WIRE |
4,259 |
|
Datasheet | San Ace 120WS | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.64 W | 2600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (259.91 g) |
|
9WS1212H1011FAN AXIAL 119X38MM 12VDC WIRE |
4,370 |
|
Datasheet | San Ace 120WS | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.64 W | 2600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (259.91 g) |
|
|
9WS1212H102FAN AXIAL 119X38MM 12VDC WIRE |
4,071 |
|
Datasheet | San Ace 120WS | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.64 W | 2600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (259.91 g) |
|
|
9WS1212H1021FAN AXIAL 119X38MM 12VDC WIRE |
2,246 |
|
Datasheet | San Ace 120WS | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.64 W | 2600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (259.91 g) |
|
|
9WS1248M102FAN AXIAL 119X38MM 48VDC WIRE |
2,020 |
|
Datasheet | San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.52 W | 2600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.573 lb (259.91 g) |
|
109L0812S401FAN AXIAL 80X25MM 12VDC WIRE |
2,359 |
|
Datasheet | San Ace 80L | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
109L0824H401FAN AXIAL 80X25MM 24VDC WIRE |
4,739 |
|
Datasheet | San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.16 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

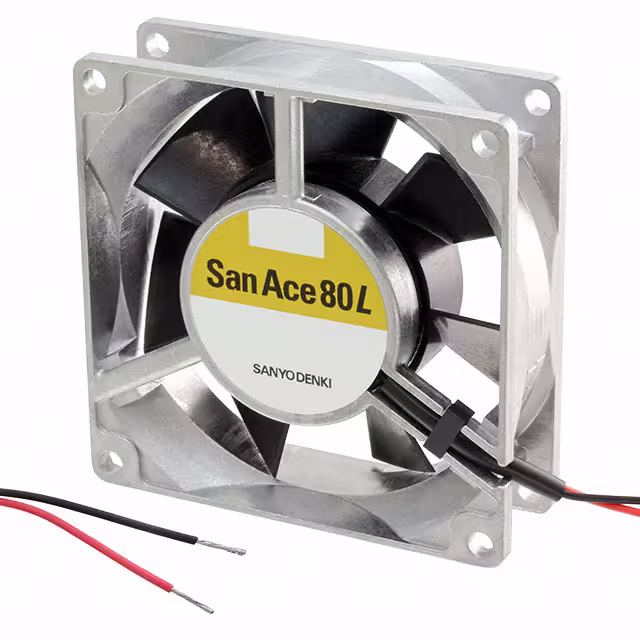

109L0824H402FAN AXIAL 80X25MM 24VDC WIRE |
3,616 |
|
Datasheet | San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
