DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0812S4D00180X25MM 12V, HIGH PERF LONG LIFE |
4,352 |
|
Datasheet | San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812G4D00180X25MM 12V, HIGH PERF LONG LIFE |
1,804 |
|
Datasheet | San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|

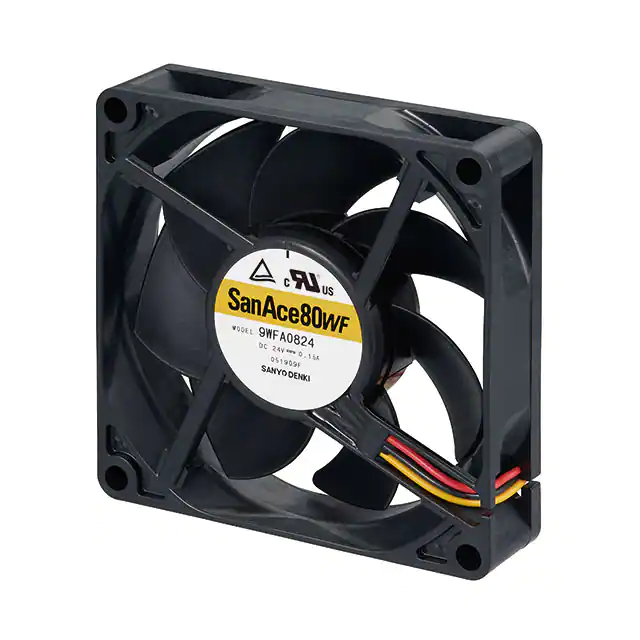

9WFA0824G6D001FAN AXIAL 80X20MM 24VDC WIRE |
2,964 |
|
Datasheet | San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 3.6 W | 6000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.232 lb (105.23 g) |
|
9LG0824P4H001FAN AXIAL 80X25MM 24VDC WIRE |
4,149 |
|
Datasheet | San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.2 W | 3700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WV0924C1D00192X38MM 24V,SPLASH PROOF DC LCKR |
2,523 |
|
Datasheet | San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | - | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9WS0812F402FAN AXIAL 80X25MM 12VDC WIRE |
3,263 |
|
Datasheet | San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812F4021FAN AXIAL 80X25MM 12VDC WIRE |
1,819 |
|
Datasheet | San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
2,304 |
|
Datasheet | San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.92 W | 3100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812M402FAN AXIAL 80X25MM 12VDC WIRE |
1,066 |
|
Datasheet | San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 2200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812M4021FAN AXIAL 80X25MM 12VDC WIRE |
1,416 |
|
Datasheet | San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.094 in H2O (23.5 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 2200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
