DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9HV0812G1001FAN AXIAL 80X38MM 12VDC WIRE |
4,170 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9HV0812G10011FAN AXIAL 80X38MM 12VDC WIRE |
3,047 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9WG1212F102-EFAN AXIAL 120X38MM 12VDC WIRE |
4,217 |
|
Datasheet | San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 3.36 W | 2280 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212M102-EFAN AXIAL 120X38MM 12VDC WIRE |
1,330 |
|
Datasheet | San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.52 W | 1950 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224E102-EFAN AXIAL 120X38MM 24VDC WIRE |
4,997 |
|
Datasheet | San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 8.16 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224H102-EFAN AXIAL 120X38MM 24VDC WIRE |
3,995 |
|
Datasheet | San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224M102-EFAN AXIAL 120X38MM 24VDC WIRE |
3,984 |
|
Datasheet | San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.64 W | 1950 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|

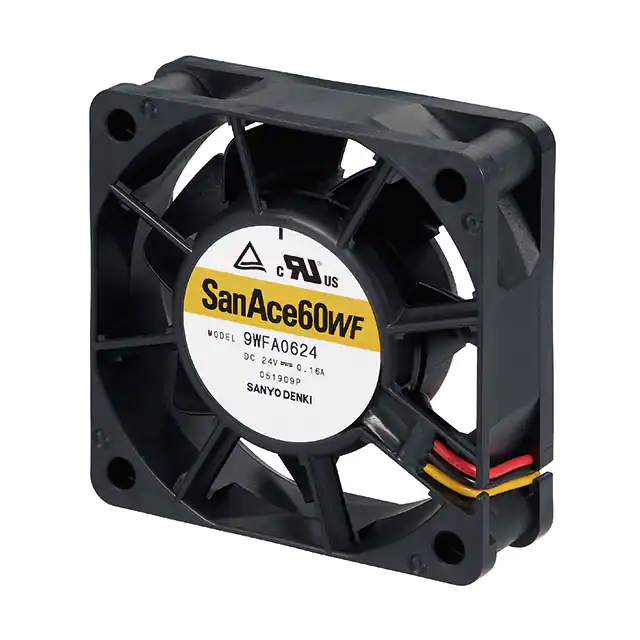

9WFA0624G6002FAN AXIAL 60X20MM 24VDC WIRE |
2,867 |
|
Datasheet | San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 27.9 CFM (0.781m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 3.8 W | 7700 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.188 lb (85.28 g) |
|
|
9WPA0424G3001FAN AXIAL 40X28MM 24VDC WIRE |
3,046 |
|
Datasheet | San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0412G30011FAN AXIAL 40X28MM 12VDC WIRE |
1,844 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
