DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9BMB24F2D01FAN BLOWER 97.1X33MM 24VDC WIRE |
4,763 |
|
Datasheet | San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 36.7 CFM (1.03m³/min) | 1.647 in H2O (410.0 Pa) | Ball | Blower | Locked Rotor Sensor | 56.0dB(A) | 10.8 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB24H2D01FAN BLOWER 97.1X33MM 24VDC WIRE |
2,020 |
|
Datasheet | San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Sensor | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB12H201FAN BLOWER 97.1X33MM 12VDC WIRE |
2,809 |
|
Datasheet | San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
9CR0412H502FAN AXIAL DUAL 40X56MM 12VDC |
3,122 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating | 54.0dB(A) | 8.64 W | 13300 Front, 9300 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
|
9BMB12G2D01FAN BLOWER 97.1X33MM 12VDC WIRE |
2,184 |
|
Datasheet | San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Sensor | 61.0dB(A) | 21.6 W | 5750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
9WP0812G401FAN AXIAL 80X25MM 12VDC WIRE |
1,422 |
|
Datasheet | San Ace 80W | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9G1224F1011FAN AXIAL 119X38MM 24VDC WIRE |
4,551 |
|
Datasheet | San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 2280 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1224F1D01FAN AXIAL 119X38MM 24VDC WIRE |
3,204 |
|
Datasheet | San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 3.84 W | 2280 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|

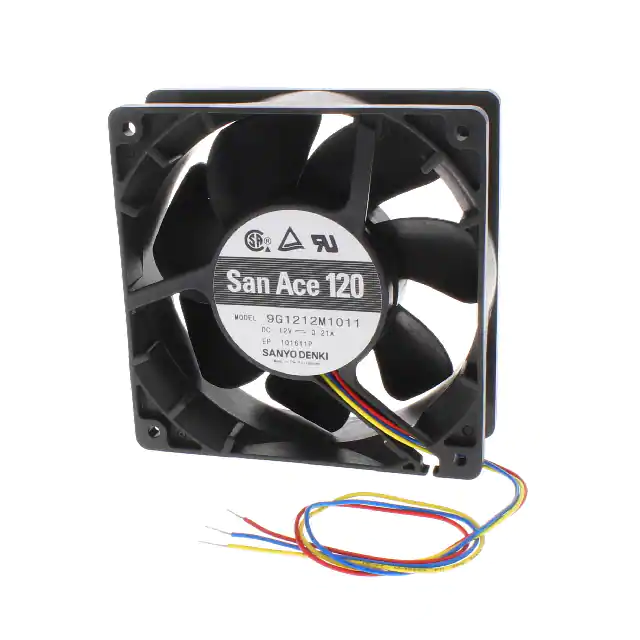

9G1212M1011FAN AXIAL 119X38MM 12VDC WIRE |
1,369 |
|
Datasheet | San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1212M1D01FAN AXIAL 120X38MM 12VDC WIRE |
4,232 |
|
Datasheet | San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
