DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9TN24P1H01FAN AXIAL 150X35MM 24VDC WIRE |
402 |
|
Datasheet | San Ace C150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 35.00mm | 135.0 CFM (3.78m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 14.9 W | 3800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9LG0424P3G00140X28MM 24VDC TACH PWM |
4,620 |
|
Datasheet | San Ace 40L | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 32.9 CFM (0.921m³/min) | 7.150 in H2O (1780.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 22.8 W | 33500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

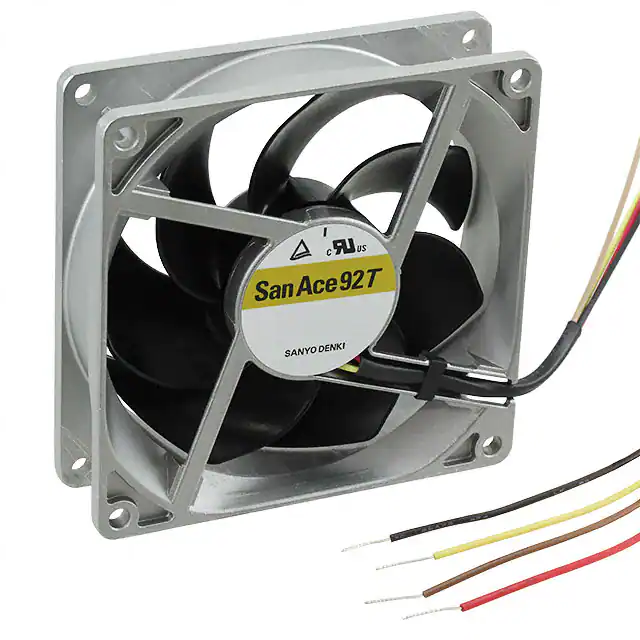

9GT0924P4J001FAN AXIAL 92X25MM 24VDC WIRE |
423 |
|
Datasheet | San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

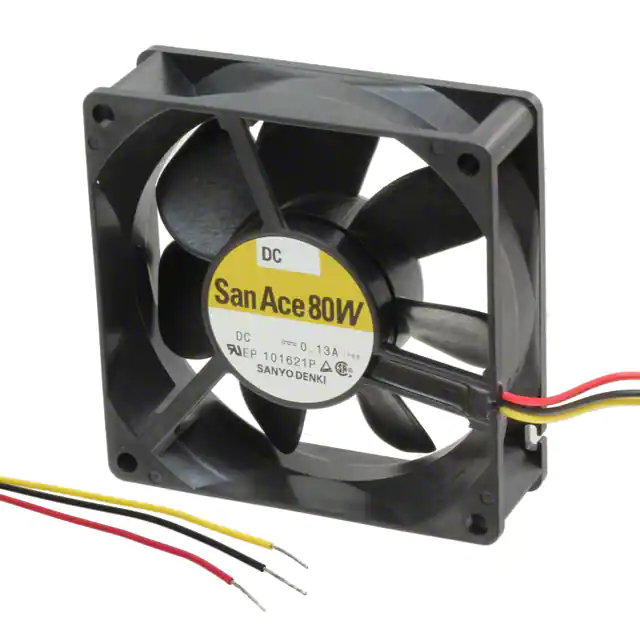

9WV0848P1H001FAN AXIAL 80X38MM 48VDC WIRE |
297 |
|
Datasheet | San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 1.770 in H2O (440.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 36 W | 9700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.518 lb (234.96 g) |
|

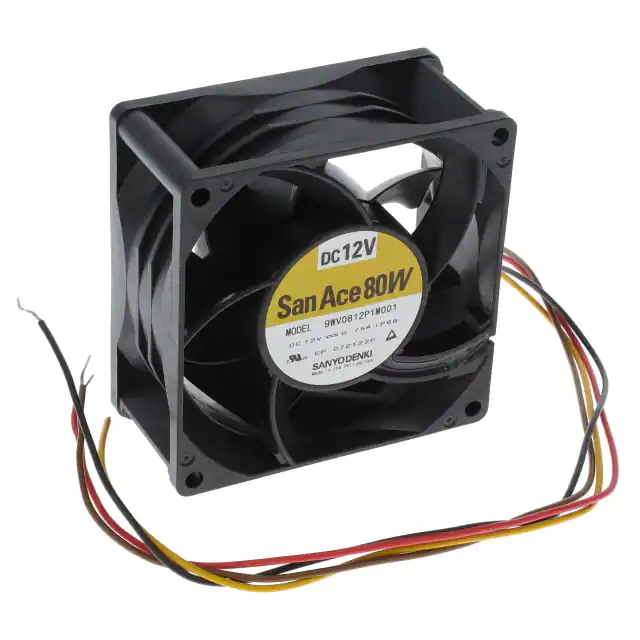

9WV0812P1M001FAN AXIAL 80X38MM 12VDC WIRE |
3,780 |
|
Datasheet | San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 81.0 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 9 W | 6000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

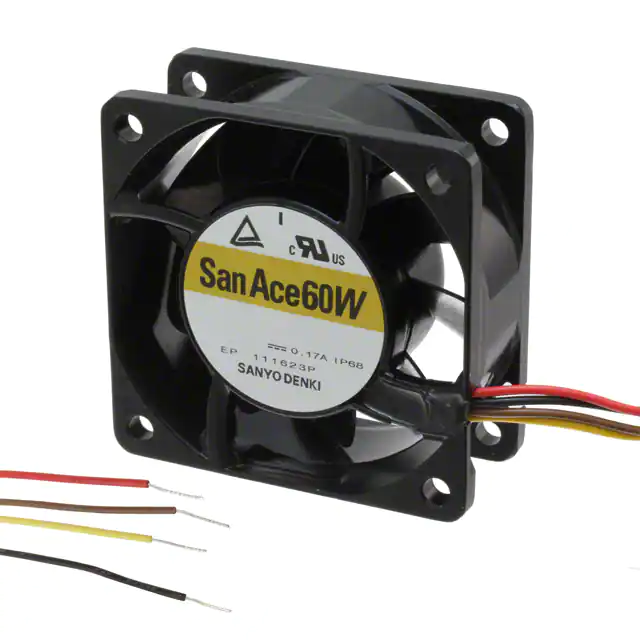

9WL0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
269 |
|
Datasheet | San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 2.04 W | 6150 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WL0624P4H001FAN AXIAL 60X25MM 24VDC WIRE |
149 |
|
Datasheet | San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 6150 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
9WL0624P4J001FAN AXIAL 60X25MM 24VDC WIRE |
4,896 |
|
Datasheet | San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.56 W | 8650 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WL0624P4S001FAN AXIAL 60X25MM 24VDC WIRE |
1,313 |
|
Datasheet | San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.16 W | 11000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WL0612P4S001FAN AXIAL 60X25MM 12VDC WIRE |
123 |
|
Datasheet | San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
