DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0848G101FAN AXIAL 80X38MM 48VDC WIRE |
1,925 |
|
Datasheet | San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
9CRA0412P4K03FAN AXIAL DUAL 40X48MM 12VDC |
3,458 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 32.5 CFM (0.910m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 19.2 W | 17500 Front, 11700 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|
9HVA0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
1,201 |
|
Datasheet | San Ace 40 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 37.1 CFM (1.04m³/min) | 9.240 in H2O (2300.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 31.2 W | 38000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GA0812P1G61FAN AXIAL 80X38MM 12VDC WIRE |
2,705 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 100.6 CFM (2.82m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 14.4 W | 10500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
9WPA0412H6001FAN AXIAL 40X20MM 12VDC WIRE |
2,999 |
|
Datasheet | San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 900 mW | 8800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
9BFB24P2H003FAN BLOWER 120X32MM 24VDC WIRE |
4,112 |
|
Datasheet | San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 56.5 CFM (1.58m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 26.4 W | 3750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.75 lb (340.19 g) |
|
|
9WPA0612P4G001FAN AXIAL 60X25MM 12VDC WIRE |
4,711 |
|
Datasheet | San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 11.16 W | 12000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9TD12P6G001FAN IMP MTRZD 70X20MM 12VDC |
2,221 |
|
Datasheet | San Ace C70 | Bulk | Active | 12VDC | Round - 70mm Dia | 20.00mm | 39.9 CFM (1.12m³/min) | 2.240 in H2O (557.9 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 12 W | 9200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
9GT0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
2,913 |
|
Datasheet | San Ace 40T | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 3.72 W | 11700 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.121 lb (54.88 g) |
|

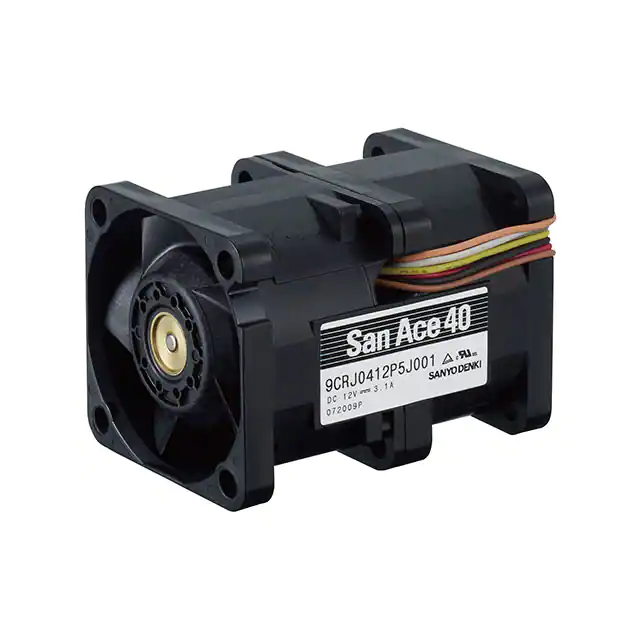

9CRJ0412P5J001FAN AXIAL DUAL 40X56MM 12VDC |
1,248 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.4 CFM (1.05m³/min) | 9.640 in H2O (2401.2 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 37.2 W | 36200 Front, 3200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
