DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG1448H5D001FAN AXIAL 140X51MM 48VDC WIRE |
1,455 |
|
Datasheet | San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 14.9 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|

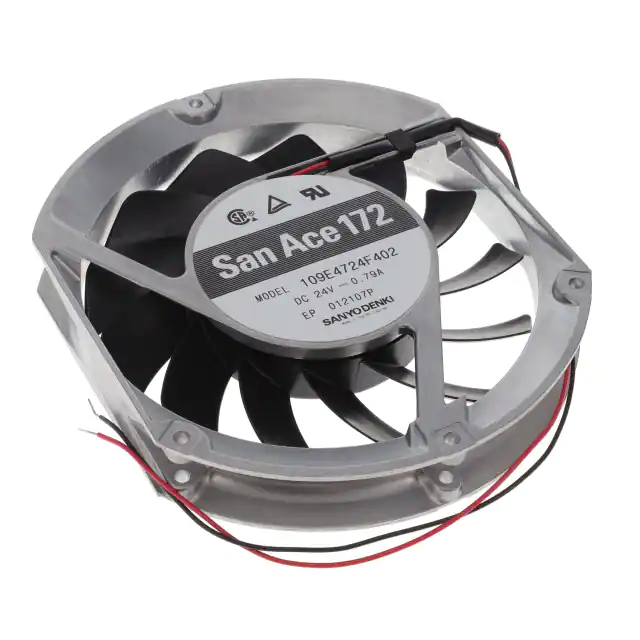

109E4724F402FAN AXIAL 172X25.4MM 24VDC WIRE |
3,985 |
|
Datasheet | San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 19 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
9WL1448P5G001FAN AXIAL 140X51MM 48VDC WIRE |
1,084 |
|
Datasheet | San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
109E5724K502FAN AXIAL 172X51MM 24VDC WIRE |
2,452 |
|
Datasheet | San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 31.2 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
9LG1424L1002FAN AXIAL 140X38MM 24VDC WIRE |
2,954 |
|
Datasheet | San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 4.1 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
|
9LG1424M1D001FAN AXIAL 140X38MM 24VDC WIRE |
4,898 |
|
Datasheet | San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
|
9LG1424L1001FAN AXIAL 140X38MM 24VDC WIRE |
4,980 |
|
Datasheet | San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 4.1 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
|
9LG1448P1A001FAN AXIAL 140X38MM 48VDC WIRE |
2,521 |
|
Datasheet | San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.16 W | 6900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
9LG1412H5002FAN AXIAL 140X51MM 12VDC WIRE |
1,787 |
|
Datasheet | San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 12 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
9LG1412H5D001FAN AXIAL 140X51MM 12VDC WIRE |
2,898 |
|
Datasheet | San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 12 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
