DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1224M4D011FAN AXIAL 119X25MM 24VDC WIRE |
3,082 |
|
Datasheet | San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.92 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9RA0912P4G001FAN AXIAL 92X25MM 12VDC WIRE |
3,900 |
|
Datasheet | San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9RA0924P4G0011FAN AXIAL 92X25MM 24VDC WIRE |
1,406 |
|
Datasheet | San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0924P4G001FAN AXIAL 92X25MM 24VDC WIRE |
1,303 |
|
Datasheet | San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
109BM12MC2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
100 |
|
Datasheet | San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 43.5dB(A) | 3.12 W | 2700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
9GV1224G401FAN AXIAL 119X25.4MM 24VDC WIRE |
2,071 |
|
Datasheet | San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|

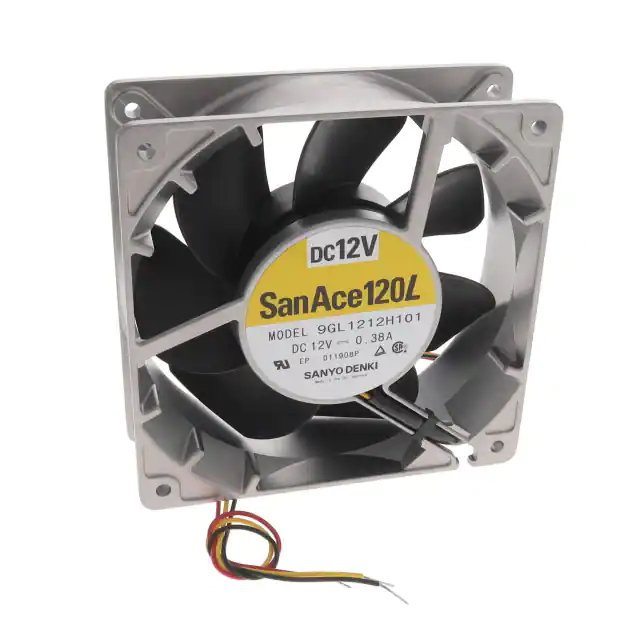

9GL1212H101FAN AXIAL 119X38MM 12VDC WIRE |
2,066 |
|
Datasheet | San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9RA0848S4001FAN AXIAL 80X25MM 48VDC WIRE |
1,465 |
|
Datasheet | San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9RA0648J4001FAN AXIAL 60X25MM 48VDC WIRE |
2,400 |
|
Datasheet | San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GL1224E101FAN AXIAL 119X38MM 24VDC WIRE |
4,750 |
|
Datasheet | San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
