DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4020V-280-275-20FAN AXIAL 40X20MM 24VDC WIRE |
235 |
|
Datasheet | CFM-40V | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 1.08 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-6015V-247-342-20FAN AXIAL 60X15MM 24VDC WIRE |
152 |
|
Datasheet | CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 2.09 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
|
CFM-6020V-230-230FAN AXIAL 60X20MM 24VDC WIRE |
520 |
|
Datasheet | CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 21.0dB(A) | 920 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
CFM-9225V-230-340-20FAN AXIAL 92X25MM 24VDC WIRE |
1,760 |
|
Datasheet | CFM-92V | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 2.09 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|

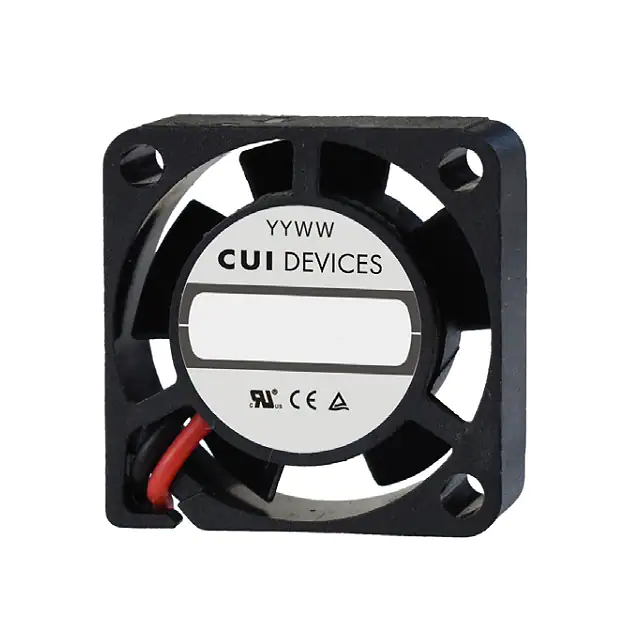

CFM-2510B-0130-275FAN AXIAL 25X10MM BALL 5VDC WIRE |
325 |
|
Datasheet | CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 27.5dB(A) | 1.15 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-0130-373FAN AXIAL 30X10.5MM 5VDC WIRE |
185 |
|
Datasheet | CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.3dB(A) | 2.55 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025BF-235-274FAN AXIAL 60X25.4MM 24VDC WIRE |
245 |
|
Datasheet | CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 27.5dB(A) | 1.44 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025B-135-364FAN AXIAL 80X25MM 12VDC WIRE |
250 |
|
Datasheet | CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 36.4dB(A) | 3.96 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225C-220-350-20FAN AXIAL 120X25.4MM 24VDC WIRE |
153 |
|
Datasheet | CFM-120C | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.8dB(A) | 4.08 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3510BF-170-222FAN AXIAL 35X10.3MM 12VDC WIRE |
133 |
|
Datasheet | CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 22.3dB(A) | 1.08 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
