DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

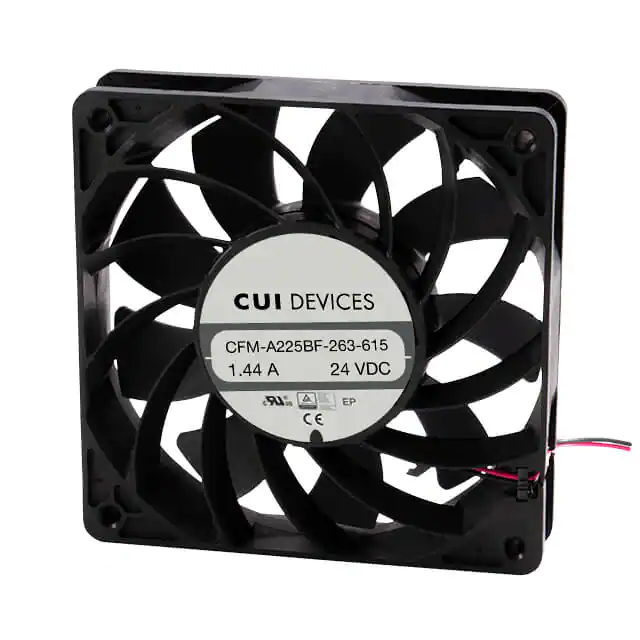

CFM-A225BF-258-597FAN AXIAL 120X25.4MM 24VDC WIRE |
1,814 |
|
Datasheet | CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 185.5 CFM (5.19m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart | 59.7dB(A) | 27.36 W | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BF-253-577-20FAN AXIAL 120X25.4MM 24VDC WIRE |
1,553 |
|
Datasheet | CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 57.8dB(A) | 19.44 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BF-163-615-20FAN AXIAL 120X25.4MM 12VDC WIRE |
2,101 |
|
Datasheet | CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 201.0 CFM (5.63m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.5dB(A) | 37.92 W | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF68-265-535DC AXIAL FAN, 92 MM SQUARE, 38 M |
2,603 |
|
Datasheet | CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 10.8 W | 6500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF68-165-535-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
2,677 |
|
Datasheet | CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.4 W | 6500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF68-295-628-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,907 |
|
Datasheet | CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.8dB(A) | 22.8 W | 9500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
BF.jpg)
|
CFM-A225BF-163-615-22FAN AXIAL 120X25.4MM 12VDC WIRE |
4,870 |
|
Datasheet | CFM-120BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 201.4 CFM (5.64m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 37.92 W | 6300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BF-263-615-22FAN AXIAL 120X25.4MM 24VDC WIRE |
3,651 |
|
Datasheet | CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 201.4 CFM (5.64m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 29.76 W | 6300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BF-153-577-22FAN AXIAL 120X25.4MM 12VDC WIRE |
2,646 |
|
Datasheet | CFM-120BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.8dB(A) | 22.44 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238BF-280-680FAN AXIAL 120X38MM 24VDC WIRE |
4,104 |
|
Datasheet | CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 263.3 CFM (7.37m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Auto Restart | 68.1dB(A) | 70.56 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
