DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8020BF-135-346FAN AXIAL 80X20MM 12VDC WIRE |
127 |
|
Datasheet | CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 34.7dB(A) | 1.8 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010-13-20FAN AXIAL 40X10.6MM 12VDC WIRE |
1,679 |
|
Datasheet | CFM-40 | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.60mm | 10.0 CFM (0.280m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 1.56 W | 8300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.032 lb (14.51 g) |
|
CFM-9225B-225-317-20FAN AXIAL 92X25MM 24VDC WIRE |
131 |
|
Datasheet | CFM-92B | Box | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.7dB(A) | 1.92 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020BF-245-401FAN AXIAL 80X20MM 24VDC WIRE |
346 |
|
Datasheet | CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 40.2dB(A) | 4.32 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4015B-1135-415DC AXIAL FAN, 40 MM SQUARE, 15 M |
304 |
|
Datasheet | CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 15.8 CFM (0.442m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart | 41.5dB(A) | 3.6 W | 13500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

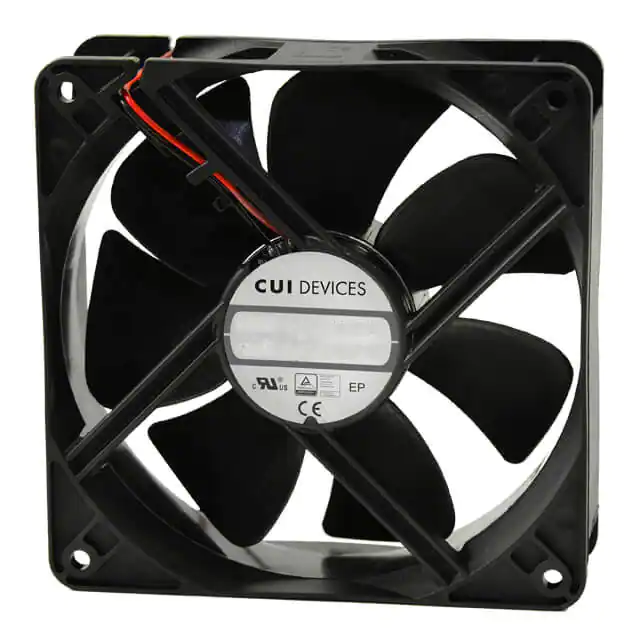

CFM-A238V-131-480FAN AXIAL 120X38MM 12VDC WIRE |
3,821 |
|
Datasheet | CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 11.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
CFM-A225B-015-287FAN AXIAL 120X25.4MM 5VDC WIRE |
194 |
|
Datasheet | CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 24.8dB(A) | 1.2 W | 1500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010B-250-195FAN AXIAL 40X10.5MM 24VDC WIRE |
727 |
|
Datasheet | CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart | 19.5dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225B-115-287-20FAN AXIAL 120X25.4MM 12VDC WIRE |
240 |
|
Datasheet | CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.8dB(A) | 2.76 W | 1500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

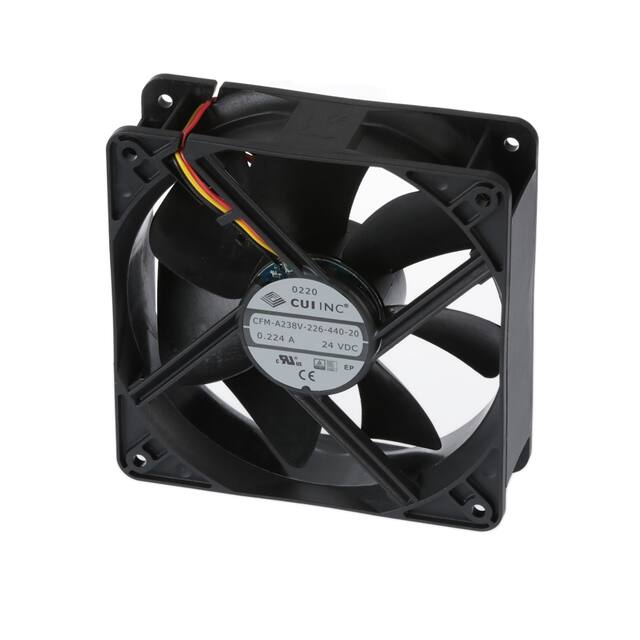

CFM-A238V-226-440-20FAN AXIAL 120X38MM 24VDC WIRE |
817 |
|
Datasheet | CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 6.18 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
