DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

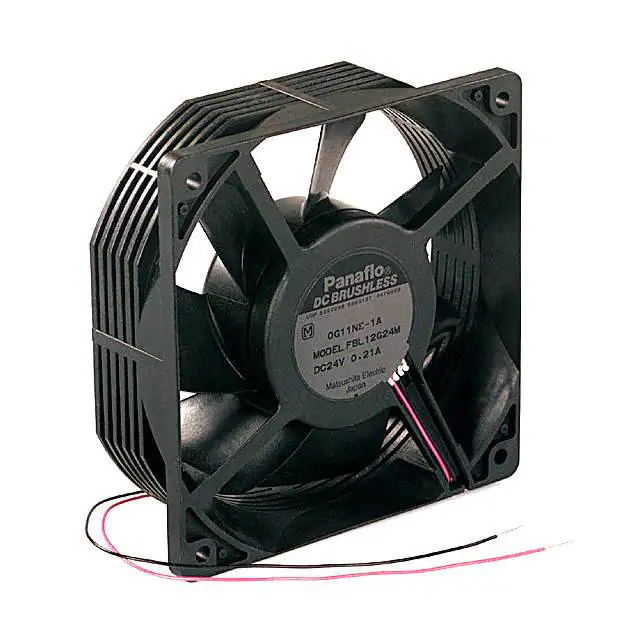

FBL12G24M1AFAN AXIAL 120X38MM 24VDC WIRE |
1,158 |
|
Datasheet | FBL | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 86.5 CFM (2.42m³/min) | 0.189 in H2O (47.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.5dB | 2.98 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.595 lb (269.89 g) |
|
3610VL-05W-B30-B00FAN AXIAL 92X25MM 24VDC WIRE |
4,275 |
|
Datasheet | 09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 38.5dB(A) | 3.36 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
BG0702-B045-00L-00FAN BLOWER 75.7X25MM 12VDC WIRE |
4,725 |
|
Datasheet | BG | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.5 CFM (0.266m³/min) | 0.614 in H2O (153.0 Pa) | Ball | Blower | Locked Rotor Sensor | 43.0dB | 3 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|

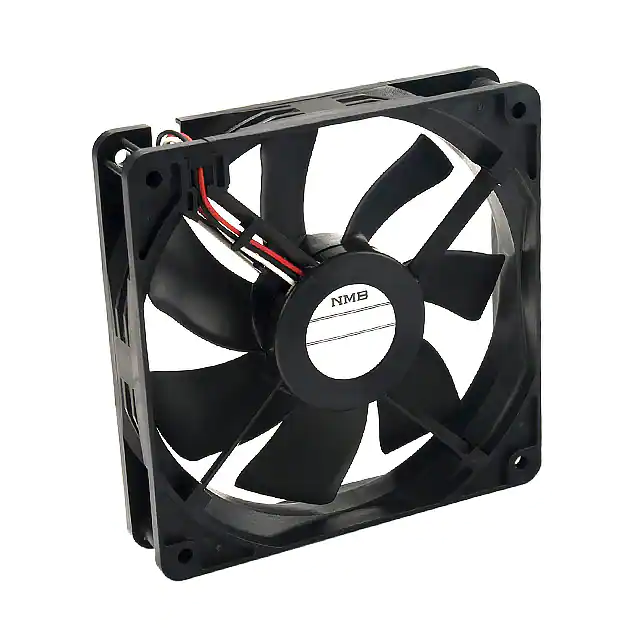

11925SA-12N-AL-00FAN AXIAL 119X25MM 12VDC WIRE |
3,236 |
|
Datasheet | 11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB | 2.88 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
|
11925SA-12N-EA-00FAN AXIAL 119X25MM 12VDC WIRE |
4,219 |
|
Datasheet | 11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 37.0dB | 2.88 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
|
3610VL-04W-B50-E00FAN AXIAL 92X25MM 12VDC WIRE |
4,866 |
|
Datasheet | 09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
3610VL-05W-B79-B50FAN AXIAL 92X25MM 24VDC WIRE |
4,702 |
|
Datasheet | 09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 9.12 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
4715KL-07W-B39-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
2,682 |
|
Datasheet | 11938KA | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB | 7.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
BG0903-B054-00L-00FAN BLOWER 97X33MM 24VDC WIRE |
4,098 |
|
Datasheet | 09533GA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | Blower | Locked Rotor Sensor | 54.5dB | 11.8 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
BG0903-B054-000-00FAN BLOWER 97X33MM 24VDC WIRE |
1,005 |
|
Datasheet | 09533GA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | Blower | - | 54.5dB | 11.8 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
