DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

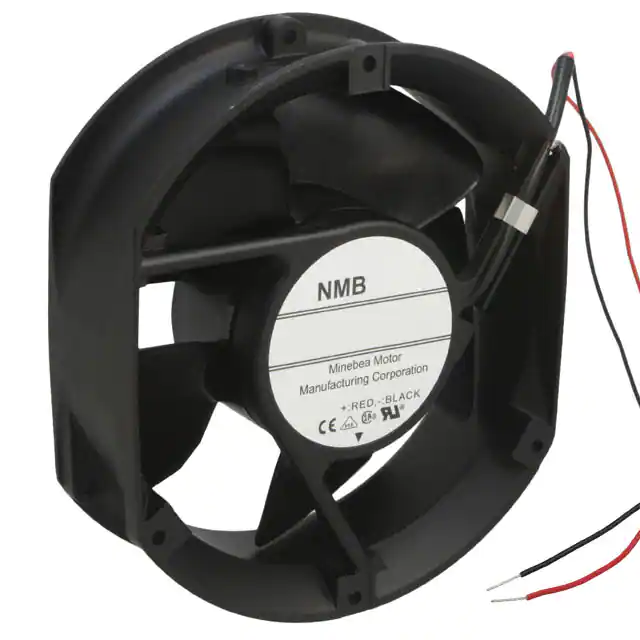

5920PL-05W-B10-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,903 |
|
Datasheet | 5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 8.64 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-05W-B20-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
2,437 |
|
Datasheet | 5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 200.0 CFM (5.60m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 53.0dB | 11 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-05W-B30-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,479 |
|
Datasheet | 5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | - | 55.0dB | 13.2 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-05W-B70-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
3,083 |
|
Datasheet | 5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 63.2dB | 25.9 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B10-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
1,980 |
|
Datasheet | 5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 8.64 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
5920PL-07W-B20-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,649 |
|
Datasheet | 5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 200.0 CFM (5.60m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 53.0dB | 11 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B30-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,308 |
|
Datasheet | 5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | - | 55.0dB | 13 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B40-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
4,593 |
|
Datasheet | 5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-07W-B70-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
4,042 |
|
Datasheet | 5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 63.2dB | 24.5 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-04W-B10-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
1,433 |
|
Datasheet | 6820PL | Bulk | Obsolete | 12VDC | Round - 172mm Dia | 50.80mm | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | - | 50.0dB | 9.6 W | 2550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
