DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4712KL-04W-B50-P00FAN AXIAL 119X32MM 12VDC WIRE |
1,519 |
|
Datasheet | 4712KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.373 in H2O (93.0 Pa) | Ball | Tubeaxial | - | 50.5dB | 10.2 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
4715SL-04W-B50-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
2,117 |
|
Datasheet | 4715SL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | - | 56.5dB | 17.5 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
4715SL-05W-B50-D00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,028 |
|
Datasheet | 4715SL | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | - | 56.5dB | 17.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|

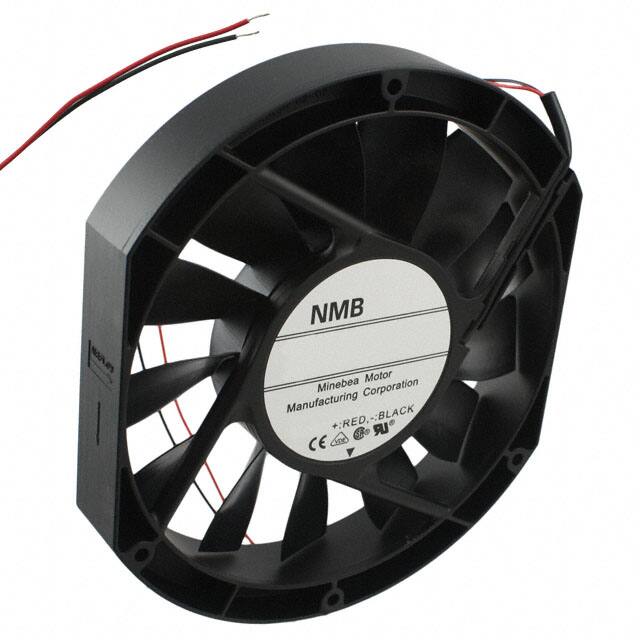

15025PA-12N-AA-00FAN AXIAL 172X25.4MM 12VDC WIRE |
1,789 |
|
Datasheet | 5910PL | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 250.0 CFM (7.00m³/min) | 0.657 in H2O (163.7 Pa) | Ball | Tubeaxial | - | 62.5dB | 24.7 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
5920PL-04W-B40-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
4,862 |
|
Datasheet | 5920PL | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 17.3 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-05W-B40-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,943 |
|
Datasheet | 5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|

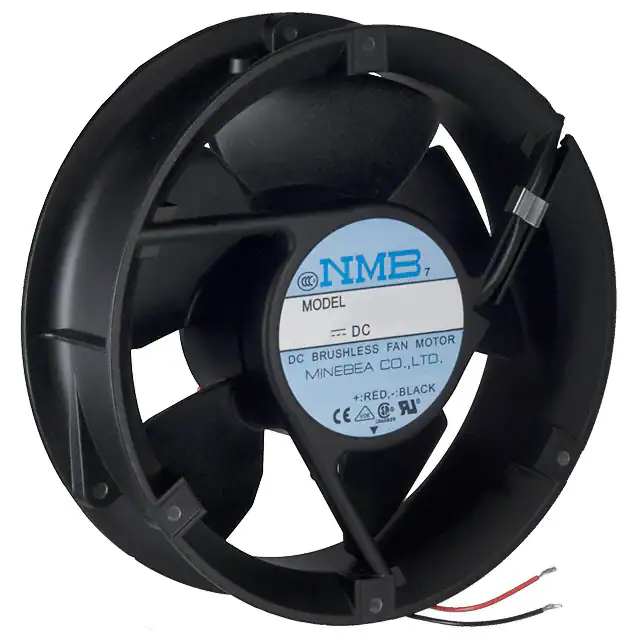

6820PL-04W-B40-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
2,128 |
|
Datasheet | 6820PL | Bulk | Obsolete | 12VDC | Round - 172mm Dia | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 17.3 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B40-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
3,813 |
|
Datasheet | 6820PL | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B40-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,681 |
|
Datasheet | 6820PL | Bulk | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
BM5115-04W-B40-L00FAN BLOWER 51X15MM 12VDC WIRE |
1,967 |
|
Datasheet | BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Blower | - | 35.0dB | 1.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
