AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

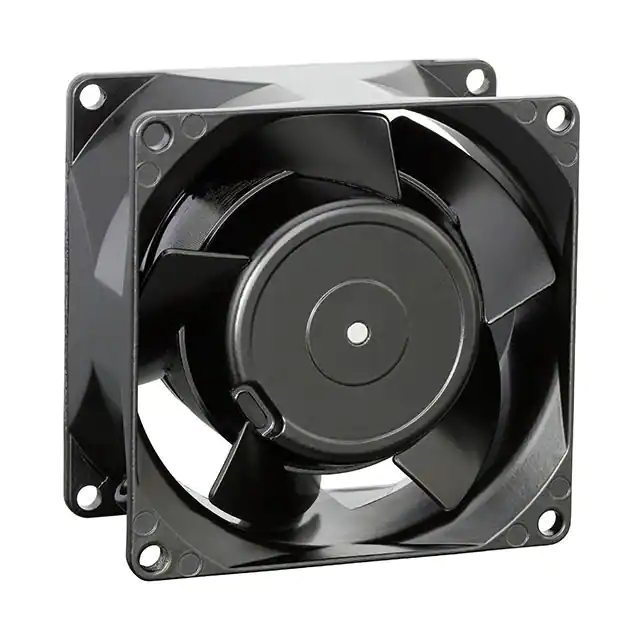

8556NFAN AXIAL 80X38MM 230VAC WIRE |
2,536 |
|
Datasheet | 8000N | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 29.4 CFM (0.823m³/min) | - | Ball | Tubeaxial | - | 31.0dB(A) | 12.00W | 2800 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
8526VWR-686FAN AXIAL 80X38MM |
3,335 |
|
Datasheet | 8526 | Bulk | Active | 24VAC | Square - 80mm L x 80mm H | 38.00mm | 27.7 CFM (0.776m³/min) | - | Ball | Tubeaxial | - | 31.0dB(A) | 12.00W | 2800 RPM | 2 Wire Leads | IP20 | -4 ~ 194°F (-20 ~ 90°C) | - | - |
|

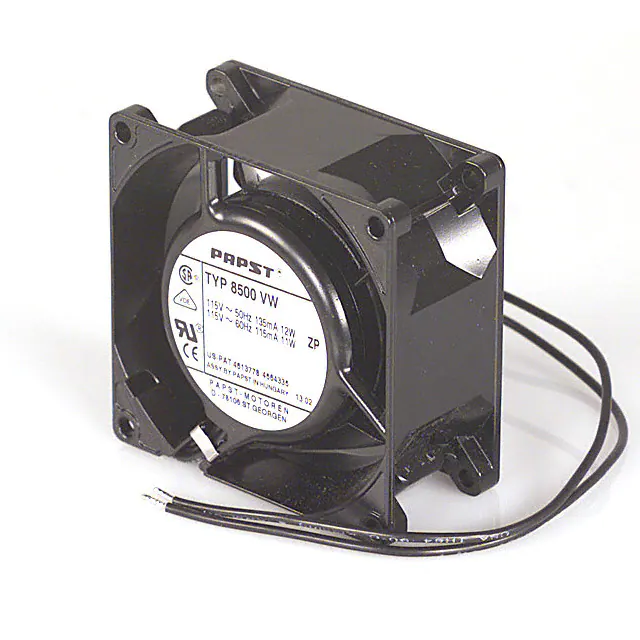

8500VWFAN AXIAL 80X38MM 115VAC WIRE |
393 |
|
Datasheet | 8000V | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 36.0 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 34.0dB(A) | 11.00W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
55416.27250CROSSFLOW BLOWER 115VAC, 46W |
501 |
|
Datasheet | QLN65 | Bulk | Active | 115VAC | Rectangular - 271mm L x 90mm H | 108.4mm | - | - | - | Blower | - | - | 46.00W | - | 2 Terminals | - | - | - | - |
|
RG125-19/06FAN BLWR FLATPAK 180X40MM 115VAC |
346 |
|
Datasheet | RG125 | Box | Active | 115VAC | Square - 180mm L x 180mm H | 40.00mm | 55.3 CFM (1.55m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 19.00W | 2750 RPM | 2 Wire Leads | - | -22 ~ 176°F (-30 ~ 80°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|

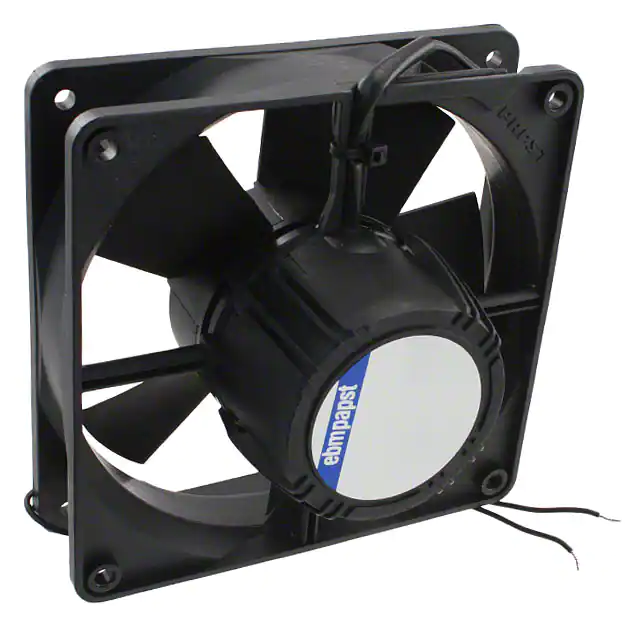

AC4300HFAN AXIAL 119X32MM 85/265VAC |
150 |
|
Datasheet | Green Tech ACmaxx, AC4300 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 32.00mm | 120.0 CFM (3.36m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 51.0dB(A) | 11.00W | 3400 RPM | 2 Wire Leads | IP21 | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.716 lb (324.77 g) |
|

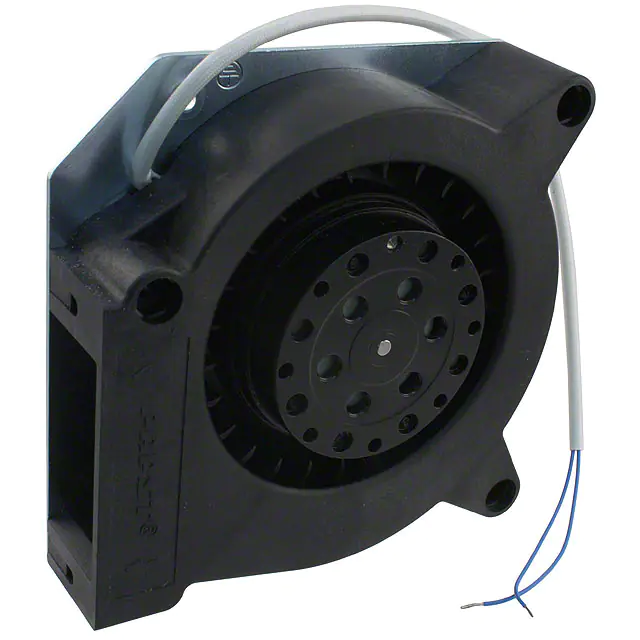

RL90-18/06FAN BLWR FLATPAK 121X37MM 115VAC |
1,365 |
|
Datasheet | RL90N | Box | Active | 115VAC | Square - 121mm L x 121mm H | 37.00mm | 24.7 CFM (0.692m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 19.50W | 2550 RPM | 2 Wire Leads | - | -22 ~ 185°F (-30 ~ 85°C) | - | 1.5 lbs (680.4 g) |
|
RL90-18/56FAN BLWR FLATPAK 121X37MM 230VAC |
133 |
|
Datasheet | RL90 | Box | Active | 230VAC | Square - 121mm L x 121mm H | 37.00mm | 23.5 CFM (0.658m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 20.00W | 2450 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|
|
RG125-19/56FAN BLWR FLATPAK 180X40MM 230VAC |
4,207 |
|
Datasheet | RG125 | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 40.00mm | 50.6 CFM (1.42m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 20.00W | 2550 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|
R2E190-RA26-20190 MM AC CENTRIFUGAL FAN |
176 |
|
Datasheet | RadiCal® R2E190RA | Bulk | Active | 230VAC | Round - 190mm Dia | 68.50mm | 347.3 CFM (9.72m³/min) | - | Ball | Motorized Impellers | - | 68.0dB(A) | 70.0W | 2500 RPM | 4 Wire Leads | IP44 | -13 ~ 167°F (-25 ~ 75°C) | UL | 2.6 lbs (1.2 kg) |
