AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8800NFAN AXIAL 80X38MM 115VAC WIRE |
3,221 |
|
Datasheet | 8000N | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 27.7 CFM (0.776m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 11.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
3500FAN AXIAL 92X38MM 115VAC WIRE |
4,912 |
|
Datasheet | 3000 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 43.0 CFM (1.20m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 8.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
|
3506FAN AXIAL 92X38MM 115VAC WIRE |
1,896 |
|
Datasheet | 3000 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 43.0 CFM (1.20m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 8.00W | 2500 RPM | 2 Wire Leads | - | -40 ~ 203°F (-40 ~ 95°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
4500NFAN AXIAL 119X38MM 115VAC TERM |
1,746 |
|
Datasheet | 4000N | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | - | Sintec | Tubeaxial | - | 48.0dB(A) | 15.00W | 3000 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4530NFAN AXIAL 119X38MM 115VAC TERM |
2,044 |
|
Datasheet | 4000N | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 88.8 CFM (2.49m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 16.00W | 2700 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
4600TZFAN AXIAL 108X37MM 115VAC WIRE |
3,979 |
|
Datasheet | 4600TZ | Bulk | Obsolete | 115VAC | Round - 108mm Dia | 37.00mm | 82.4 CFM (2.31m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 18.00W | 2950 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|

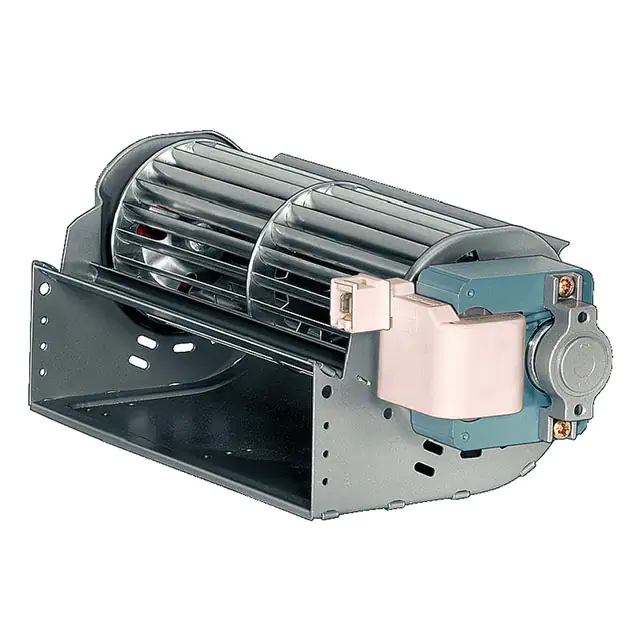

55410.91162FAN BLWR CF 180X96MM 115VAC TERM |
4,766 |
|
Datasheet | QLZ06 | Bulk | Obsolete | 115VAC | Rectangular - 260mm L x 83mm H (60mm Dia) | 96.00mm | 63.0 CFM (1.76m³/min) | - | Sleeve | Blower, Cross Flow | - | 49.0dB(A) | 29.00W | - | 2 Terminals | - | - | - | - |
|
55416.17070FAN BLOWER CF 122X108MM 115VAC |
2,895 |
|
Datasheet | QLN65 | Bulk | Obsolete | 115VAC | Rectangular - 196mm L x 90mm H (65mm Dia) | 108.0mm | 75.0 CFM (2.10m³/min) | - | Sleeve | Blower, Cross Flow | - | 49.0dB(A) | 39.00W | - | Terminal Block | - | - | - | - |
|
|
55416.30130FAN BLWR CF 240X108MM 115VAC |
3,175 |
|
Datasheet | QLN65 | - | Obsolete | 115VAC | Rectangular - 331mm L x 90mm H (65mm Dia) | 108.0mm | 129.0 CFM (3.61m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 55.0W | 1500 RPM | Terminal Block | - | - | - | 3.2 lbs (1.5 kg) |
|
|
55416.32021FAN BLWR CF 240X108MM 115VAC |
2,190 |
|
Datasheet | QLN65 | - | Obsolete | 115VAC | Rectangular - 331mm L x 90mm H (65mm Dia) | 108.0mm | 129.0 CFM (3.61m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 55.0W | 1500 RPM | Terminal Block | - | - | - | 3.2 lbs (1.5 kg) |
