AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17002187ACRB250B1B1650 AC CENTRIFUGAL FAN |
2,677 |
|
Datasheet | - | Box | Active | 110/120VAC | Round - 250mm Dia | 90.00mm | 415.0 CFM (11.62m³/min) | 0.960 in H2O (239.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | 50.0W | 1650 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | CE, UL | - |
|
|
17002186ACRB250A1B3000 AC CENTRIFUGAL FAN |
4,120 |
|
Datasheet | - | Box | Active | 110/120VAC | Round - 250mm Dia | 99.00mm | 735.0 CFM (20.58m³/min) | 3.270 in H2O (814.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 72.0dB(A) | 180W | 3000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | CE, UL | - |
|
|
17002188ACRB280A1B1550 AC CENTRIFUGAL FAN |
3,571 |
|
Datasheet | - | Box | Active | 110/120VAC | Round - 250mm Dia | 99.00mm | 735.0 CFM (20.58m³/min) | 3.270 in H2O (814.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 72.0dB(A) | 180W | 3000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | CE, UL | - |
|

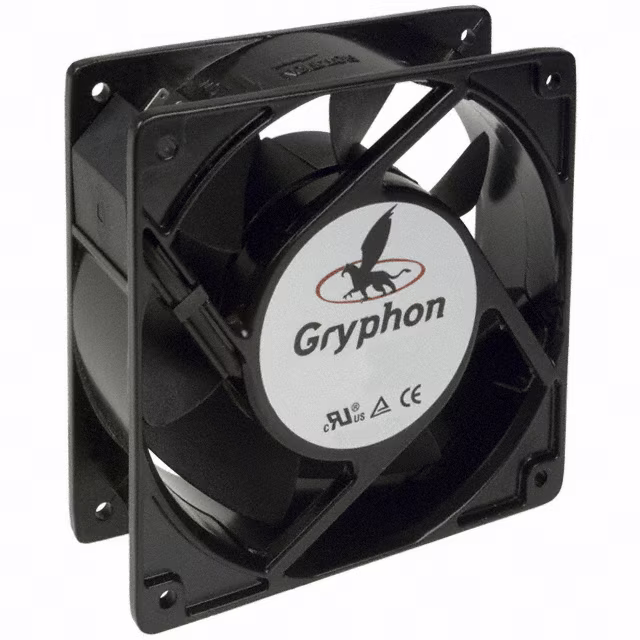

GAA1238-115BBFAN AXIAL 120X38MM 115VAC TERM |
1,742 |
|
Datasheet | Gryphon | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 111.0 CFM (3.11m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 24.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|

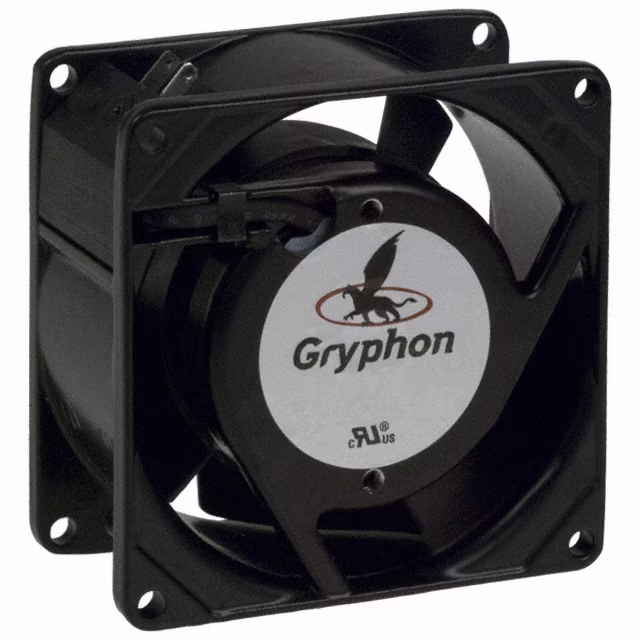

GAA8038-115BBFAN AXIAL 80X38MM 115VAC TERM |
1,390 |
|
Datasheet | Gryphon | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 29.0 CFM (0.812m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 14.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.75 lb (340.19 g) |
|
|
GAA1238-230BBFAN AXIAL 120X38MM 230VAC TERM |
3,782 |
|
Datasheet | Gryphon | - | Obsolete | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 111.0 CFM (3.11m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 10.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|

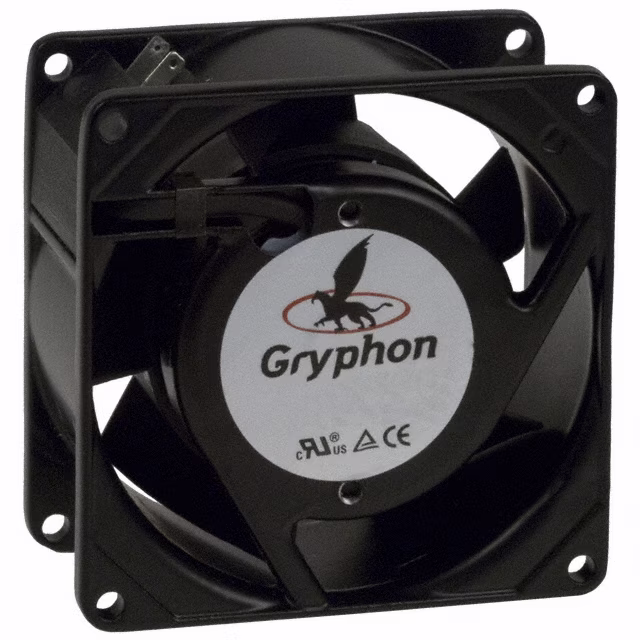

GAA8038-230BBFAN AXIAL 80X38MM 230VAC TERM |
4,354 |
|
Datasheet | Gryphon | - | Obsolete | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 29.0 CFM (0.812m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 10.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.75 lb (340.19 g) |
|

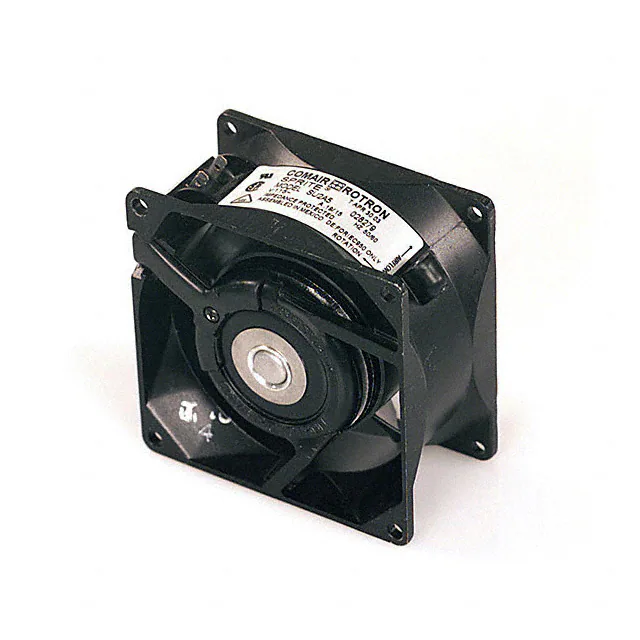

19028279AFAN AXIAL 80X42MM 115VAC SU2A5 |
4,567 |
|
Datasheet | Sprite AC | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 42.00mm | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | Tubeaxial | - | 40.3dB(A) | 11.00W | 3250 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
|
19028326AFAN AXIAL 119.1X39.1MM MX3A1 |
4,331 |
|
Datasheet | Muffin XL AC | Box | Obsolete | 220VAC | Square - 120mm L x 120mm H | 39.10mm | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.3 lbs (589.7 g) |
|

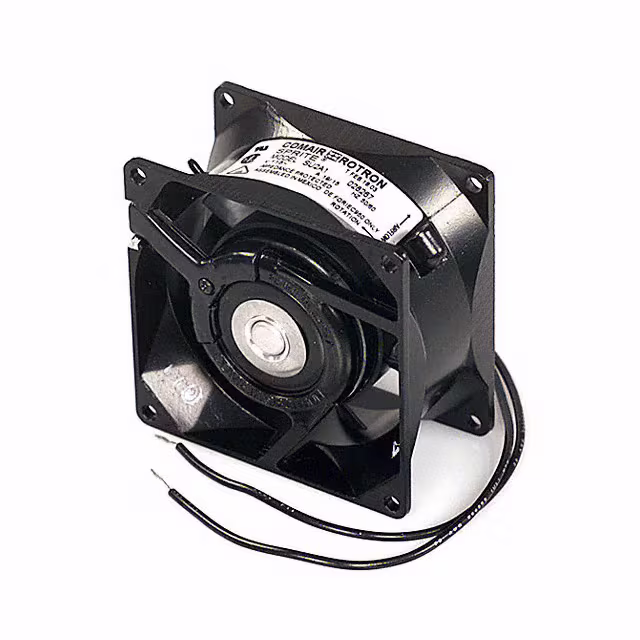

19028267AFAN AXIAL 80X42MM 115VAC SU2A1 |
3,244 |
|
Datasheet | Sprite AC | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 42.00mm | 34.0 CFM (0.952m³/min) | 0.149 in H2O (37.1 Pa) | Sleeve | Tubeaxial | - | 40.3dB(A) | 11.00W | 3250 RPM | 2 Wire Leads | - | - | - | 1.1 lbs (499.0 g) |
