AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA280LFG111TFAN AXIAL 323X141.5MM 115VAC |
1,888 |
|
Datasheet | OA280LFG | Box | Active | 115VAC | Square - 320mm L x 320mm H | 141.5mm | 1130.0 CFM (31.64m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 70.0dB | 148W | 2700 RPM | Terminal Block | - | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|
OA80AP-11-1WSFAN AXIAL 80X38MM 115VAC WIRE |
2,750 |
|
Datasheet | OA80 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | - | 36.0dB | 9.00W | 3000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | - |
|

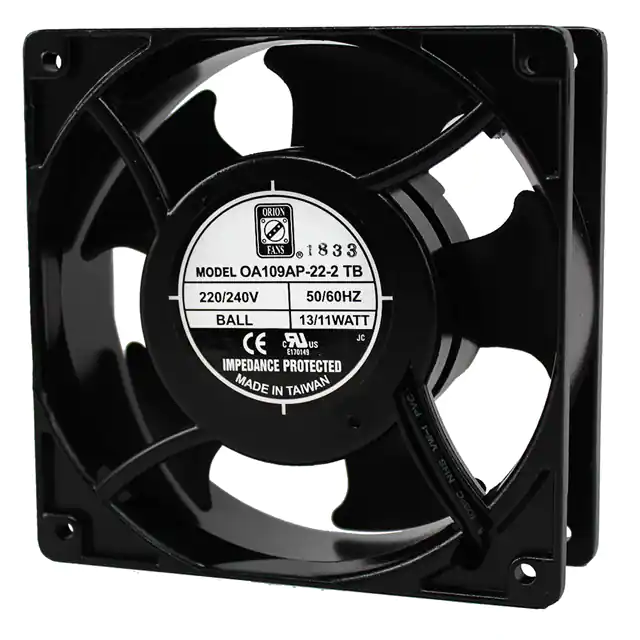

OA109AP-22-2TBFAN AXIAL 120X38MM 230VAC TERM |
3,870 |
|
Datasheet | OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 38.50mm | 71.0 CFM (1.99m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 35.0dB | 11.00W | 2300 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | 1.2 lbs (544.3 g) |
|
OA125AP-11-1WBFAN AXIAL 119.5X26.2MM 115VAC |
3,623 |
|
Datasheet | OA125 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 42.0dB | 11.00W | 2900 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.73 lb (331.12 g) |
|

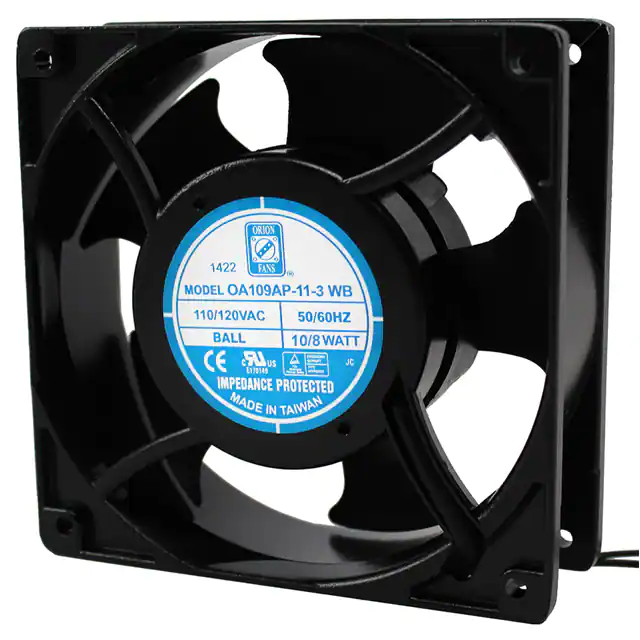

OA109AP-11-3WBFAN AXIAL 120X38MM 115VAC WIRE |
2,726 |
|
Datasheet | OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.50mm | 51.0 CFM (1.43m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 25.0dB | 8.00W | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | 1.2 lbs (544.3 g) |
|
OA125AP-22-1TBFAN AXIAL 119.5X26.2MM 230VAC |
2,102 |
|
Datasheet | OA125 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 42.0dB | 14.00W | 2900 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.73 lb (331.12 g) |
|
OA80AP-22-1TBFAN AXIAL 80X38MM 230VAC TERM |
4,565 |
|
Datasheet | OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 36.0dB | 12.00W | 3000 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OA80AP-11/22-1WBFAN AXIAL 80X38MM 115/230VAC |
2,808 |
|
Datasheet | OA80 | Box | Active | 115/230VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Dual Voltage | 29.0dB | 12.00W | 3000 RPM | 4 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

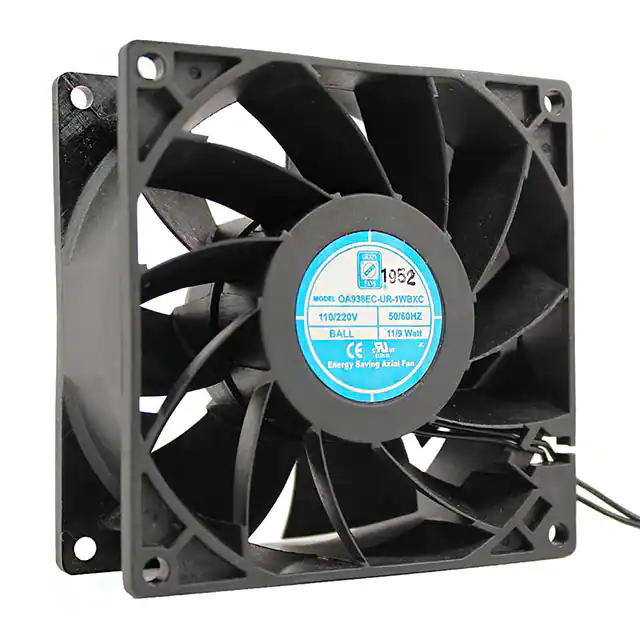

OA938EC-UR-1WBXCEC FAN 92X38MM 85-265VAC 88CFM |
1,766 |
|
Datasheet | OA938EC XC | Box | Active | 110/220VAC | Square - 92mm L x 92mm H | 38.00mm | 88.0 CFM (2.46m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 52.0dB | 7.90W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.420 lb (190.51 g) |
|
|
OAB800AN-11-1WBFAN BLOWER 125X39MM 115VAC WIRE |
1,794 |
|
Datasheet | OAB800AN | Box | Active | 115VAC | Rectangular/Rounded - 125mm L x 126mm H | 39.00mm | 30.0 CFM (0.840m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Blower | - | 48.0dB | 18.00W | 2800 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 1.2 lbs (544.3 g) |
