Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AG040BADL021 BATTERY POWERED DEMO BRD |
1,911 |
|
Datasheet | - | Bag | Active | Magnetic, GMR (Giant Magnetoresistive) | - | Digital | - | 2.4V ~ 3.6V | - | Board(s) | ADL021-14E |
|
53L0-SATEL-I1SATELLITE BOARD VL53L0X |
3,270 |
|
Datasheet | - | Bulk | Active | Light, 3D Time-of-Flight (ToF) | - | I2C | - | - | - | Board(s) | VL53L0X |
|

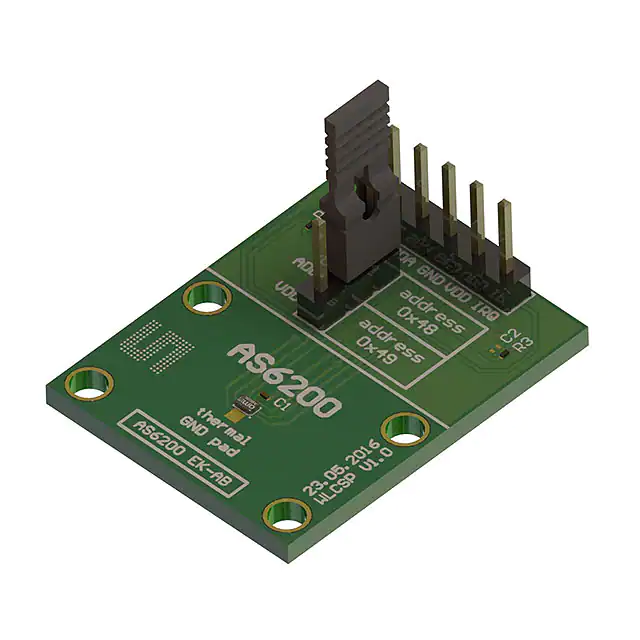

AS6200-WL_EK_ABADAPTER BOARD FOR AS6200 |
2,216 |
|
Datasheet | - | Bulk | Active | Temperature | -40°C ~ 125°C | I2C | ±0.4°C ~ ±1°C | 1.8V ~ 3.6V | - | Board(s) | AS6200 |
|
DIGIPILE SMD ADAPTERBOARD INCL. TPIS 1S 1051BOARD TO BE CONNECTD TO DEMO KIT |
4,346 |
|
Datasheet | DigiPile™ | Box | Active | Infrared | - | - | - | 2.4V ~ 3.6V | - | Board(s) | TPIS 1S 1051 |
|
AS6212 EVAL KITAS6212 EVAL KIT |
2,084 |
|
Datasheet | - | Box | Active | Temperature | - | I2C | - | 1.71V ~ 3.6V | No | Board(s) | AS6212 |
|
SEN-12784SPARKFUN TOF RANGE FINDER BREAKO |
3,613 |
|
Datasheet | FlightSense™ | Bulk | Active | Light, 3D Time-of-Flight (ToF) | - | I2C | - | 2.8V | - | Board(s) | VL6180X |
|
|
EVB90392_BK_010EVAL BRKOUT 90392ELQAAA-010 1.8V |
4,520 |
|
Datasheet | Triaxis® | Box | Active | Magnetic, Magnetometer | ±5mT | I2C | 0.15µT/LSB | 1.8V | No | Board(s) | MLX90392 |
|
|
EVB90392_BK_011EVAL BRKOUT 90392ELQAAA-011 1.8V |
3,627 |
|
Datasheet | Triaxis® | Box | Active | Magnetic, Magnetometer | ±50mT | I2C | 1.5µT/LSB | 1.8V | No | Board(s) | MLX90392 |
|
TMP1075EVMEVAL MODULE FOR TMP1075 |
1,641 |
|
Datasheet | - | Bulk | Active | Temperature | -55°C ~ 125°C | I2C, SMBus, USB | ±1°C | 5V, USB | - | Board(s) | TMP1075 |
|
EVAL-ADT7310MBZMINI TEMP SENSOR BRD |
4,382 |
|
Datasheet | - | Bulk | Active | Temperature | - | SPI | ±0.5°C | - | No | Board(s) | ADT7310 |
|
EVAL-ADT7410MBZMINI TEMP SENSOR BRD |
2,658 |
|
Datasheet | - | Bulk | Active | Temperature | - | I2C | ±0.5°C | - | No | Board(s) | ADT7410 |
|
EVB90333-DCBOARD EVALUATION FOR MLX90333XDC |
4,545 |
|
Datasheet | Triaxis® | Box | Active | Magnetic, Linear Position | - | Analog | - | 4.5V ~ 5.5V | - | Board(s) | MLX90333 |
|
|
EVB90392_DVK_010DEV 392 010 FOR TRIAXISDEMO 3.3V |
2,140 |
|
Datasheet | Triaxis® | Box | Active | Magnetic, Magnetometer | ±5mT | I2C | 0.15µT/LSB | 1.8V | No | Board(s) | MLX90392 |
|
|
EVB90380 END OF SHAFT - REV1.0EVAL 90380 ON-AXIS ROTATION |
4,362 |
|
- |
Triaxis® | Box | Active | Magnetic, Rotary Position | 10mT ~ 70mT | Analog | - | 3.135V ~ 3.6V, 4.5V ~ 5.5V | No | Board(s) | MLX90380 |
|
|
EVB90392_DVK_011DEV 392 011 FOR TRIAXISDEMO 3.3V |
1,503 |
|
Datasheet | Triaxis® | Box | Active | Magnetic, Magnetometer | ±50mT | I2C | 1.5µT/LSB | 1.8V | No | Board(s) | MLX90392 |
|
|
EVB90371-GGO-300-REV1.0EVAL 90371 NON STRAYFIELD DUALDI |
3,677 |
|
- |
Triaxis® | Box | Active | Magnetic, Linear, Rotary Position | 10mT ~ 70mT | Analog, PWM | - | 4.5V ~ 5.5V | No | Board(s) | MLX90371 |
|
|
EVB90372-GGO-100-REV1.0EVAL 90372 ROTRY/STRAYFIELD DUAL |
4,873 |
|
- |
Triaxis® | Box | Active | Magnetic, Linear, Rotary Position | 10mT/mm | PWM | - | 4.5V ~ 5.5V | No | Board(s) | MLX90372 |
|
EVB90316-GOBOARD EVAL FOR MLX90316-GO |
3,576 |
|
Datasheet | Triaxis® | Box | Active | Magnetic, Rotary Position | 360° | Serial | - | 4.5V ~ 5.5V | Yes, Other | Board(s), Accessories | MLX90316 |
|
|
EVB90371-GGO-100-REV1.0EVAL 90371 ROTRY/STRAYFIELD DUAL |
2,001 |
|
- |
Triaxis® | Box | Active | Magnetic, Linear, Rotary Position | 10mT/mm | Analog, PWM | - | 4.5V ~ 5.5V | No | Board(s) | MLX90371 |
|
|
EVB90372-GDC-200-REV1.0EVAL 90372 LINEAR/STRAY-FIELD |
2,276 |
|
- |
Triaxis® | Box | Active | Magnetic, Linear, Rotary Position | 10mT/mm | PWM | - | 4.5V ~ 5.5V | No | Board(s) | MLX90372 |
